MLA-B6
Motor Type: Brush
Rated Voltage: 24V
Max Load: 6,000N
Max Speed: 75mm/s
Max Stroke: 650mm
Limit Switches: Internal
Feedback: None
Blog
MLA-33P
Motor Type: Brush
Rated Voltage: 12 ~ 48VDC
Max Load: 7,000N
Max Speed: 35mm/s
Max Stroke: 1,000mm
Limit Switches: Internal
Position Feedback Available: Endstop Signal, Hall Sensor, Reed Switches
MLA-HDA
Electro Hydraulic Linear Actuator
Motor Type: Brush
Rated Voltage: 12 ~ 48VDC
Max Load: 8,000N
Max Speed: 16mm/s
Max Stroke: 350mm
MLA-JL-02
Motor Type: Brushed / Brushless
Rated Voltage: 220 ~ 380VAC / 24 ~ 48VDC
Max Load: 8,000N
Max Speed: 74mm/s
Max Stroke: 800mm
Limit Switches: External
Synchronization Capability: Up to 5 Motors
MLA-C
Motor Type: Brush
Rated Voltage: 12 ~ 48VDC
Max Load: 10,000N
Max Speed: 35mm/s
Max Stroke: 1,000mm
Limit Switches: Internal
Overload Protection: Clutch, Thermistor
Position Feedback Available: Endstop Signal, Hall Sensor, Potentiometer, Reed Switches
MLA-G
Motor Type: Brush
Rated Voltage: 12 ~ 48VDC
Max Load: 12,000N
Max Speed: 38mm/s
Max Stroke: 1,000mm
Limit Switches: Internal
Overload Protection: Clutch
Position Feedback Available: Endstop Signal, Hall Sensor, Potentiometer, Reed Switches
MLA-G2
Motor Type: Brush
Rated Voltage: 12 ~ 48VDC
Max Load: 12,000N
Max Speed: 37mm/s
Max Stroke: 1,000mm
Limit Switches: Internal
Position Feedback Available: Hall Sensor, Potentiometer, Reed Switches
MLA-36
Motor Type: Brush
Rated Voltage: 12 ~ 48VDC
Max Load: 12,000N
Max Speed: 28mm/s
Max Stroke: 1,000mm
Limit Switches: Internal
Overload Protection: Clutch, Electronic
Feedback: Optional Endstop Signal, Hall Sensor, Potentiometer, Reed Switches

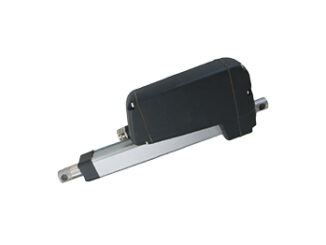

MLA-39
Motor Type: Brush
Rated Voltage: 12 ~ 48VDC
Max Load: 12,000N
Max Speed: 24mm/s
Max Stroke: 1,000mm
Limit Switches: Internal
Overload Protection: Clutch
Feedback: Optional Endstop Signal, Hall Sensor, Potentiometer, Reed Switches
MLA-35
Motor Type: Brush
Rated Voltage: 12V / 24V
Max Load: 17,000N
Max Speed: 28mm/s
Max Stroke: 1,000mm
Limit Switches: Internal
Feedback: Optional Hall Sensor
MLA-JL-01
Motor Type: Brushed / Brushless
Rated Voltage: 220 ~ 380VAC / 24 ~ 48VDC
Max Load: 20,000N
Max Speed: 100mm/s
Max Stroke: 1,000mm
Limit Switches: Internal
Synchronization Capability: Up to 4 Motors
JC35FA17
Motor Type: Brush
Rated Voltage: 24 VDC
Max Load: 1,000N
Max Speed: 7.5mm/s
Max Stroke: 300mm
Limit Switches: None
Position Feedback Available: Endstop Signal
List of Online Converter and Calculator Tools
Mach Motion has compiled a list of handy Converter and Calculator Tools that are frequently needed when configuring custom OEM applications. Visit our Tools page […]
SVP040
Frame Size: 40mm
Motor Length: 49.5 – 84.5mm
Voltage: 48VDC
Rated Torque: 0.16 – 0.32Nm
Peak Torque: 0.48 – 0.96Nm
Rated Current: 1.5 – 2.8A
Peak Current: 4.5 – 8.4A
SVP060 – 24V
Frame Size: 60mm
Motor Length: 64.5 – 101.5mm
Voltage: 24VDC
Rated Torque: 0.64 – 1.27Nm
Peak Torque: 1.92 – 3.81Nm
Rated Current: 11 – 22A
Peak Current: 32.4 – 66A
