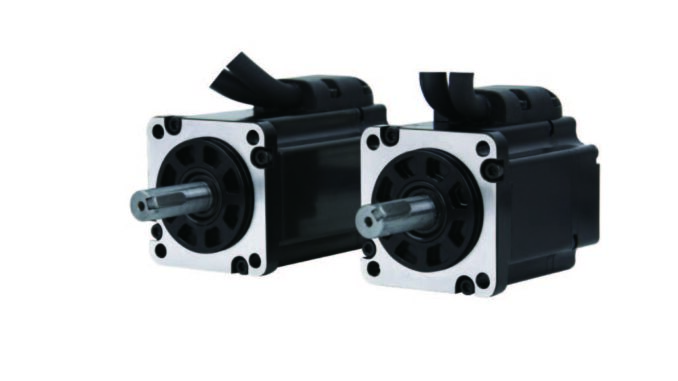

SVP is a new series of Low Voltage Servo Motors from Mach Motion Products. SVP motors were developed as a result of years of research using specialized electromagnetic design software. SVP motors feature compact size, higher efficiency, lower cogging, and better performance dynamics. SVP motors can integrate electromagnetic brakes, magnetic incremental and absolute encoders with various communication protocols. SVP motors can be used in a variety of robotic applications and battery powered systems.
Performance Data
| Specification | Unit | SVP040A(B)Q050-001 | SVP040A(B)Q100-001 |
|---|---|---|---|
| Voltage | VDC | 48 | 48 |
| Rated Power (Pw) | W | 50 | 100 |
| Rated Speed (Nn) | RPM | 3000 | 3000 |
| Rated Torque (Tn) | Nm | 0.16 | 0.32 |
| Rated Current (Im) | A | 1.5 | 2.8 |
| Peak Torque (Tm) | Nm | 0.48 | 0.96 |
| Peak Current (Im) | A | 4.5 | 8.40 |
| Resistance L-L (RI) | ohms | 3.11 | 1.48 |
| Inductance L-L (HI) | mH | 4.01 | 1.85 |
| Voltage Constant (Ke) | Vrms/Krpm | 7.19 | 7.33 |
| Torque Constant (Kt) | Nm/Arms | 0.113 | 0.115 |
| Rotor Inertia (Jm) | Kg.mm^2 | 1.77 | 3.39 |
| Poles | 10 | 10 | |
| IP Class | 54 | 54 | |
| Multi Turn Absolute Encoder | Bit | 17 | 17 |
| Brake Torque | Nm | 0.32 | 0.32 |
| Length | mm | 49.5 (70.5 w/ brake) | 63.5 (84.5 w/ brake) |
| Weight (Wm) | Kg | 0.4 (0.6 w/ brake) | 0.6 (0.8 w/ brake) |
Drawing
SVP040AQ050(100):
SVP040BQ050(100):
Speed Torque Curves
SVP040A(B)Q050:
SVP040A(B)Q100:
Downloads
Low Voltage BLDC Catalog: Low-Voltage-BLDC-Catalog-2024.pdf
