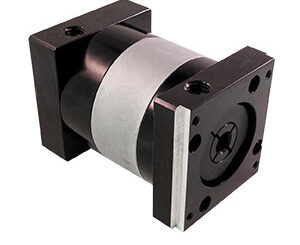

MPS-60-003-06-LMA-N23-6.35

Frame Size: 60mm
Motor Mount: NEMA 23, ø6.35mm
Nominal Torque Output: 34Nm
Stages: 1
Ratio: 3:1
Backlash: ≤6 Arcmin

MPS-60-003-06-LMA-N24-14

Frame Size: 60mm
Motor Mount: NEMA 24, ø14mm
Nominal Torque Output: 34Nm
Stages: 1
Ratio: 3:1
Backlash: ≤6 Arcmin

MPS-60-005-06-LMA-N24-14

Frame Size: 60mm
Motor Mount: NEMA 24, ø14mm
Nominal Torque Output: 46Nm
Stages: 1
Ratio: 5:1
Backlash: ≤6 Arcmin

MPS-60-007-06-LMA-N24-14

Frame Size: 60mm
Motor Mount: NEMA 24, ø14mm
Nominal Torque Output: 30Nm
Stages: 1
Ratio: 7:1
Backlash: ≤6 Arcmin

MPS-60-010-06-LMA-N23-6.35

Frame Size: 60mm
Motor Mount: NEMA 23, ø6.35mm
Nominal Torque Output: 34Nm
Stages: 1
Ratio: 10:1
Backlash: ≤6 Arcmin

MPS-60-010-06-LMA-N23-9.525

Frame Size: 60mm
Motor Mount: NEMA 23, ø9.525mm
Nominal Torque Output: 34Nm
Stages: 1
Ratio: 10:1
Backlash: ≤6 Arcmin

MPS-60-010-06-LMA-N24-14

Frame Size: 60mm
Motor Mount: NEMA 24, ø14mm
Nominal Torque Output: 18Nm
Stages: 1
Ratio: 10:1
Backlash: ≤6 Arcmin

UIM24002P

Drive Type: Step and Direction
Input Voltage: 10 – 28VDC
Output Current: 0 – 2A
Connection: Plug

UIM24008P

Drive Type: Step and Direction
Input Voltage: 12 – 40VDC
Output Current: 3 – 8A
Connection: Plug

UIM240C04P

Drive Type: Step and Direction
Input Voltage: 12 – 38VDC
Output Current: 1.5 – 4A
Connection: Plug

UIM240C08T

Drive Type: Step and Direction
Input Voltage: 12 – 38VDC
Output Current: 3 – 8A
Connection: Terminal

UIM24302AT

Drive Type: Analog / Velocity
Speed Control: Onboard Potentiometer
Input Voltage: 12 – 28VDC
Output Current: 0 – 2A
Connection: Terminal

UIM24302BT

Drive Type: Analog / Velocity
Speed Control: Voltage Input / External Pot.
Input Voltage: 12 – 28VDC
Output Current: 0 – 2A
Connection: Terminal

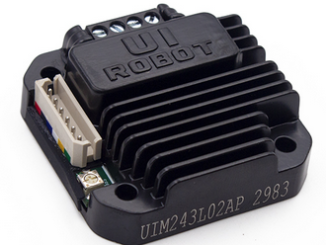

UIM243L02AP

Drive Type: Analog / Velocity
Speed Control: Onboard Potentiometer
Input Voltage: 12 – 28VDC
Output Current: 0 – 2A
Connection: Plug
