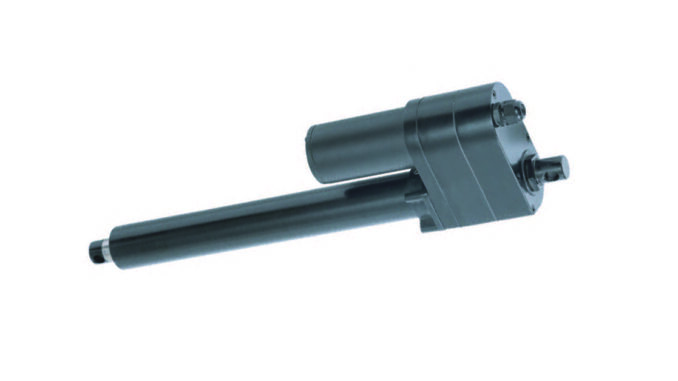

- 12 ~ 48VDC Motor
- Up to 10,000N Dynamic Load
- Clutch and Thermistor Overload Protection
- Position Feedback Available: Endstop Signal, Hall Sensor, Potentiometer
- Maximum Stroke: 1,000mm
- Protection Level: IP66 / IP69K
- Noise Level: ≤65 dB
- Color: Black
Specifications
| Code | Lead Screw | Max. Dynamic Load (N) | Max. Self Locking Load (N) | Pitch (mm) | No Load Speed (mm/s) +/-10% | Full Load Speed (mm/s) +/-10% | Max. Stroke (mm) Without Limit Switch | Max. Stroke (mm) With Limit Switch |
|---|---|---|---|---|---|---|---|---|
| A | Acme Screw | 7,000 | 10,000 | 3.17 | 5.5 | 4 | 1,000 | 380 |
| B | 7,000 | 10,000 | 5 | 8.5 | 7 | 1,000 | 610 | |
| C | 5,000 | 7,000 | 3.17 | 11 | 9.5 | 1,000 | 380 | |
| D | 4,000 | 5,500 | 5 | 17 | 14 | 1,000 | 610 | |
| E | 3,000 | 4,000 | 3.17 | 22 | 18 | 1,000 | 380 | |
| F | 2,000 | 2,800 | 5 | 35 | 28.5 | 1,000 | 610 | |
| G | Ball Screw | 10,000 | 11,000 | 5 | 8.5 | 6.5 | 1,000 | 610 |
| H | 7,000 | 8,500 | 5 | 17 | 13.5 | 1,000 | 610 | |
| I | 3,500 | 4,500 | 5 | 35 | 27 | 1,000 | 610 |
Dimensions
Unit: mm
Mounting End
Unit: mm
Performance
