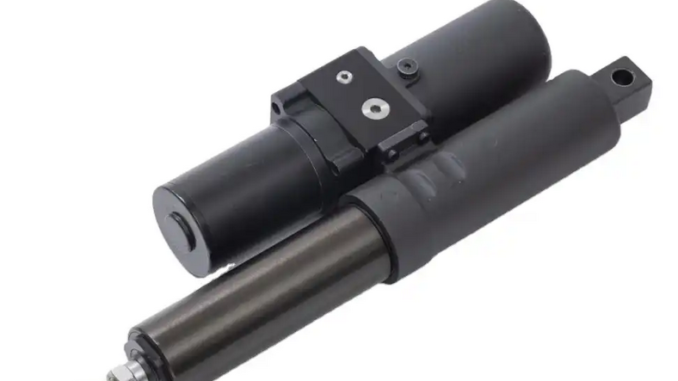

- Electro Hydraulic Linear Actuator
- Fully enclosed hydraulic system, no external hydraulic tubing
- 12 ~ 48VDC Motor
- Up to 8,000N Dynamic Load
- Fully Enclosed Hydraulic Transmission, Overflow Valve, Pressure Relief Valve
- Maximum Stroke: 350mm
- Protection Level: IP65
- Color: Black
Specifications
| Rated Voltage | Diameter | Max. Dynamic Load (N) | Max. Static Load (N) | Motor Power / RPM | Pump Pressure | Pump Displacement |
|---|---|---|---|---|---|---|
| 12 ~ 48VDC | ΓΈ38 | 8000 | 13,000 | 270w / 5000rpm | 7.1MPa | 0.33ml/rpm |
Dimensions
Unit: mm
Performance
Downloads
Catalog Download: MLA-HDA Data Sheet.pdf
