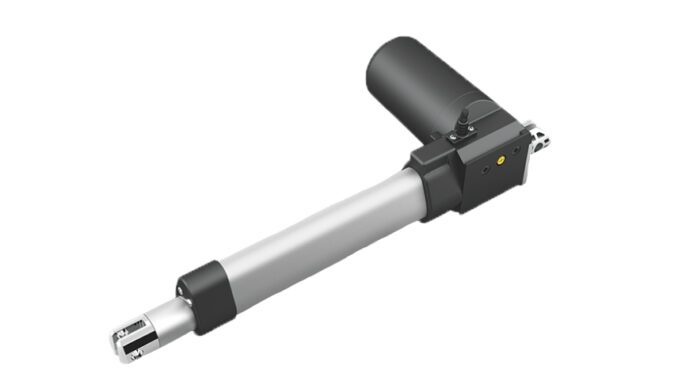

- 24VDC Permanent Magnet Motor
- Load Thrust up to 6,000N, Pull up to 4,000N
- Color: Grey or Black
- Aluminum Alloy Outer and Inner Tubes to Resist Corrosion
- Low Noise Level – Average ≤48 dB (Ambient Noise Level <40 dB)
- Built-in Electrical Limit Switches
- High Strength Front and Back Fixtures
- Certification: CE, UL60601-1, IEC60601-1
- Optional Push Only / No Pull Function
Specifications
| Spindle Pitch (mm) | Max. Push Load (N) | Max. Pull Load (N) | Max. Self-lock Load (N) | Typical No Load Speed (mm/s) | Typical Full Load Speed (mm/s) | Typical Amp Full Load (A) |
|---|---|---|---|---|---|---|
| 4 | 6,000 | 4,000 | 6,000 | 8.5 | 6 | 8 |
| 5 | 4,000 | 4,000 | 4,000 | 12 | 9 | 7 |
| 5 | 2,000 | 2,000 | 2,000 | 22 | 18 | 8 |
| 16 | 500 | 500 | 500 | 75 | 55 | 7 |
Dimensions
Unit: mm
