MLA-AB
Motor Type: Brushed / Brushless
Rated Voltage: 12 ~ 48VDC
Max Load: 900N
Max Speed: 100mm/s
Max Stroke: 1,200mm
Limit Switches: Internal
Position Feedback Available: Encoder, Potentiometer, Hall Sensor, Reed Switches
Rod Style Actuators
MLA-Q
Motor Type: Brushed
Rated Voltage: 12 ~ 48VDC
Max Load: 1,200N
Max Speed: 80mm/s
Max Stroke: 1,000mm
Limit Switches: Internal
Position Feedback Available: Endstop Signal, Potentiometer, Reed Switches
MLA-J
Motor Type: Brush
Rated Voltage: 12 ~ 48VDC
Max Load: 2,000N
Max Speed: 45mm/s
Max Stroke: 1,000mm
Limit Switches: Internal
Position Feedback Available: Endstop Signal, Hall Sensor, Potentiometer, Reed Switches
MLA-J2
Motor Type: Brush
Rated Voltage: 12 ~ 48VDC
Max Load : 2,000N
Max Speed: 15mm/s
Max Stroke: 600mm
Limit Switches: Internal
Position Feedback Available: Endstop Signal, Hall Sensor, Reed Switches
MLA-J6
Motor Type: Brush
Rated Voltage: 12 ~ 48VDC
Max Load : 2,500N
Max Speed: 17mm/s
Max Stroke: 600mm
Limit Switches: Internal
Position Feedback Available: Endstop Signal, Hall Sensor

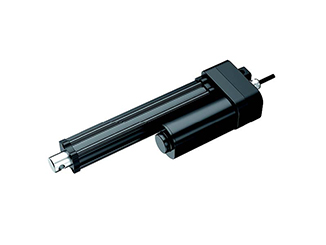

MLA-10
Motor Type: Brush
Rated Voltage: 12V / 24V
Max Load: 3,000N
Max Speed: 18.9mm/s
Max Stroke: 300mm
Limit Switches: Internal
Feedback: Optional Hall Sensor
MLA-33
Motor Type: Brush
Rated Voltage: 12 ~ 48VDC
Max Load: 4,000N
Max Speed: 35mm/s
Max Stroke: 1,000mm
Limit Switch: Internal
Position Feedback Available: Endstop Signal, Hall Sensor, Reed Switches
MLA-JL-03
Motor Type: Brushed / Brushless
Rated Voltage: 220 ~ 380VAC / 24 ~ 48VDC
Max Load: 4,000N
Max Speed: 75mm/s
Max Stroke: 600mm
Limit Switches: External
Synchronization Capability: Up to 5 Motors
MLA-6570
Motor Type: Brushed DC / AC
Rated Voltage: 12 ~ 36VDC / 120 ~240VAC
Max Load: 4,903N
Max Speed: 35mm/s
Max Stroke: 2,500mm
Limit Switches: Internal
Position Feedback Available: Endstop Signal, Potentiometer, Reed Switches
MLA-28
Motor Type: Brush
Rated Voltage: 12V / 24V
Max Load: 6,000N
Max Speed: 28mm/s
Max Stroke: 600mm
Limit Switches: Internal
Feedback: Optional Hall Sensor
MLA-B6
Motor Type:Brush
Rated Voltage: 24V
Max Load: 6,000N
Max Speed: 75mm/s
Max Stroke: 650mm
Limit Switches: Internal
Feedback: None
MLA-33P
Motor Type: Brush
Rated Voltage: 12 ~ 48VDC
Max Load: 7,000N
Max Speed: 35mm/s
Max Stroke: 1,000mm
Limit Switches: Internal
Position Feedback Available: Endstop Signal, Hall Sensor, Reed Switches
MLA-HDA
Electro Hydraulic Linear Actuator
Motor Type: Brush
Rated Voltage: 12 ~ 48VDC
Max Load: 8,000N
Max Speed: 16mm/s
Max Stroke: 350mm
MLA-JL-02
Motor Type: Brushed / Brushless
Rated Voltage: 220 ~ 380VAC / 24 ~ 48VDC
Max Load: 8,000N
Max Speed: 74mm/s
Max Stroke: 800mm
Limit Switches: External
Synchronization Capability: Up to 5 Motors
MLA-C
Motor Type: Brush
Rated Voltage: 12 ~ 48VDC
Max Load: 10,000N
Max Speed: 35mm/s
Max Stroke: 1,000mm
Limit Switches: Internal
Position Feedback Available: Endstop Signal, Hall Sensor, Potentiometer, Reed Switches
