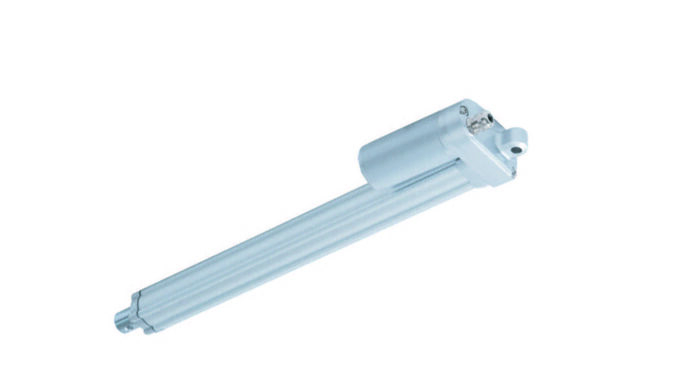

- 12 ~ 48VDC Brushed Motor
- Up to 1200N Dynamic Load
- Position Feedback Available: Endstop Signal, Potentiometer, Reed Switches
- Maximum Stroke: 1,000mm/s
- Protection Level: IP66
- Noise Level: ≤65 dB
- Certifications: CE
- Color: Silver or Black
Specifications
| Code | Max. Dynamic Load (N) | Max. Self-locking Load (N) | Pitch (mm) | Max. No Load Speed (mm/s) +/-10% | Max. Full Load Speed (mm/s) +/-10% | Max. Stroke (w/o Pot.) | Max Stroke (w/Pot.) |
|---|---|---|---|---|---|---|---|
| A | 200 | 300 | 3.17 | 40 | 22 | 1,000 | 200 |
| B | 100 | 150 | 5 | 60 | 45 | 1,000 | 300 |
| C | 50 | 100 | 7.5 | 80 | 65 | 1,000 | 450 |
| D | 600 | 900 | 3.17 | 10.5 | 7 | 1,000 | 200 |
| E | 500 | 800 | 5 | 16.5 | 12 | 1,000 | 300 |
| F | 250 | 400 | 7.5 | 25 | 20 | 1,000 | 450 |
| G | 1,000 | 1,500 | 3.17 | 7.2 | 5 | 1,000 | 200 |
| H | 700 | 1,000 | 5 | 11.5 | 8.5 | 1,000 | 300 |
| I | 400 | 600 | 7.5 | 17 | 13.5 | 1,000 | 450 |
| J | 1,200 | 1,700 | 3.17 | 5.5 | 4.0 | 1,000 | 200 |
| K | 800 | 1,200 | 5 | 8.5 | 6.5 | 1,000 | 300 |
| L | 450 | 700 | 7.5 | 13 | 10 | 1,000 | 450 |
Dimensions
Unit: mm
Performance
