Rod Style Actuators

MLA-C

Motor Type: Brush
Rated Voltage: 12 ~ 48VDC
Max Load: 10,000N
Max Speed: 35mm/s
Max Stroke: 1,000mm
Limit Switches: Internal
Overload Protection: Clutch, Thermistor
Position Feedback Available: Endstop Signal, Hall Sensor, Potentiometer, Reed Switches

MLA-G

Motor Type: Brush
Rated Voltage: 12 ~ 48VDC
Max Load: 12,000N
Max Speed: 38mm/s
Max Stroke: 1,000mm
Limit Switches: Internal
Overload Protection: Clutch
Position Feedback Available: Endstop Signal, Hall Sensor, Potentiometer, Reed Switches

MLA-G2

Motor Type: Brush
Rated Voltage: 12 ~ 48VDC
Max Load: 12,000N
Max Speed: 37mm/s
Max Stroke: 1,000mm
Limit Switches: Internal
Position Feedback Available: Hall Sensor, Potentiometer, Reed Switches

MLA-36

Motor Type: Brush
Rated Voltage: 12 ~ 48VDC
Max Load: 12,000N
Max Speed: 28mm/s
Max Stroke: 1,000mm
Limit Switches: Internal
Overload Protection: Clutch, Electronic
Feedback: Optional Endstop Signal, Hall Sensor, Potentiometer, Reed Switches

MLA-39

Motor Type: Brush
Rated Voltage: 12 ~ 48VDC
Max Load: 12,000N
Max Speed: 24mm/s
Max Stroke: 1,000mm
Limit Switches: Internal
Overload Protection: Clutch
Feedback: Optional Endstop Signal, Hall Sensor, Potentiometer, Reed Switches

MLA-35

Motor Type: Brush
Rated Voltage: 12V / 24V
Max Load: 17,000N
Max Speed: 28mm/s
Max Stroke: 1,000mm
Limit Switches: Internal
Feedback: Optional Hall Sensor

MLA-JL-01

Motor Type: Brushed / Brushless
Rated Voltage: 220 ~ 380VAC / 24 ~ 48VDC
Max Load: 20,000N
Max Speed: 100mm/s
Max Stroke: 1,000mm
Limit Switches: Internal
Synchronization Capability: Up to 4 Motors

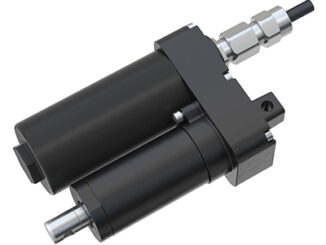

JC35FA17

Motor Type: Brush
Rated Voltage: 24 VDC
Max Load: 1,000N
Max Speed: 7.5mm/s
Max Stroke: 300mm
Limit Switches: None
Position Feedback Available: Endstop Signal
