ST24-1.8-439-2.8

Type: NEMA 24 Stepper Motor
Voltage: 24VDC
Dielectric Strength: 600VDC
Shaft: ø14mm (0.55in), 3mm Key
Phases: 2
Rated Current: 2.8A / Phase
Holding Torque: 3.1Nm

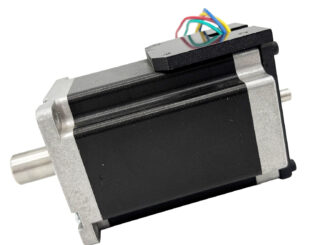

ST24-1.8-439-2.8-DXXX

Type: NEMA 24 Stepper Motor
Voltage: 24VDC
Dielectric Strength: 600VDC
Shaft: ø14mm (0.55in) front, 6mm rear
Phases: 2
Rated Current: 2.8A / Phase
Holding Torque: 3.1Nm

ST86-18-156-460-14K-38

Type: NEMA 34 Stepper Motor
Voltage: 24VDC
Dielectric Strength: 1,000VDC
Shaft: ø14mm (0.55in), 5mm Key
Phases: 2
Rated Current: 6A / Phase
Holding Torque: 12.2Nm

MEB4

Compatible Motor Size (AC): 400W / 750W / 86 steppers
Guide Rod Diameter: 6mm
Lead (mm): 40 / 80
Horizontal Max Payload (kg): 8
Vertical Max Payload (kg): 4
Repeatability: ± 0.05mm
Max Stroke: 4,000mm

MEB6

Compatible Motor Size (AC): 400W / 750W / 86 steppers
Guide Rod Diameter: 8mm
Lead (mm): 70 / 140
Horizontal Max Payload (kg): 20
Vertical Max Payload (kg): 10
Repeatability: ± 0.05mm
Max Stroke: 4,000mm

MEB8

Compatible Motor Size (AC): 400W / 750W / 86 steppers
Guide Rod Diameter: 10mm
Lead (mm): 100 / 200
Horizontal Max Payload (kg): 35
Vertical Max Payload (kg): 25
Repeatability: ± 0.05mm
Max Stroke: 4,000mm

MEB10

Compatible Motor Size (AC): 750W / 86 & 110 steppers
Guide Rod Diameter: 6mm
Lead (mm): 112 / 224
Horizontal Max Payload (kg): 45
Vertical Max Payload (kg): 30
Repeatability: ± 0.05mm
Max Stroke: 4,500mm

MEB16

Compatible Motor Size (AC): 750W / 86 & 110 steppers
Guide Rod Diameter: 10mm
Lead (mm): 104 / 208
Horizontal Max Payload (kg): 100
Vertical Max Payload (kg): 50
Repeatability: ± 0.05mm
Max Stroke: 4,500mm

MEB20

Compatible Motor Size (AC): 750W / 86 & 110 steppers
Guide Rod Diameter: 12mm
Lead (mm): 112 / 224
Horizontal Max Payload (kg): 150
Vertical Max Payload (kg): 70
Repeatability: ± 0.05mm
Max Stroke: 5,500mm

MEB8S2

Compatible Motor Size (AC): 400W / 750W / 86 steppers
Guide Rod Diameter: 10mm
Lead (mm): 100 / 200
Horizontal Max Payload (kg): 15
Vertical Max Payload (kg): 7
Repeatability: ± 0.05mm
Max Stroke: 4,500mm

MEB10S2

Compatible Motor Size (AC): 400W / 750W / 86 steppers
Guide Rod Diameter: 10mm
Lead (mm): 112 / 224
Horizontal Max Payload (kg): 18
Vertical Max Payload (kg): N/A
Repeatability: ± 0.05mm
Max Stroke: 4,500mm

MEB16S2

Compatible Motor Size (AC): 400W / 750W / 86 steppers
Guide Rod Diameter: 12mm
Lead (mm): 104 / 208
Horizontal Max Payload (kg): 40
Vertical Max Payload (kg): N/A
Repeatability: ± 0.05mm
Max Stroke: 4,500mm

MEB20S2

Compatible Motor Size (AC): 400W / 750W / 86 stepper
Guide Rod Diameter: 12mm
Lead (mm): 112 / 224
Horizontal Max Payload (kg): 60
Vertical Max Payload (kg): N/A
Repeatability: ± 0.05mm
Max Stroke: 4,000mm

MEB6ZR

Compatible Motor Size (AC): 200W / 400W / 57
Guide Rod Diameter: 8mm
Lead (mm): 112
Horizontal Max Payload (kg): N/A
Vertical Max Payload (kg): 10
Repeatability: ± 0.05mm
Max Stroke: 1,500mm

MEB8ZR

Compatible Motor Size (AC): 400W / 750W
Guide Rod Diameter: 10mm
Lead (mm): 112
Horizontal Max Payload (kg): N/A
Vertical Max Payload (kg): 30
Repeatability: ± 0.05mm
Max Stroke: 1,500mm
