ST24-1.8-439-2.8

In Stock, In Stock Stepper Motors

ST24-1.8-439-2.8
NEMA 24 Stepper Motor, 2 Phases, 86mm length, Rated Current 2.8A / Phase, Holding Torque 3.1Nm. 60mm x 60mm Face Dimensions, Single ΓΈ14mm (5mm Key) Shaft, DB9 Connector.

Our NEMA 24 motors mount perfectly with 60mm Gearboxes or with certain Macron Dynamics actuators.

$189.43 USD /ea

4 items in Stock
Call (360) 601-0666 or email orders@machmo.com to place an order!

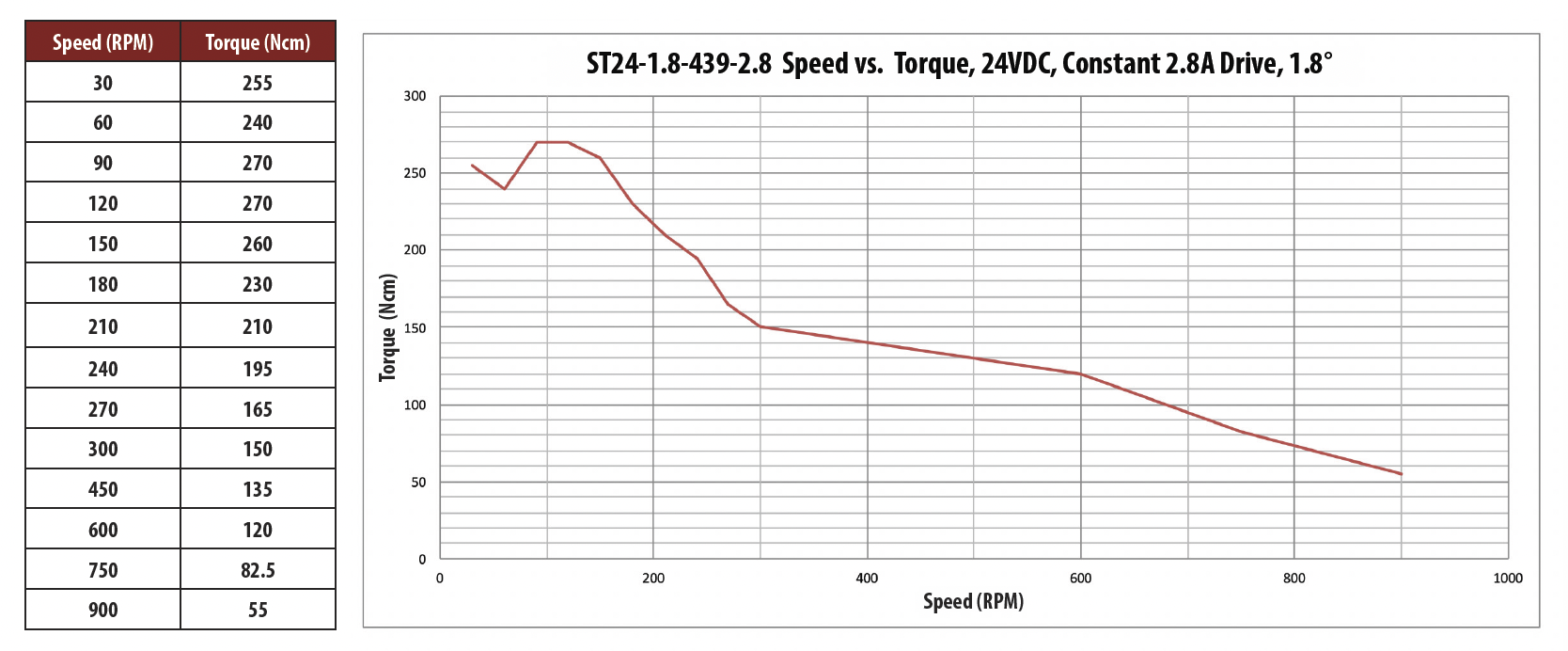

Performance Data


Rated Current2.8A/Ph
Weight1.4 kg | 3.08 Ibs
Step Angle1.8 Degrees
Accuracy+/- 5%
Holding Torque3.1Nm | 438.99 Oz-in
Resistance1.5 Ohms +/- 10%
Inductance6.8 mH +/-20%
Height60mm
Length86mm
Width60mm

Downloads

ST24-1.8-439-2.8 2D PDF Drawing
ST24-1.8-439-2.8 3D STEP File
