ST86-18-156-460-14K-38

In Stock, In Stock Stepper Motors

ST86-18-156-460-14K-38

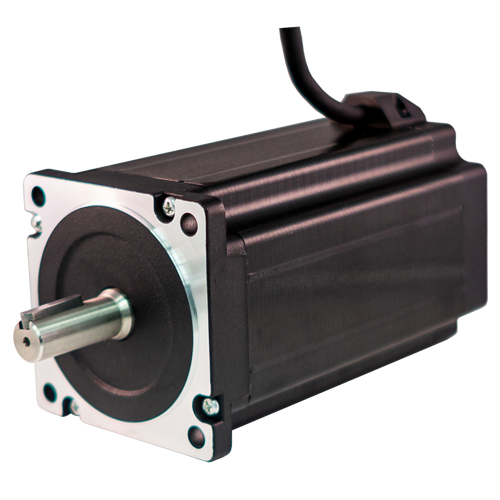

NEMA 34 Stepper Motor, 2 Phases, 156mm length, Rated current 6A / Phase, Holding Torque 12.2Nm. 86mm x 86mm Face Dimensions.

Larger than NEMA 24, but with much more torque, our NEMA 34 motors mount perfectly with 86mm Gearboxes or with certain Macron Dynamics actuators.

$225.00 USD /ea

30 items in Stock
Call (360) 601-0666 or email orders@machmo.com to place an order!

Performance Data

Rated Current6A/Ph
Weight5.2kg | 11.5 Ibs
Step Angle1.8 Degrees
Accuracy+/- 5%
Holding Torque12.2Nm | 1,727.6 Oz-in
Resistance0.76 Ohms +/- 10%
Inductance8.4mH +/-20%
Height86mm
Length156mm
Width86mm

Downloads

ST86-18-156-460-14K-38 2D PDF Drawing
