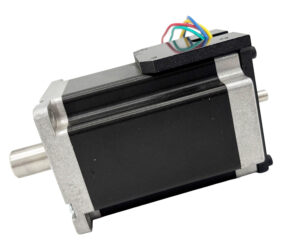

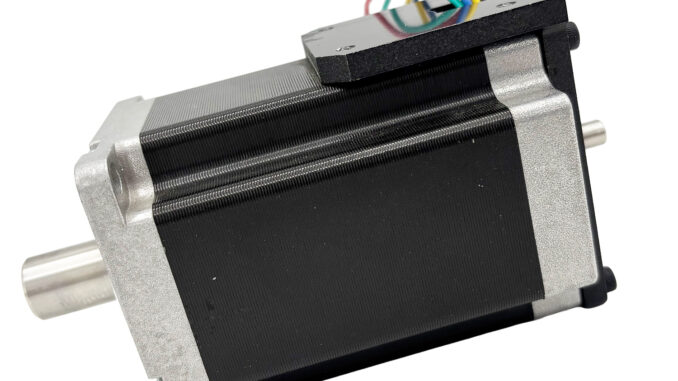

ST24-1.8-439-2.8-DXXX
NEMA 24 Stepper Motor, 2 Phases, 86mm length, Rated Current 2.8A / Phase, Holding Torque 3.1Nm. 60mm x 60mm Face Dimensions, Stepper Drive Mounting Plate. Dual Shaft; ø14mm front, ø6mm rear.
Our NEMA 24 motors mount perfectly with 60mm Gearboxes or with certain Macron Dynamics actuators.
$157.50 USD /ea
1 item in Stock
Call (360) 601-0666 or email orders@machmo.com to place an order!

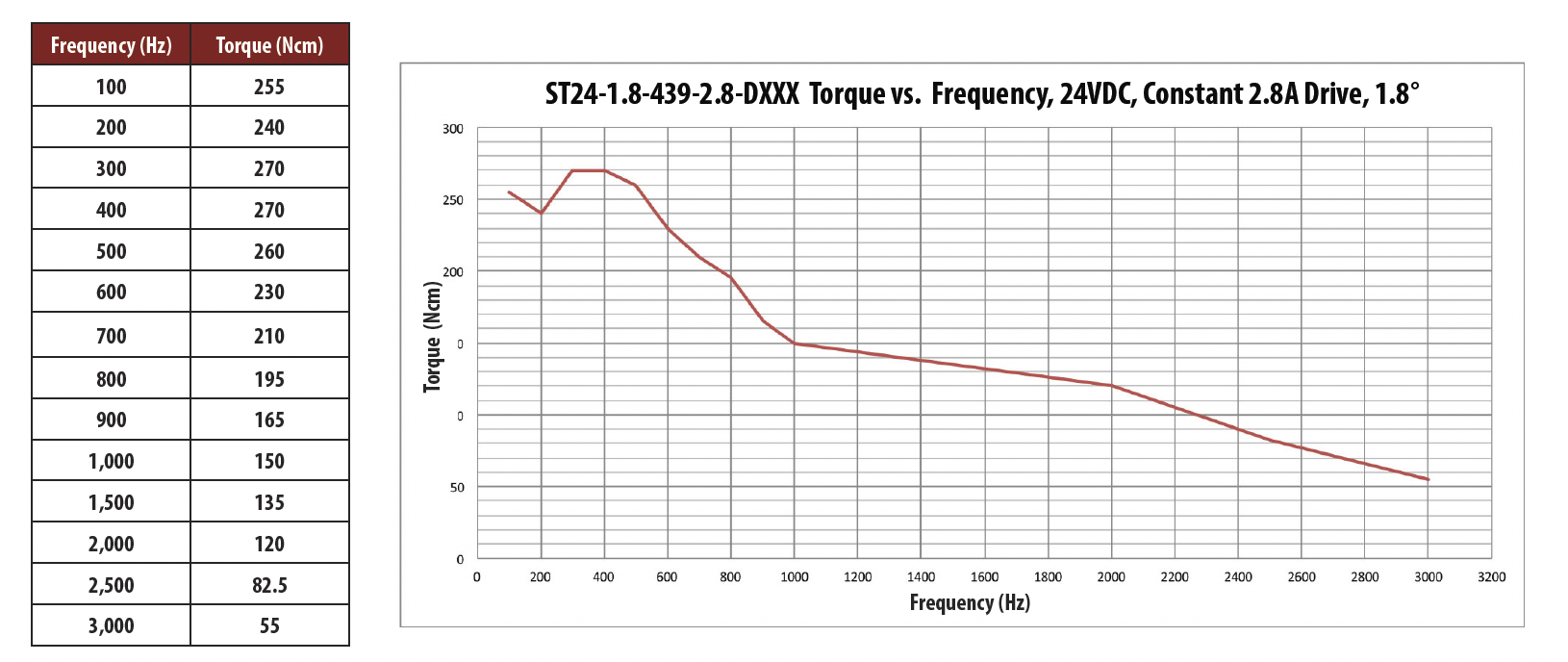

Performance Data
| Rated Current | 2.8A/Ph |
| Weight | 1.4 kg | 3.08 Ibs |
| Step Angle | 1.8 Degrees |
| Accuracy | +/- 5% |
| Holding Torque | 3.1Nm | 438.99 Oz-in |
| Resistance | 1.5 Ohms +/- 10% |
| Inductance | 6.8 mH +/-20% |
| Height | 60mm |
| Length | 86mm |
| Width | 60mm |
Downloads
ST24-1.8-439-2.8-DXXX 2D PDF Drawing
