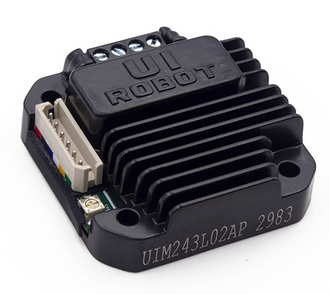

UIM243L02AP
Micro-high-performance stepping motor driver featuring small size that can be mounted onto NEMA 17/23 series stepping motors seamlessly through corresponding flanges. Controls Stepper Motor Velocity using Analog Signal.
- 12 – 28VDC Input Voltage
- Peak 2A Adjustable Output Current
- Onboard Potentiometer
- Dual full H-bridge with PWM constant Current control
- Online controlled offline/enable
- Electro-optical isolation inputs. Standard common cathode anode single pulse Input
- Highest frequency 12KHz/1 stepping 200KHz/1/16 micro-stepping
Embedded microprocessors provide an advanced acceleration function, where motors can ramp up to 1,900 RPM in 0.3 seconds (based on 1.8° motor) and can avoid crashes caused by fast start up frequency.
Users can set the speed by fine-tuning the resistance (UIM243XXA). Once powered on, it can run without host computer’s control.
Drive enclosure is made of die-cast aluminum which provides rugged, durable protection and improves the heat dissipation.
$123.00 USD /ea
3 items in Stock
Call (360) 601-0666 or email orders@machmo.com to place an order!
Description
| Stepping Motor Port | ||
|---|---|---|
| Port | Description | |
| A+ /A- | Stepping motor's A phase wiring | |
| B+ /B- | Stepping motor's AB phase wiring | |
| Connection Port | ||
| Port | Symbol | Description |
| 1 | V+ | Positive Voltage: 12-38VDC ( Note: Max voltage is different between 243Lxx amd 243 Cxx) |
| 2 | GND | Ground Voltage: 0V |
| 3 | ENA | Off-line signal; low level (with GND connected), the rotor is in a free state; Motor can be controlled with high-level or free state |
| 4 | ON | Stop or start; low when the motor lock; high. Motor can be controlled with high-level or free state |
| 5 | H/L | Speed gear setting; Low-level for low speed, high-level or free state for high speed |
| 6 | DIR | Directional signal input, H/L level control steering, free sate or high-level |
| 7 | Vr | 5V output, as a reference voltage |
| 8 | SPD | Speed voltage input (0-5V) |
Character
Micro-integrated Design
• Miniature size 42.3mm x 42.3mm x 16.5mm
• Integral design to fit most motors, driver can also work independently
Diagram
Download
User Manual: UIM243 Series.pdf
