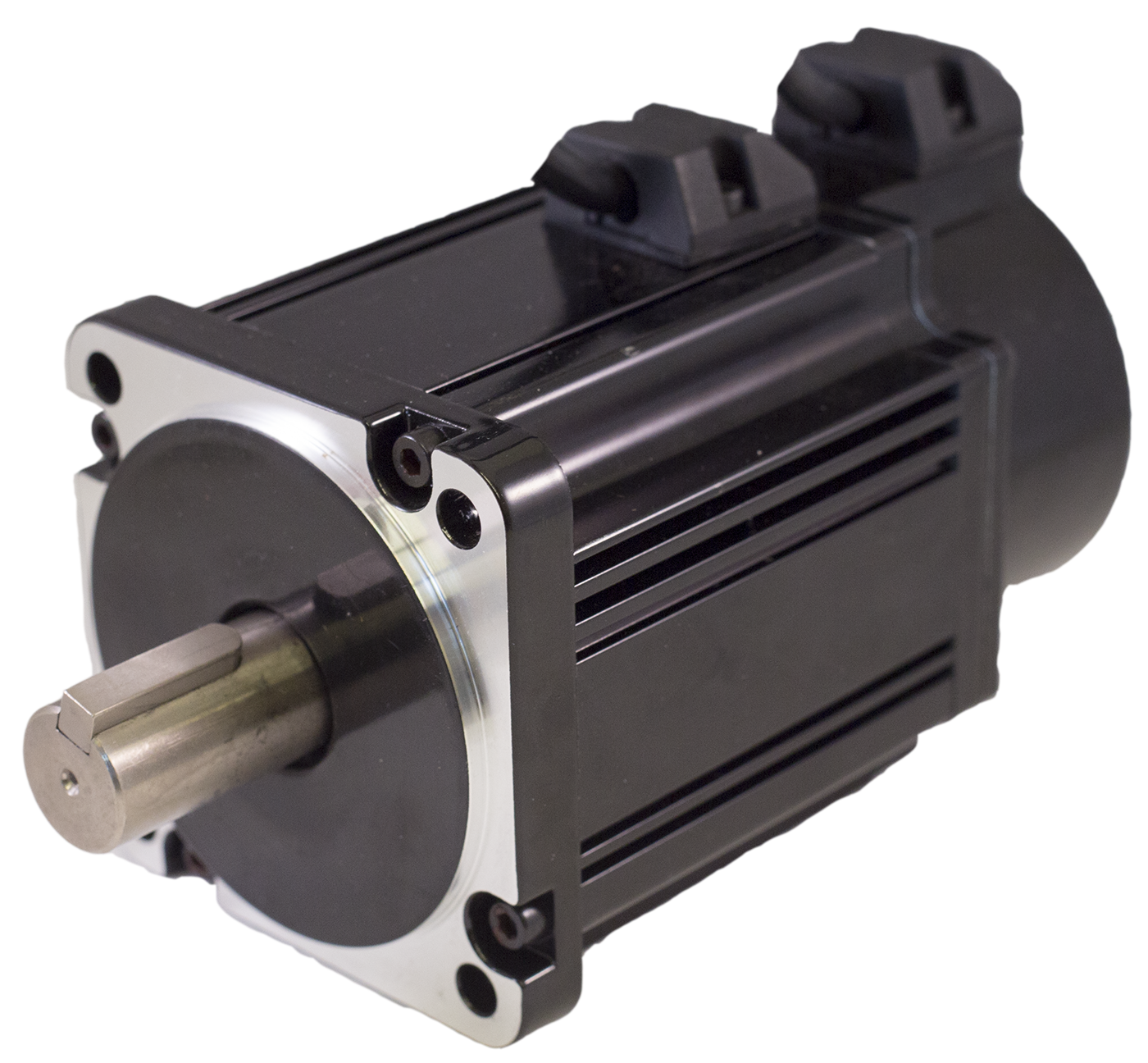

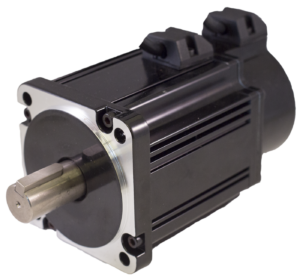

SV080AS-01
80mm Frame Brushless Servo Motor, 132mm Length, 8 Poles, 3 Phases. 1.31Nm Rated Torque. 16.93A Rated Current.
18 Slot Distribution Winding, Skewed Stator Designed for Low Cogging. 2,500 PPR Incremental Encoder, Insulation Class F.
$284.05 USD /ea
6 items in Stock
Call (360) 601-0666 or email orders@machmo.com to place an order!
Performance Data
| Specification | Unit | SV080AS-01 |
|---|---|---|
| Supply Voltage | VDC | 48 |
| Rated Speed At Continuous Torque | RPM | 3,000 |
| Rated Continuous Torque | Nm | 1.31 |
| Rated Continuous Stall Current | A | 16.93 |
| Rated Continuous Output Power | W | 411 |
| Motor Constant | Nm/√W | 0.2030 |
| Torque Constant | Nm/A | 0.0812 |
| Voltage Constant | V/krpm | 0.0812 |
| Terminal Resistance | Ω | 0.16 |
| Inductance | mH | 0.4 |
| Rated Peak Current | A | 57.88 |
| Rated Peak Torque | Nm | 4.50 |
| Coulomb Friction Torque | Nm | 0.0470 |
| Motor Length | mm | 132 |
| Rotor Inertia | kg.m² | 1.2E-04 |
| Motor Weight | Lb / Kg | 4.63 / 2.10 |
| Feedback Device | 2500 p/rev incremental encoder | |
| Insulation Class | F | |

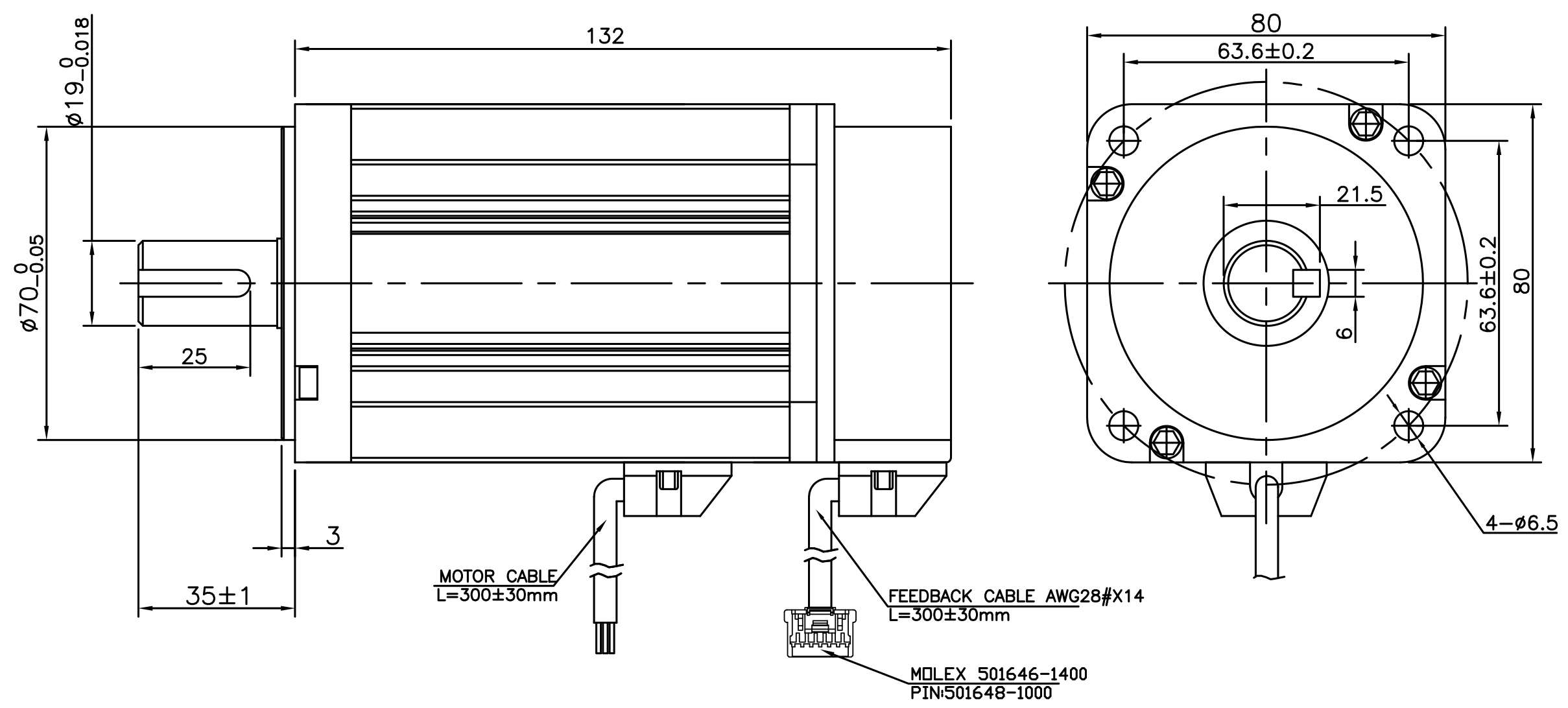

Drawing

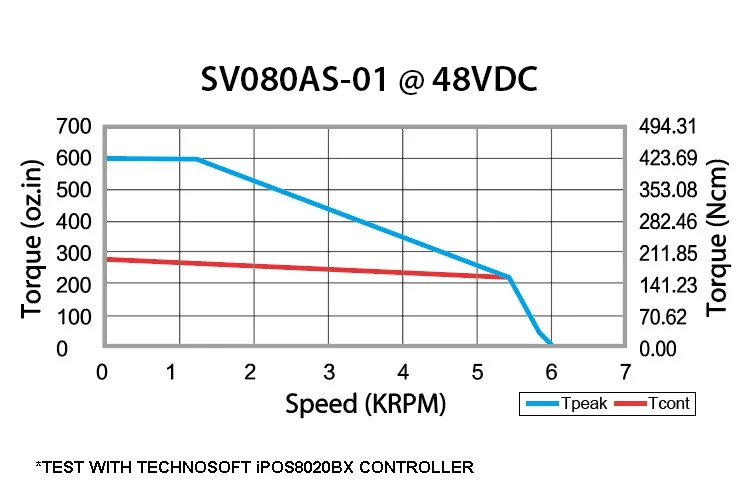

Speed Torque Curve
Downloads
2D Dimensional Drawing: SV080AS-01 Drawing.pdf
3D STEP File: SV080AS-01.STEP.zip
