SV080AS-02
80mm Frame Brushless Servo Motor, 153mm Length, 8 Poles, 3 Phases.
18 Slot Distribution Winding, Skewed Stator Designed for Low Cogging. 2,500 PPR Incremental Encoder, Insulation Class F.
$303.23 USD /ea
3 items in Stock
Call (360) 601-0666 or email orders@machmo.com to place an order!
Performance Data
| Specification | Unit | SV080AS-02 |
|---|---|---|
| Supply Voltage | VDC | 48 |
| Rated Speed At Continuous Torque | RPM | 3,000 |
| Rated Continuous Torque | Nm | 2.44 |
| Rated Continuous Stall Current | A | 31.52 |
| Rated Continuous Output Power | W | 765 |
| Motor Constant | Nm/√W | 0.2449 |
| Torque Constant | Nm/A | 0.0812 |
| Voltage Constant | V/krpm | 0.0812 |
| Terminal Resistance | Ω | 0.11 |
| Inductance | mH | 0.29 |
| Rated Peak Current | A | 104.21 |
| Rated Peak Torque | Nm | 8.10 |
| Coulomb Friction Torque | Nm | 0.061 |
| Motor Length | mm | 153 |
| Rotor Inertia | kg.m² | 1.65E-04 |
| Motor Weight | Lb / Kg | 6.00 / 2.72 |
| Feedback Device | 2500 p/rev incremental encoder | |
| Insulation Class | F | |

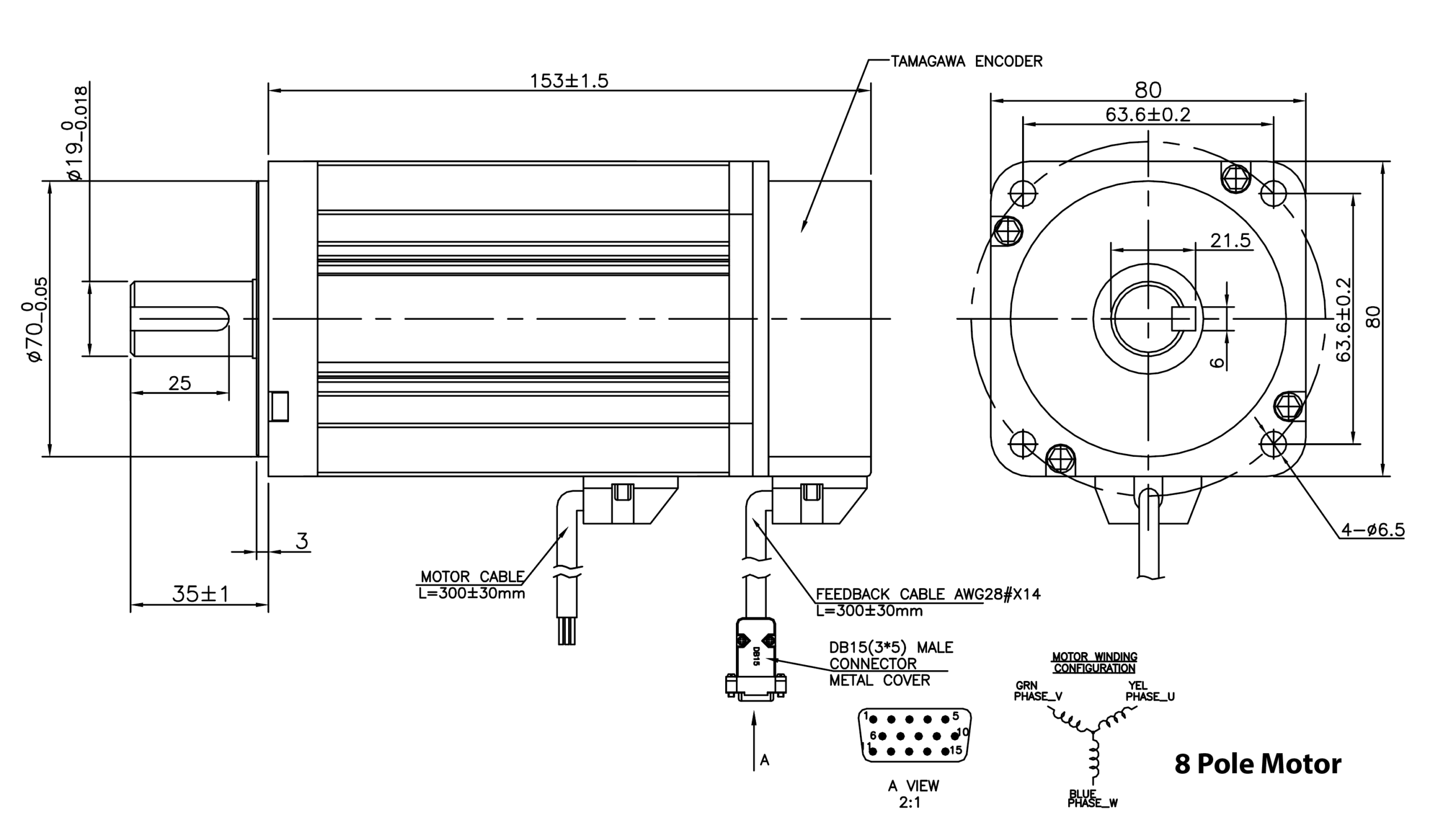

Drawing

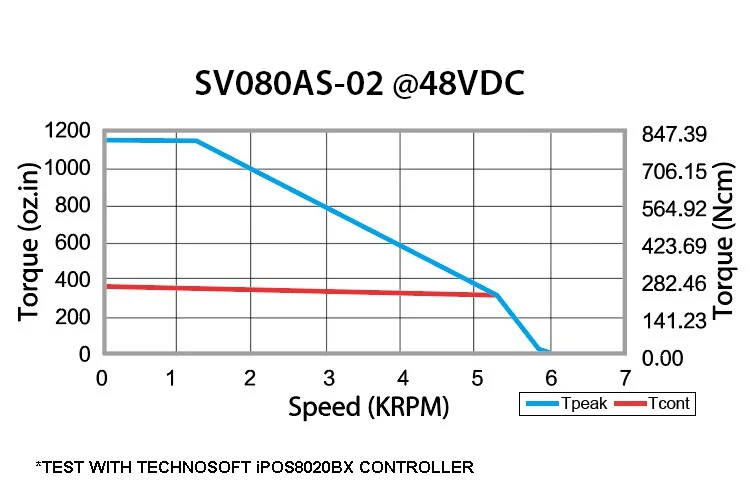

Speed Torque Curve
Downloads
2D Dimensional Drawing: SV080AS-02.pdf
3D STEP File: SV080AS-02.STEP.zip
