SV060AS-03
60mm Frame Brushless Servo Motor, 141mm Length, 8 Poles, 3 Phases. 1.3Nm Rated Torque.
18.41A Rated Current. 18 Slot Distribution Winding, Skewed Stator Designed for Low Cogging. 2,500 PPR Incremental Encoder, Insulation Class F.
$288.93 USD /ea
9 items in Stock
Call (360) 601-0666 or email orders@machmo.com to place an order!
Performance Data
| Specification | Unit | SV060AS-03 |
|---|---|---|
| Supply Voltage | VDC | 48 |
| Rated Speed at Continuous Torque | RPM | 3,000 |
| Torque Constant | Nm/A | 0.0745 |
| Voltage Constant | V/krpm | 5.8 |
| Rated Continuous Torque | Nm | 1.30 |
| Rated Continuous Stall Current | A | 18.41 |
| Rated Continuous Output Power | W | 410 |
| Motor Constant | Nm√ W | 0.1408 |
| Terminal Resistance | Ω | 0.28 |
| Inductance | mH | 0.33 |
| Rated Peak Current | A | 56.89 |
| Rated Peak Torque | Nm | 4.05 |
| Coulomb Friction Torque | Nm | 0.025 |
| Rotor Inertia | kg.m² | 2.66E-03 |
| Motor Length | mm | 141 |
| Motor Weight | Kg | 1.54 |
| Feedback Device | 2,500 p/rev Incremental Encoder | |
| Insulation Class | F | |

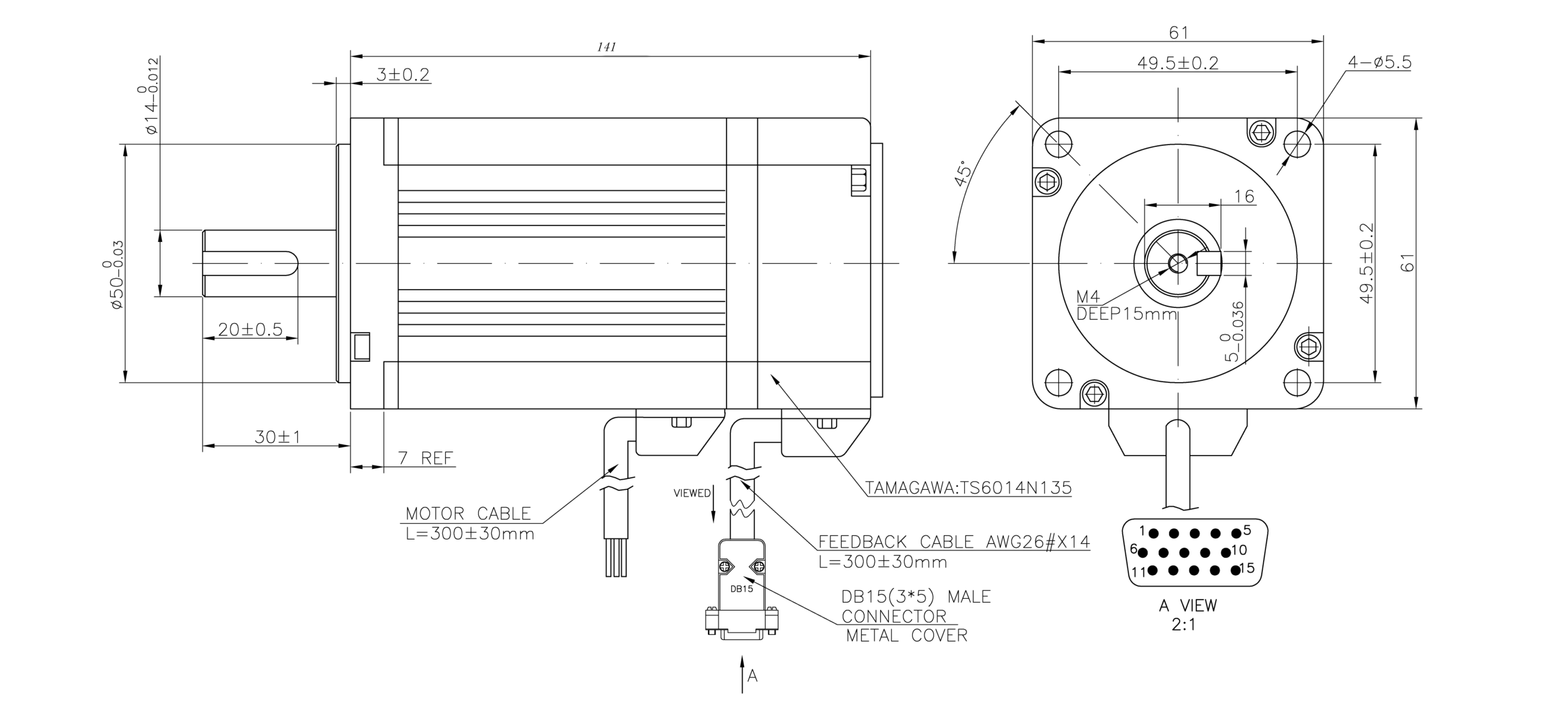

Drawing

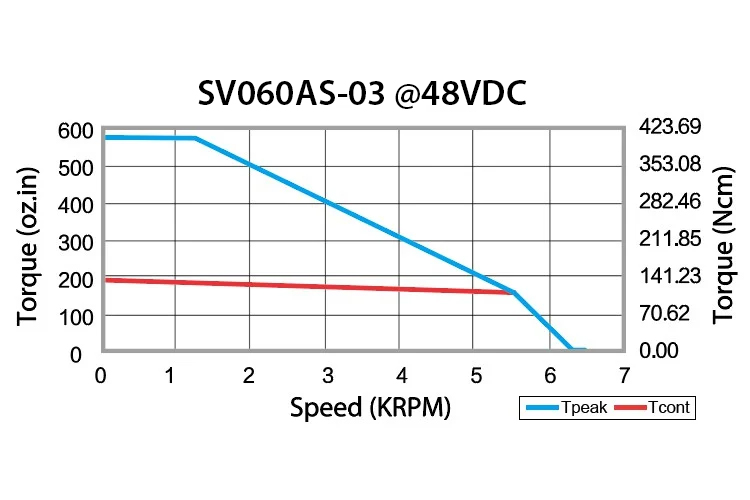

Speed Torque Curve
Downloads
2D Dimensional Drawing: SV060AS-03 2D Drawing.pdf
3D STEP File: SV060AS-03.STEP.zip
