Precision Fully Enclosed Screw Module

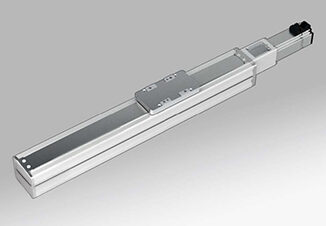

Compatible Motor Size (AC): 100W
Ball Screw Diameter: 10mm
Ball Screw Lead (mm): 2 / 6 / 12
Horizontal Max Payload (kg): 25 / 20 / 12
Vertical Max Payload (kg): 8 / 5 / 2
Repeatability: C7 ± 0.01mm; C5 ± 0.006
Max Stroke: 800mm

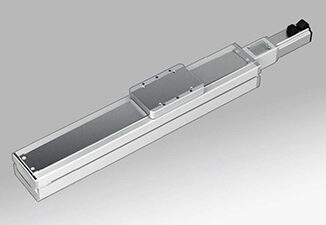

Compatible Motor Size (AC): 100W
Ball Screw Diameter: 12mm
Ball Screw Lead (mm): 5 / 10
Horizontal Max Payload (kg): 30 / 15
Vertical Max Payload (kg): 10 / 5
Repeatability: C7 ± 0.01mm; C5 ± 0.006
Max Stroke: 800mm

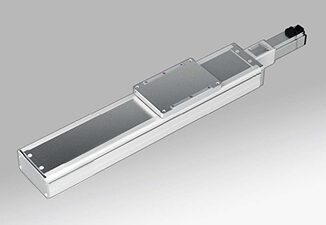

Compatible Motor Size (AC): 200W / 400W
Ball Screw Diameter: 16mm
Ball Screw Lead (mm): 5 / 10 / 20
Horizontal Max Payload (kg): 50 / 30 / 12
Vertical Max Payload (kg): 15 / 8 / 2.5
Repeatability: C7 ± 0.01mm; C5 ± 0.006
Max Stroke: 1,050mm

Compatible Motor Size (AC): 400W
Ball Screw Diameter: 16mm
Ball Screw Lead (mm): 5 / 10 / 20 / 32
Horizontal Max Payload (kg): 110 / 88 / 40 / 30
Vertical Max Payload (kg): 33 / 22 / 10 / 8
Repeatability: C7 ± 0.01mm; C5 ± 0.006
Max Stroke: 1,250mm

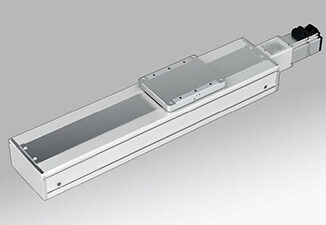

Compatible Motor Size (AC): 750W
Ball Screw Diameter: 20mm
Ball Screw Lead (mm): 5 / 10 / 20 / 40
Horizontal Max Payload (kg): 120 / 120 / 83 / 43
Vertical Max Payload (kg): 50 / 40 / 25 / 12
Repeatability: C7 ± 0.01mm; C5 ± 0.006
Max Stroke: 1,400mm

Compatible Motor Size (AC): 750W
Ball Screw Diameter: 25mm
Ball Screw Lead (mm): 5 / 10 / 25
Horizontal Max Payload (kg): 150 / 140 / 120
Vertical Max Payload (kg): 65 / 54 / 25
Repeatability: C7 ± 0.01mm; C5 ± 0.006
Max Stroke: 1,800mm

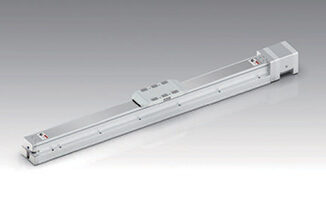

Compatible Motor Size (AC): 100W
Ball Screw Diameter: 12mm
Ball Screw Lead (mm): 5 / 10
Horizontal Max Payload (kg): 30 / 15
Vertical Max Payload (kg): 10 / 5
Repeatability: C7 ± 0.01mm; C5 ± 0.006
Max Stroke: 800mm

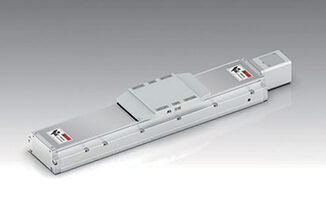

Compatible Motor Size (AC): 100W / 200W / 400W
Ball Screw Diameter: 16mm
Ball Screw Lead (mm): 5 / 10 / 16 / 20
Horizontal Max Payload (kg): 50 / 65 / 65
Vertical Max Payload (kg): 12 / 15 / 18
Repeatability: C7 ± 0.01mm; C5 ± 0.006
Max Stroke: 1,000mm

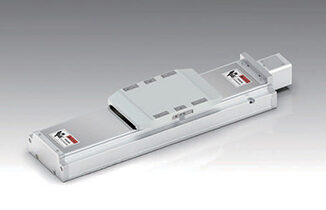

Compatible Motor Size (AC): 200W / 400W
Ball Screw Diameter: 16mm
Ball Screw Lead (mm): 5 / 10 / 16 / 20
Horizontal Max Payload (kg): 70 / 84
Vertical Max Payload (kg): 17 / 20
Repeatability: C7 ± 0.01mm; C5 ± 0.006
Max Stroke: 1,200mm

Compatible Motor Size (AC): 400W / 750W
Ball Screw Diameter: 20mm
Ball Screw Lead (mm): 5 / 10 / 20 / 40
Horizontal Max Payload (kg): 100 / 115
Vertical Max Payload (kg): 40 / 45
Repeatability: C7 ± 0.01mm; C5 ± 0.006
Max Stroke: 1,500mm

Compatible Motor Size (AC): 400W / 750W
Ball Screw Diameter: 20mm
Ball Screw Lead (mm): 5 / 10 / 20 / 40
Horizontal Max Payload (kg): 120 / 120
Vertical Max Payload (kg): 45 / 50
Repeatability: C7 ± 0.01mm; C5 ± 0.006
Max Stroke: 1,500mm

Compatible Motor Size (AC): 750W
Ball Screw Diameter: 25mm
Ball Screw Lead (mm): 5 / 10 / 25
Horizontal Max Payload (kg): 150
Vertical Max Payload (kg):  65
Repeatability: C7 ± 0.01mm; C5 ± 0.006
Max Stroke: 1,500mm
