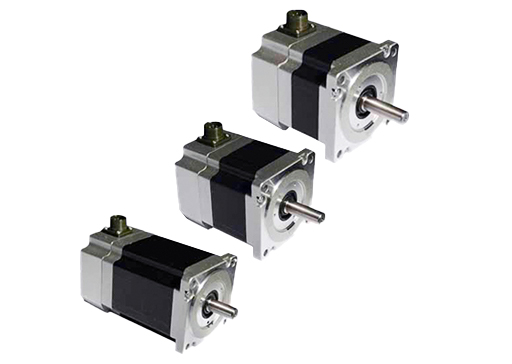

- Step Angle Accuracy:1.8°±5%
- Temperature Rise: 80°C Max
- Ambient Temperature: 100M Ω Min
- Dielectric Strength: 500VAC, 1S, 2mA
- Insulation Class: B
- Protection Class : IP65
- Encoder Available
Performance Data
| Part No. | Phase current (A) | Phase Resistance (Ohms) | Phase Inductance (mH) | Holding Torque (Ncm) | Number of wires | Rotor Inertia (g.cm2) | Length (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| ST086HP100 | 6.4 | 0.33 | 3 | 594 | 4 | 2700 | 118 | 3.4 |
| ST086HP200 | 9.5 | 0.23 | 2.7 | 933 | 4 | 3000 | 148 | 4.6 |
Drawing
Downloads
Catalog Page: ST086HP.pdf
3D Drawings: ST086HP.zip
