Compatible Motor Size (AC): 100W- Ball Screw Diameter: 8mm
- Ball Screw Lead (mm): 2 / 12
- Horizontal Max Payload (kg): 5 / 3
- Vertical Max Payload (kg): 1.5 / 1
- Repeatability: C7 ± 0.01mm; C5 ± 0.006
- Max Stroke: 240mm

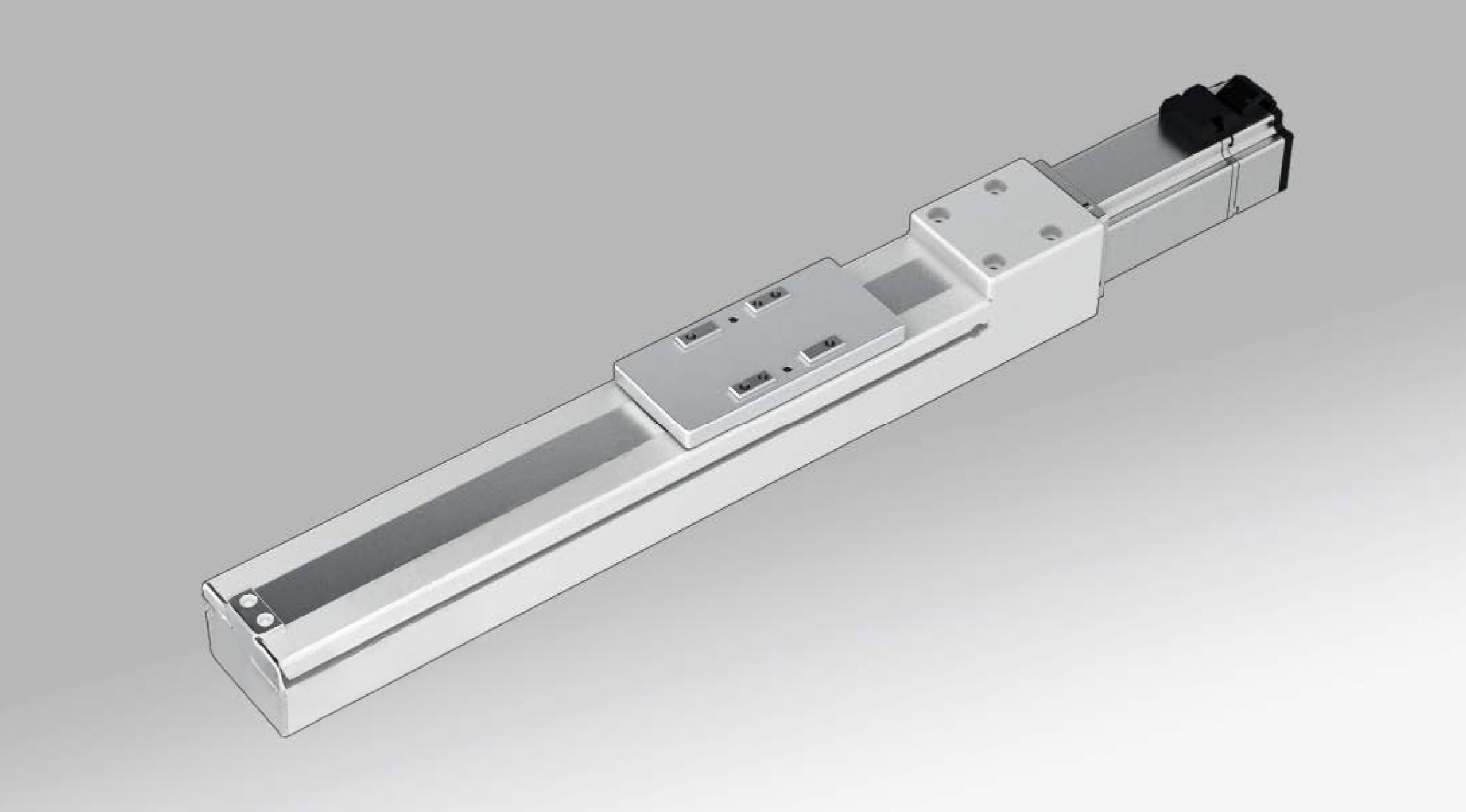

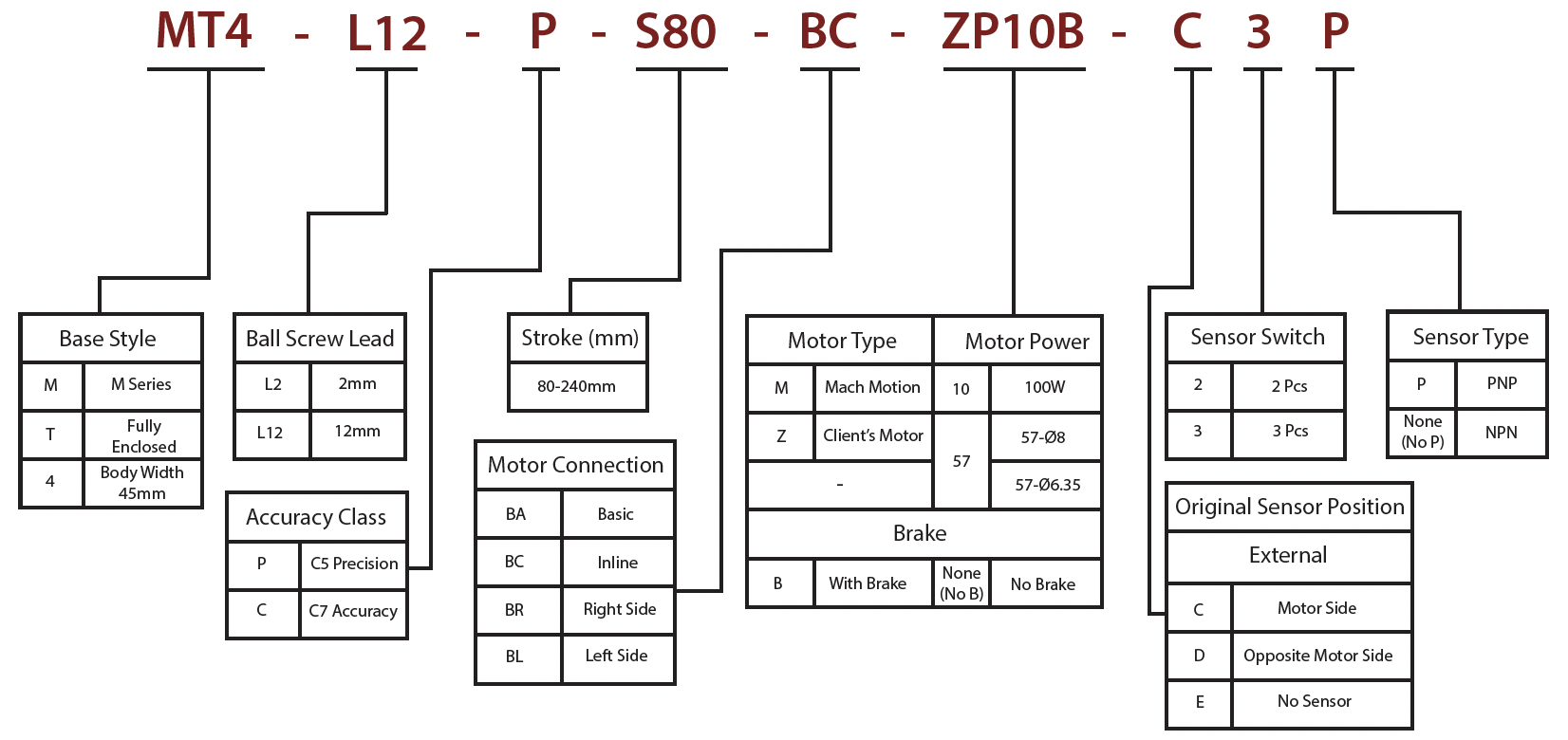

Part Number Configurator
Technical Specifications
| Motor Power AC (W) | 100W | |
| Ball Screw Diameter mm) | C7 - 8mm, C5 - 8mm | |
| Repeatability (mm) | C7 - ±0.01, C5 - ±0.006 | |
| Ball Screw Lead (mm) | 2mm | 12mm |
| Max Speed (mm/sec) 3000 Motor Speed (rpm/min) | 100 | 600 |
| Horizontal Max. Payload (kg) | 5 | 3 |
| Vertical Max. Payload (kg) | 1.5 | 1 |
| Rated Thrust (N) | 900 | 150 |
| Linear Guide | 24 x 8.5 - 1 | |
| Coupling (mm) Motor Side x Ball Screw Side | 5 x 8mm | |
| Motor Output | 100W | |
| Home Sensor - Outside | EE-SX672(NPN), EE-SX672P (PNP) | |
| Home Sensor - Outside Guide | EE-SX674(NPN), EE-SX674P (PNP) | |

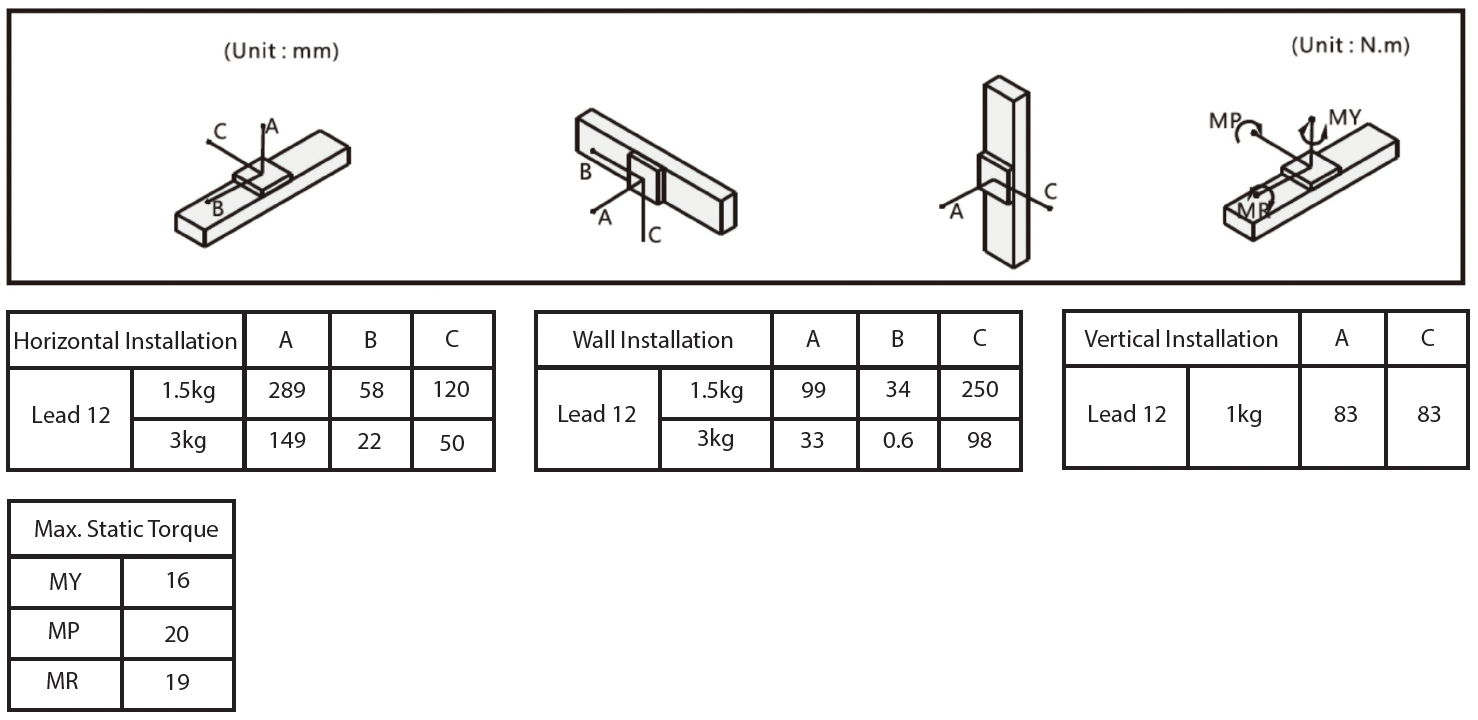

Maximum Static Torque

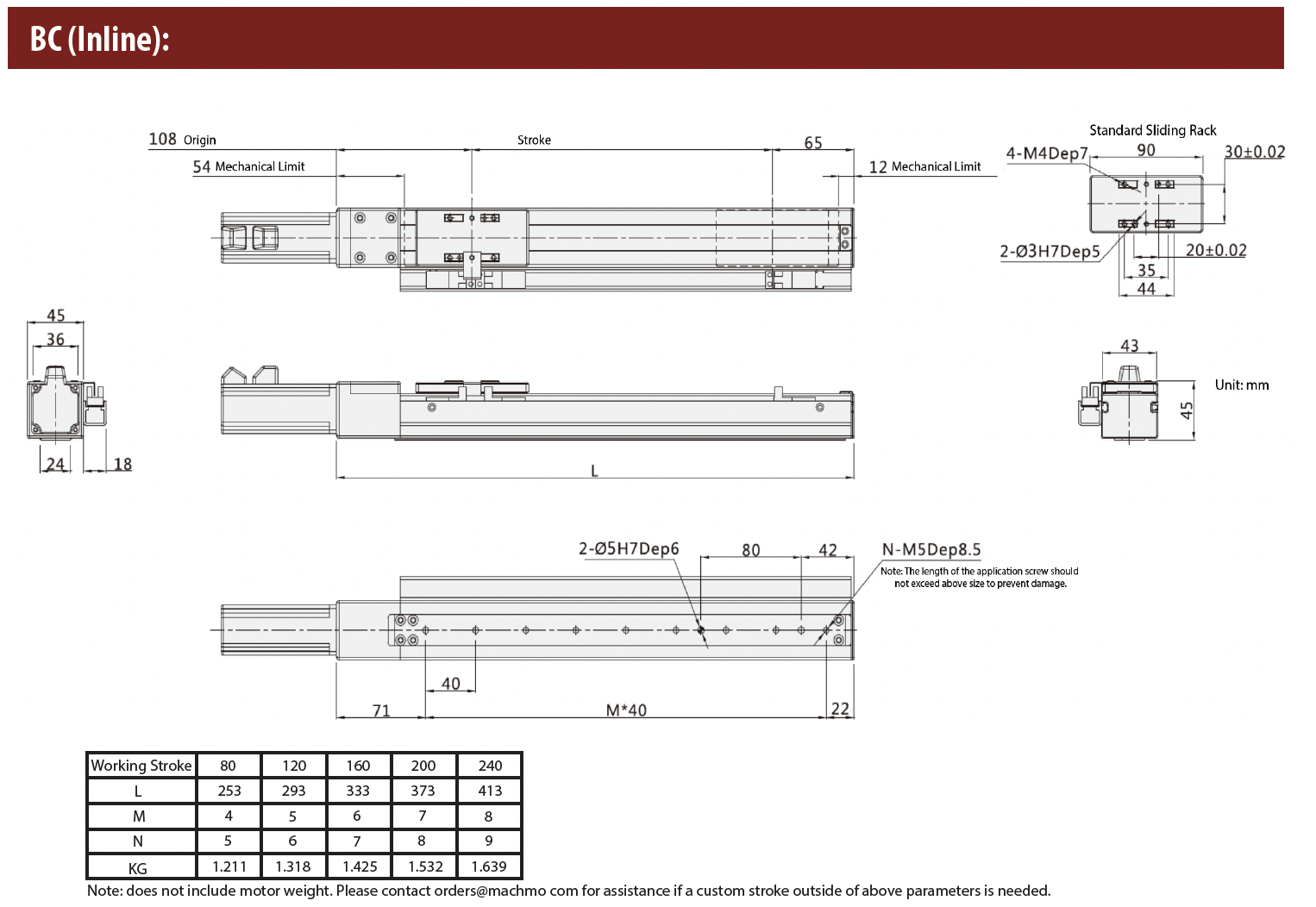

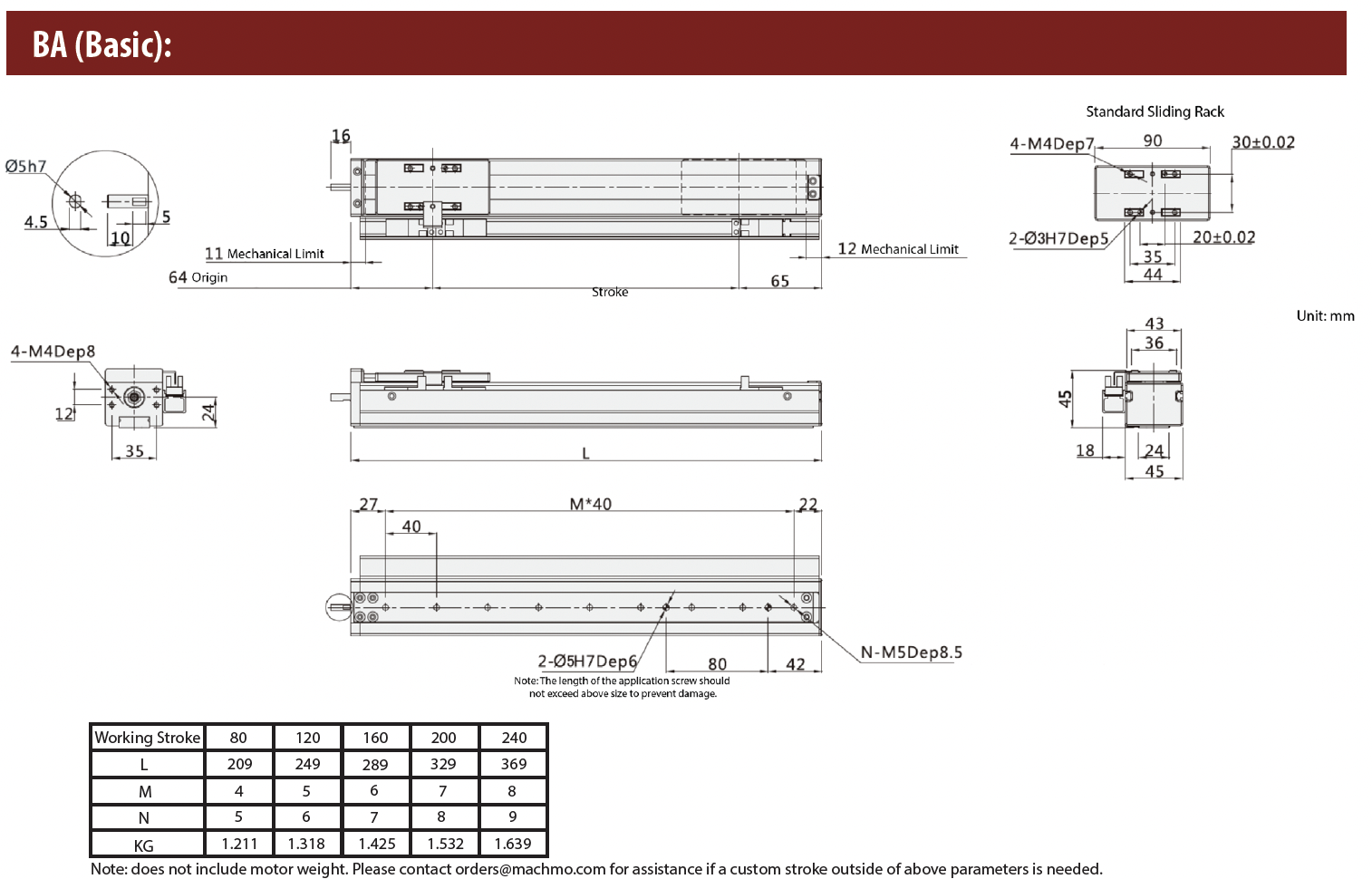

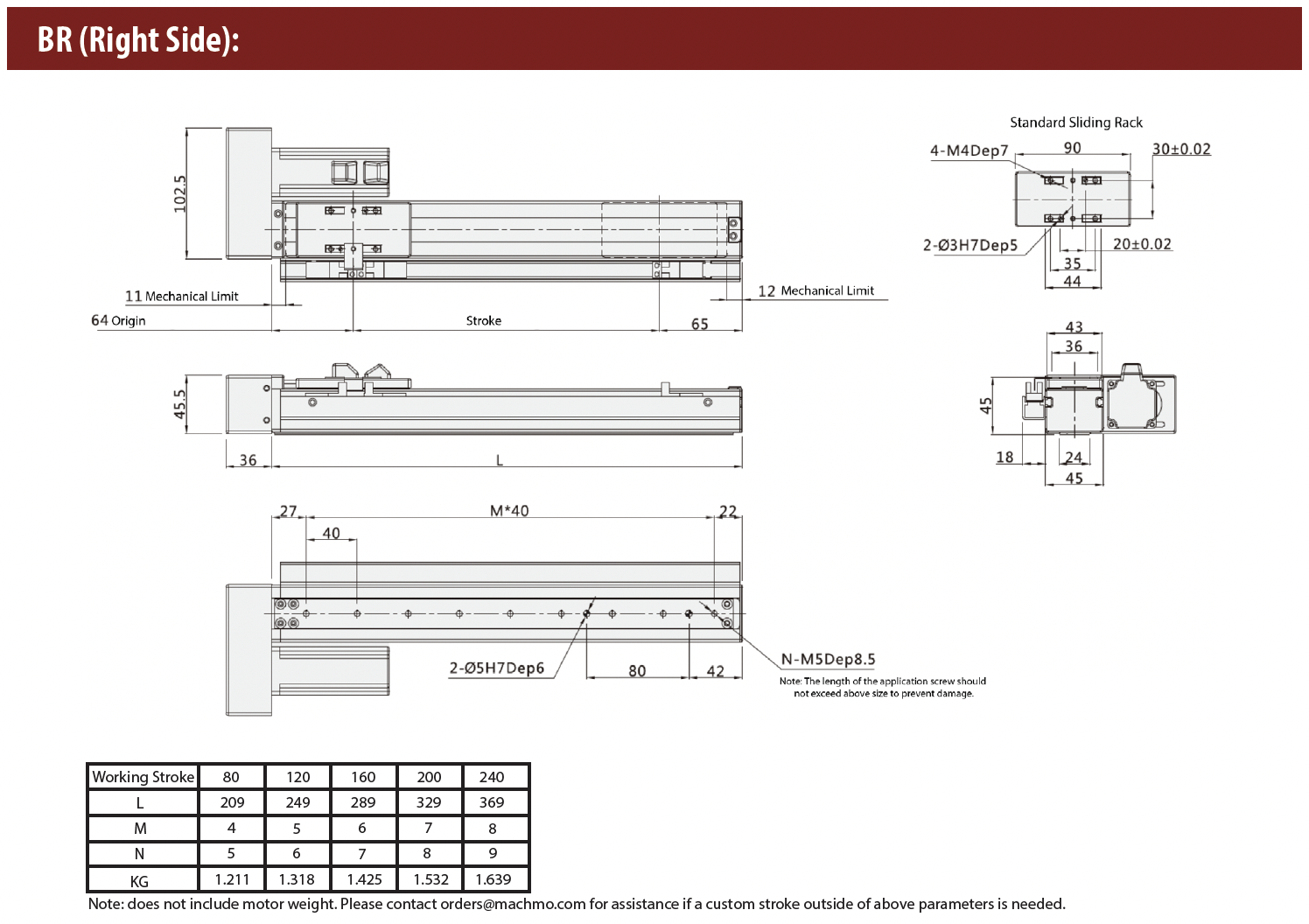

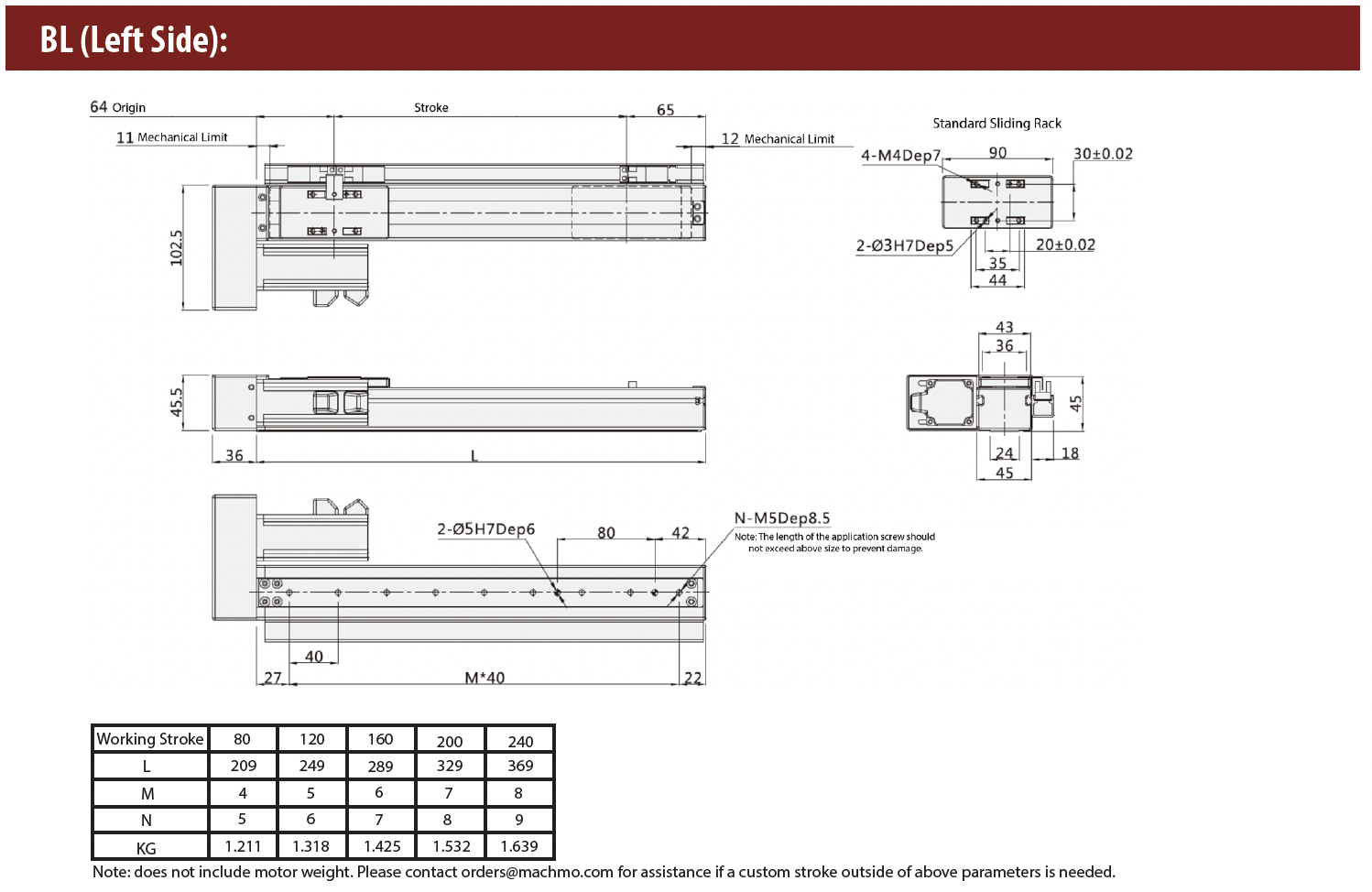

Dimensions

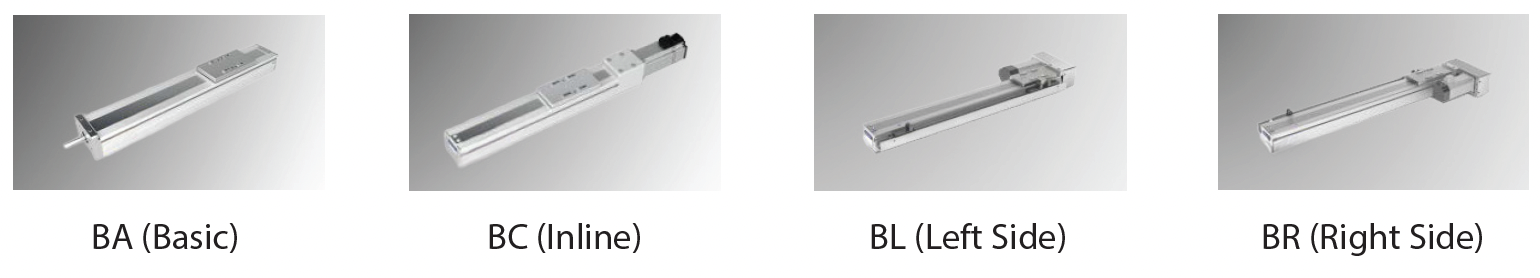

Motor Mount Location
Downloads
Catalog Download: MT-MF Ball Screw Drives Catalog.pdf
