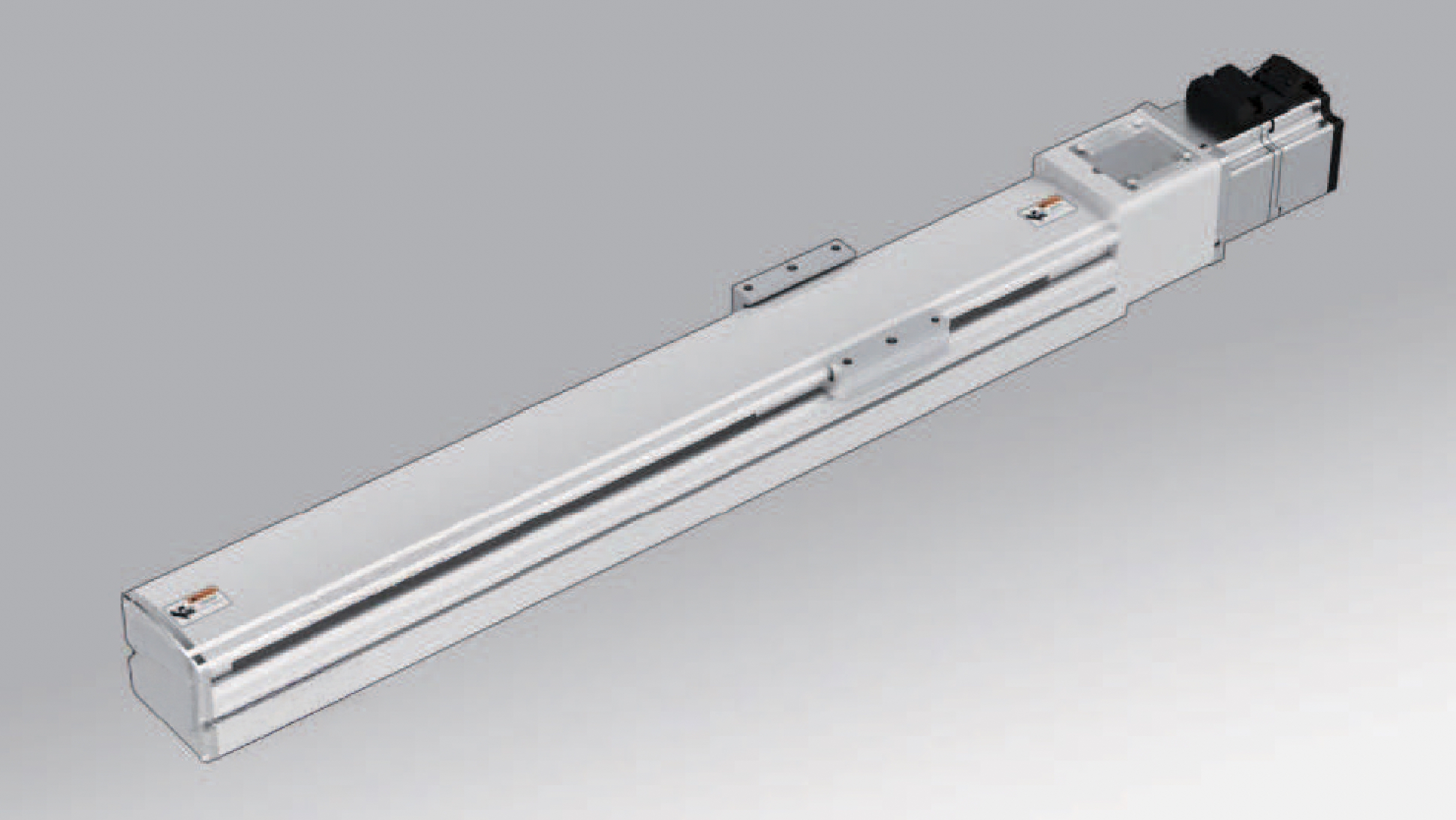

Compatible Motor Size (AC): 100W- Ball Screw Diameter: 16mm
- Ball Screw Lead (mm): 5 / 10 / 16 / 20
- Horizontal Max Payload (kg): 30 / 25 / 20 / 15
- Vertical Max Payload (kg): 10 / 7 / 4 / 2
- Repeatability: C7 ± 0.01mm; C5 ± 0.006
- Max Stroke: 1,140mm
- Typical Lead Time: 8-10 Weeks

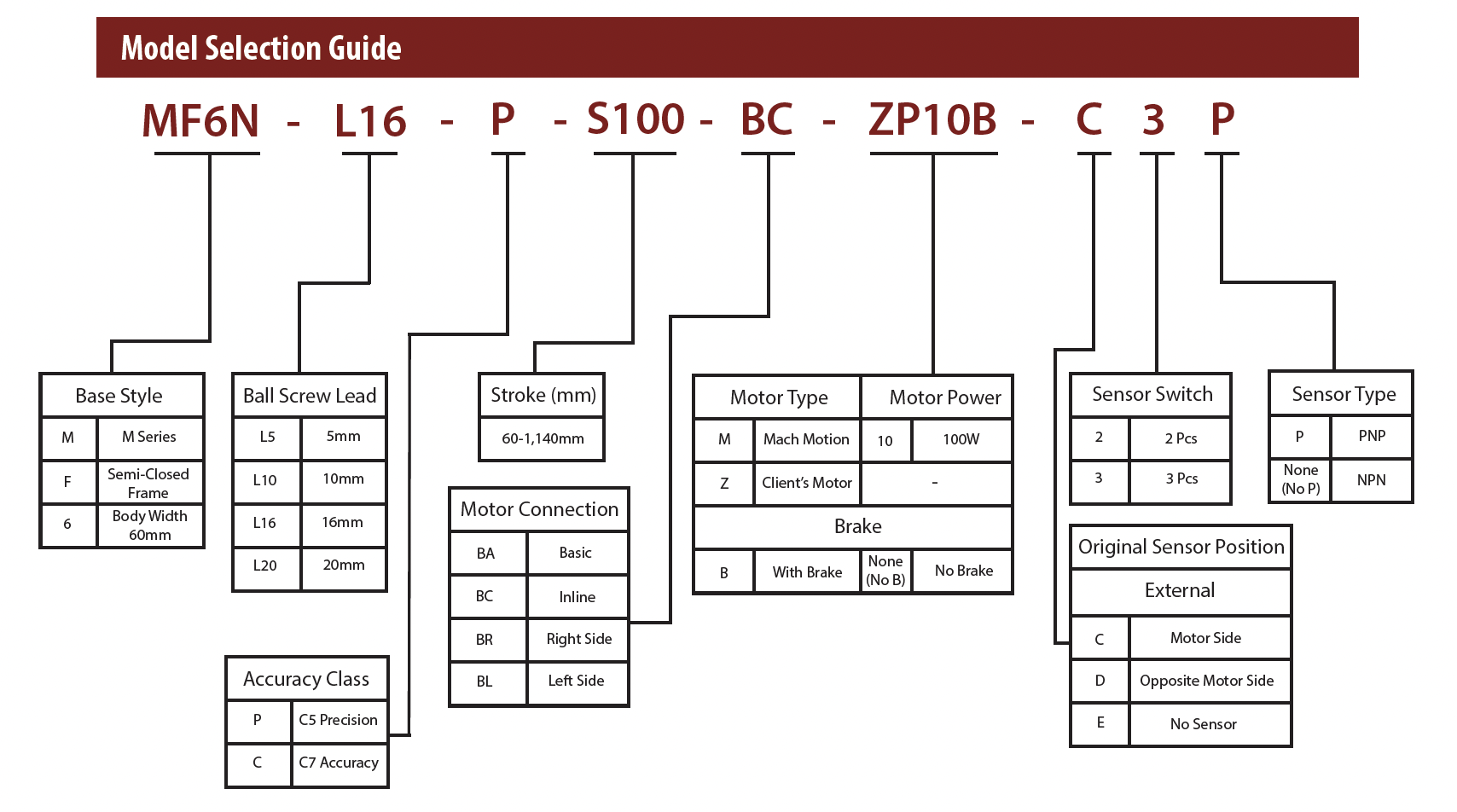

Part Number Configurator
Technical Specifications
| Motor Power AC (W) | 100W | |||
| Ball Screw Diameter mm) | C7 - 16mm, C5 - 16mm | |||
| Repeatability (mm) | C7 - ±0.01, C5 - ±0.006 | |||
| Linear Guide | 18 x 12.5 - 1 | |||
| Coupling (mm) Motor Side x Ball Screw Side | 8 x 10mm | |||
| Motor Output | 100W | |||
| Home Sensor - Outside | EE-SX672(NPN), EE-SX672P (PNP) | |||
| Home Sensor - Outside Guide | EE-SX674(NPN), EE-SX674P (PNP) | |||
| Vertical Max. Payload (kg) | 10 | 7 | 4 | 2 |
| Ball Screw Lead (mm) | 5mm | 10mm | 16mm | 20mm |
| Horizontal Max. Payload (kg) | 30 | 25 | 25 | 15 |
| Rated Thrust (N) | 330 | 165 | 100 | 85 |
| Max Speed (mm/sec) 3000 Motor Speed (rpm/min) | 250 | 500 | 800 | 1,000 |

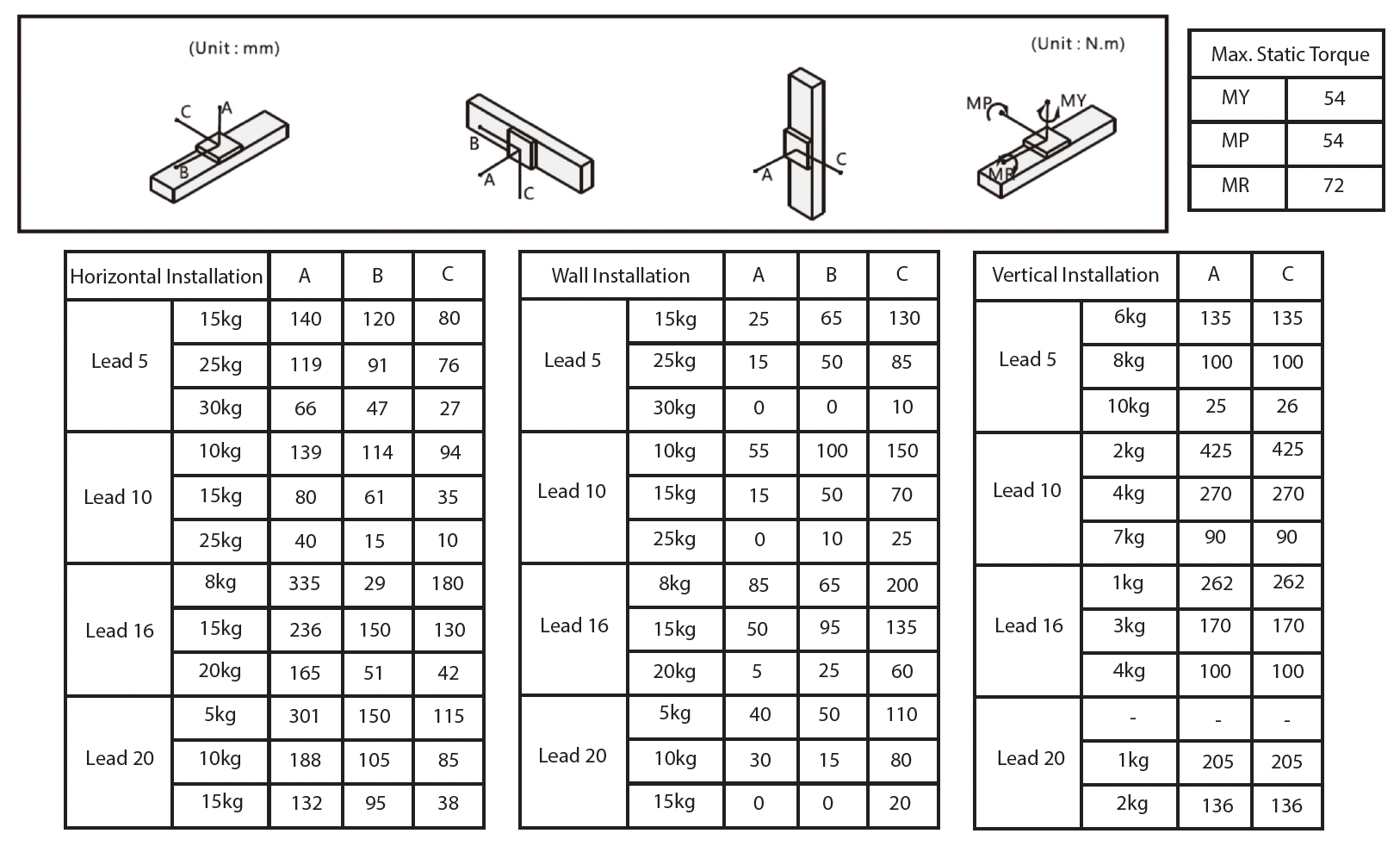

Maximum Static Torque

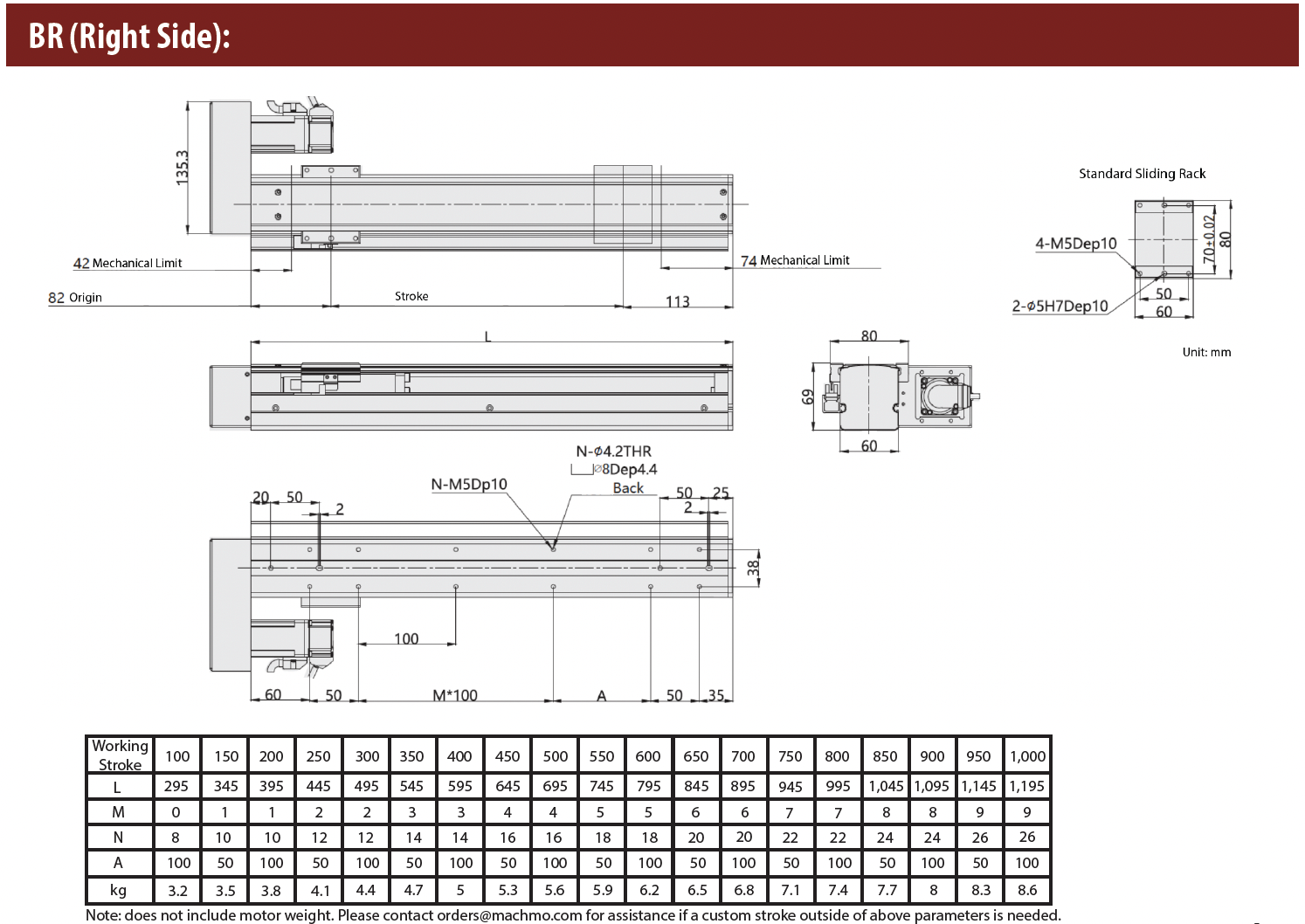

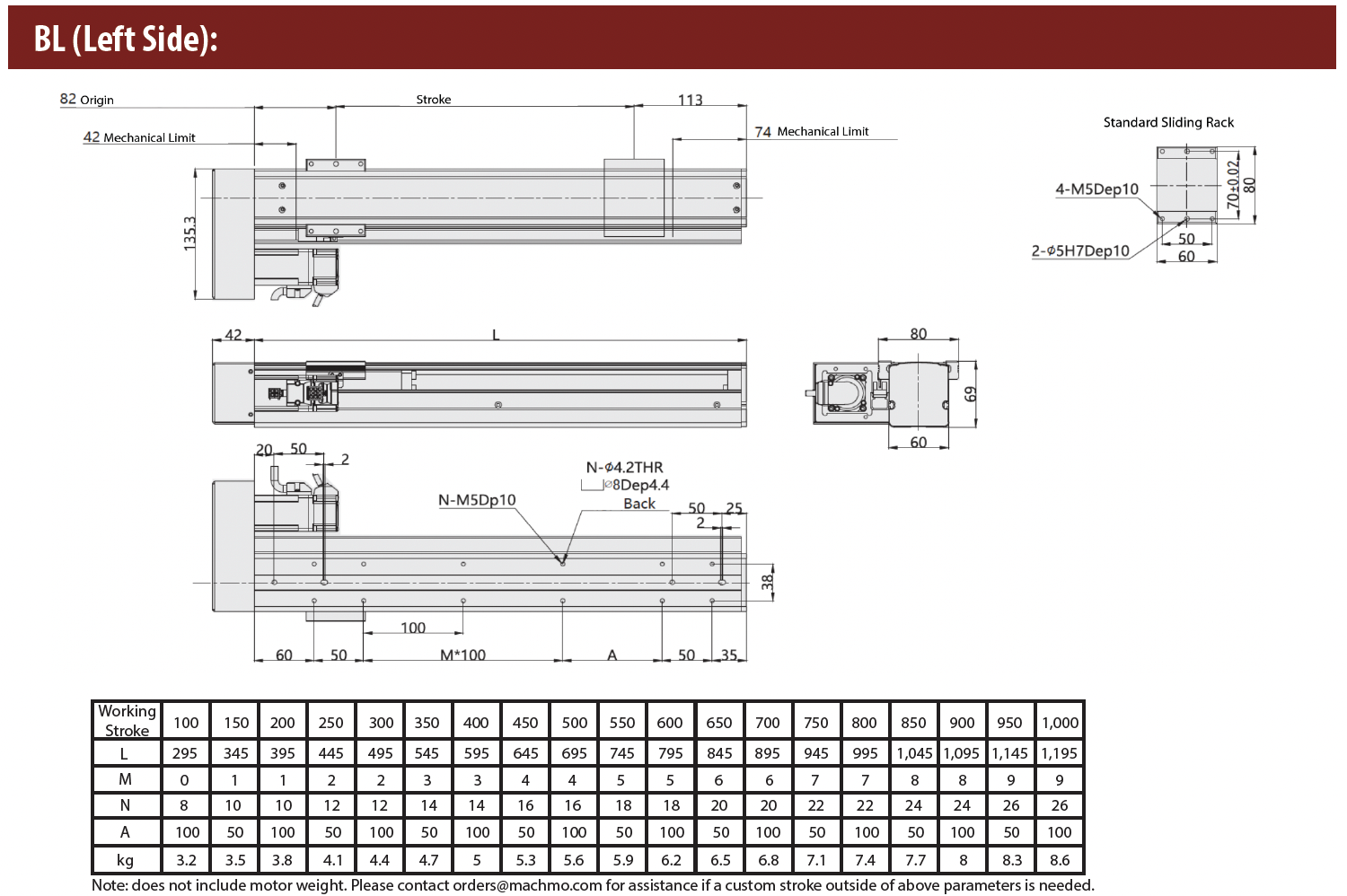

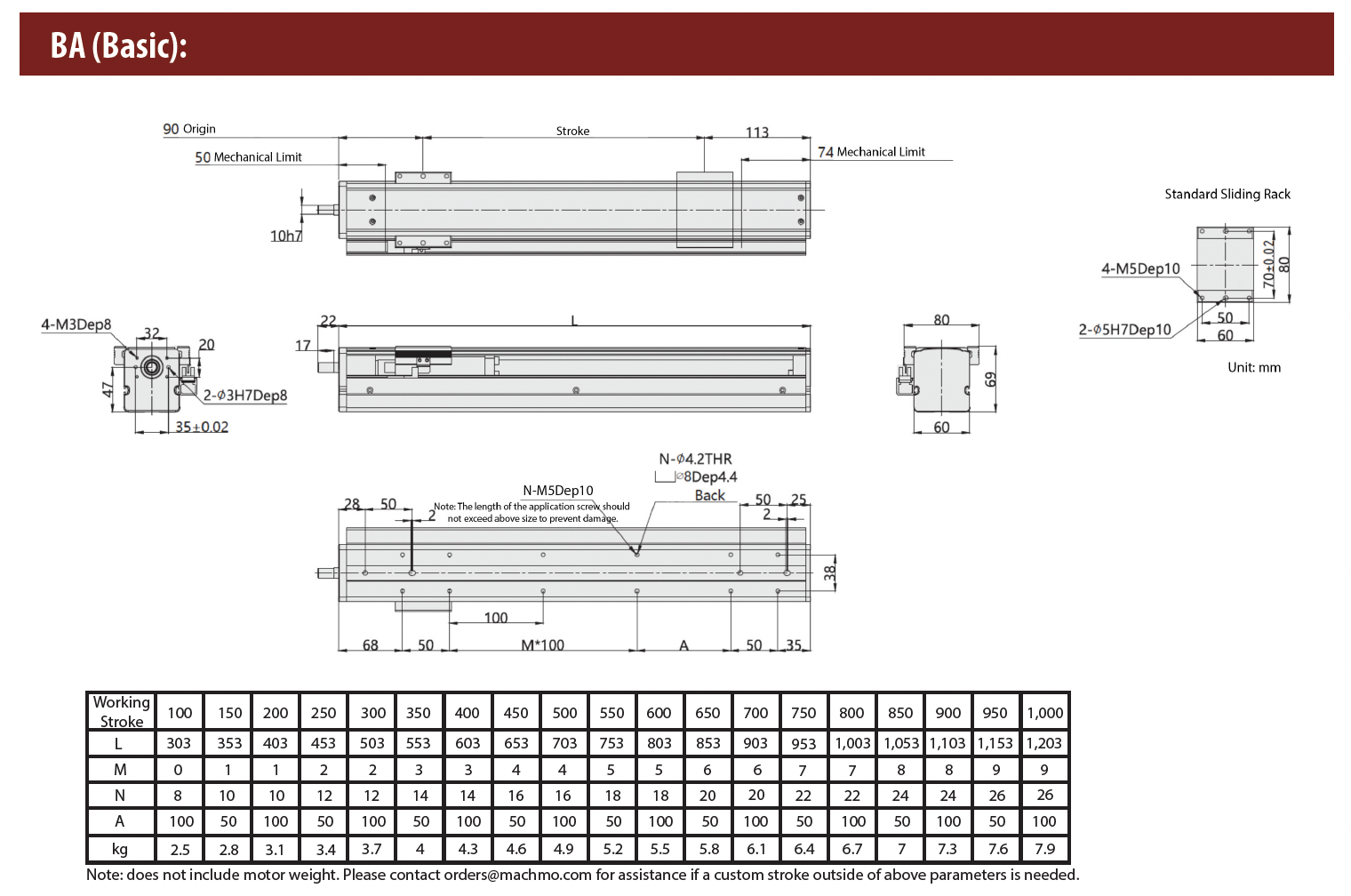

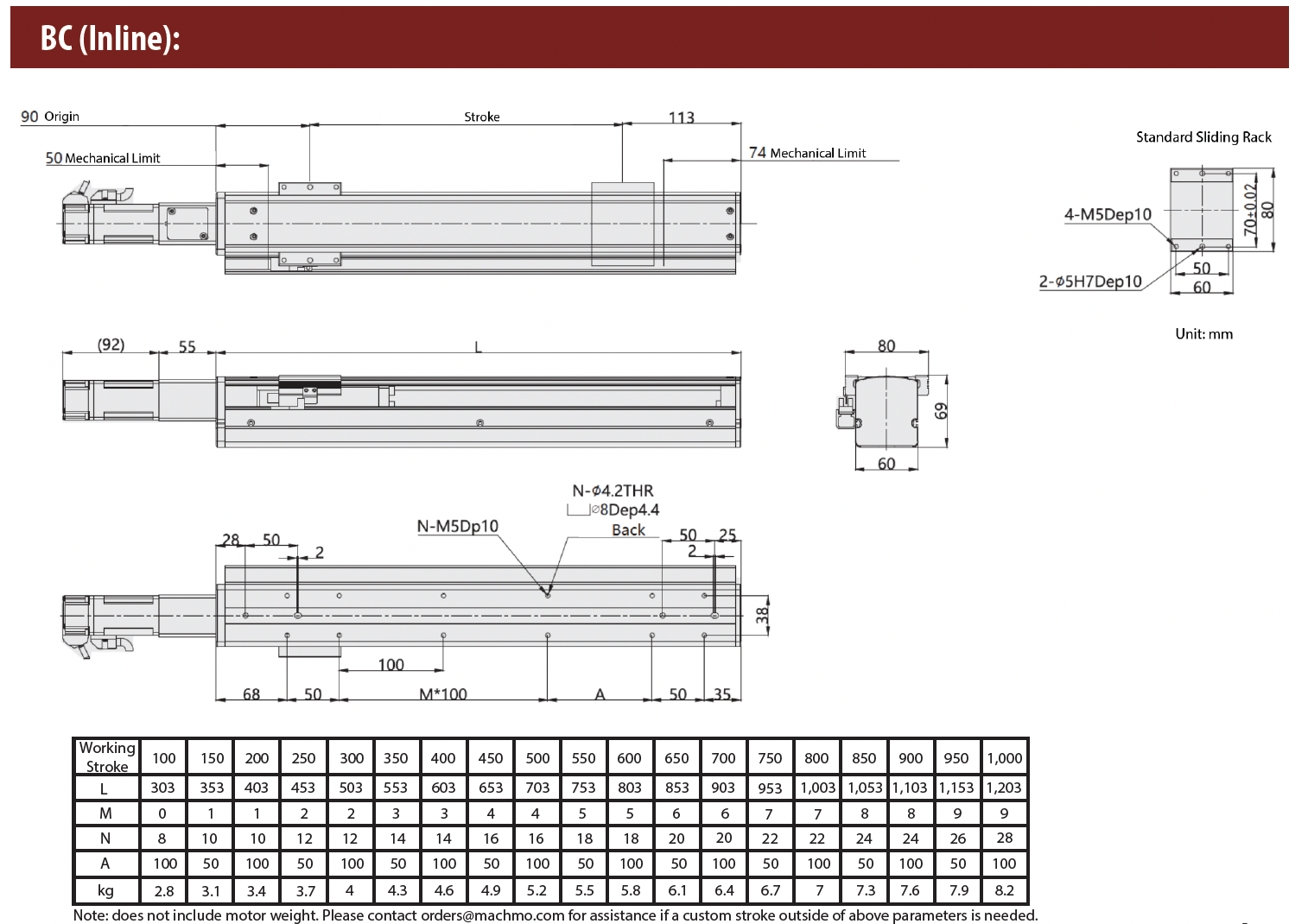

Dimensions
Downloads
Catalog Download: MT-MF Ball Screw Drives Catalog.pdf
