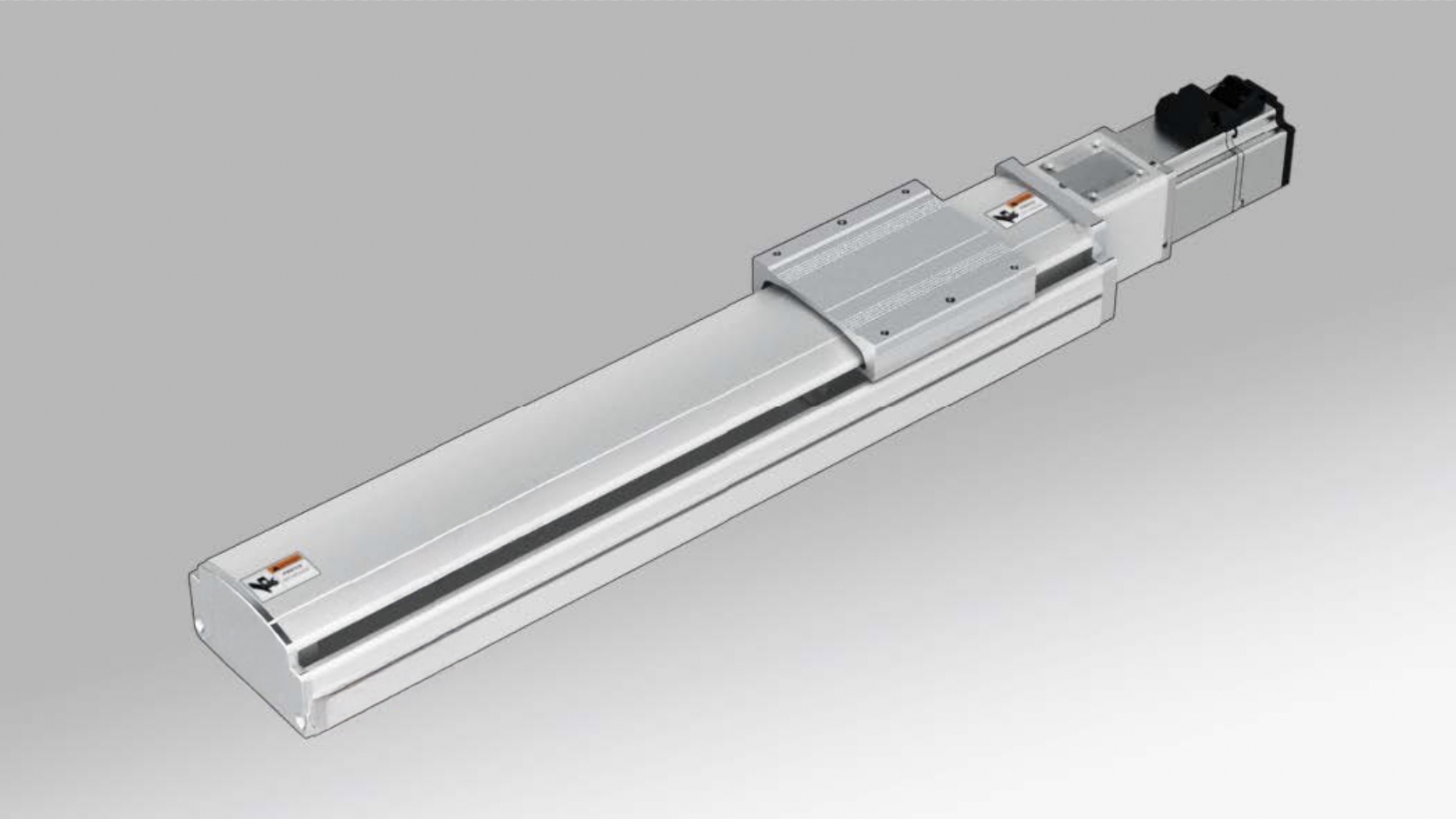

Compatible Motor Size (AC): 100W / 200W / 400W- Ball Screw Diameter: 16mm
- Ball Screw Lead (mm): 5 / 10 / 16 / 20
- Horizontal Max Payload (kg): 50 / 65 / 65
- Vertical Max Payload (kg): 12 / 15 / 18
- Repeatability: C7 ± 0.01mm; C5 ± 0.006
- Max Stroke: 1,000mm
Part Number Configurator
Technical Specifications
| Motor Power AC (W) | 100W / 200W / 400W | |||
| Ball Screw Diameter mm) | C7 - 16mm, C5 - 16 mm |
|||
| Repeatability (mm) | C7 - ±0.01, C5 - ±0.006 | |||
| Ball Screw Lead (mm) | 5mm | 10mm | 16mm | 20mm |
| Max Speed (mm/sec) 3000 Motor Speed (rpm/min) | 250 | 500 | 800 | 1,000 |
| Horizontal Max. Payload (kg) | 50 / 65 / 65 | 30 / 39 / 45 | 22/28/33 | 18 / 20 / 23 |
| Vertical Max. Payload (kg) | 12 / 15 / 18 | 8 / 10 / 12 | 5 / 6 / 7 | 3 / 4/ 5 |
| Rated Thrust (N) | 330 / 683 / 1,388 | 165 / 341 / 694 | 100 / 213 / 433 | 85 / 174 / 347 |
| Linear Guide | 42 x 9.5 - 1 | |||
| Coupling (mm) Motor Side x Ball Screw Side | 8 x 10mm | 11 x 10mm | 14 x 10mm | 14 x 10mm |
| Motor Output | 100W | 200W | 200W | 400W |
| Home Sensor - Outside | EE-SX672(NPN), EE-SX672P (PNP) | |||
| Home Sensor - Outside Guide | EE-SX674(NPN), EE-SX674P (PNP) | |||
Maximum Static Torque

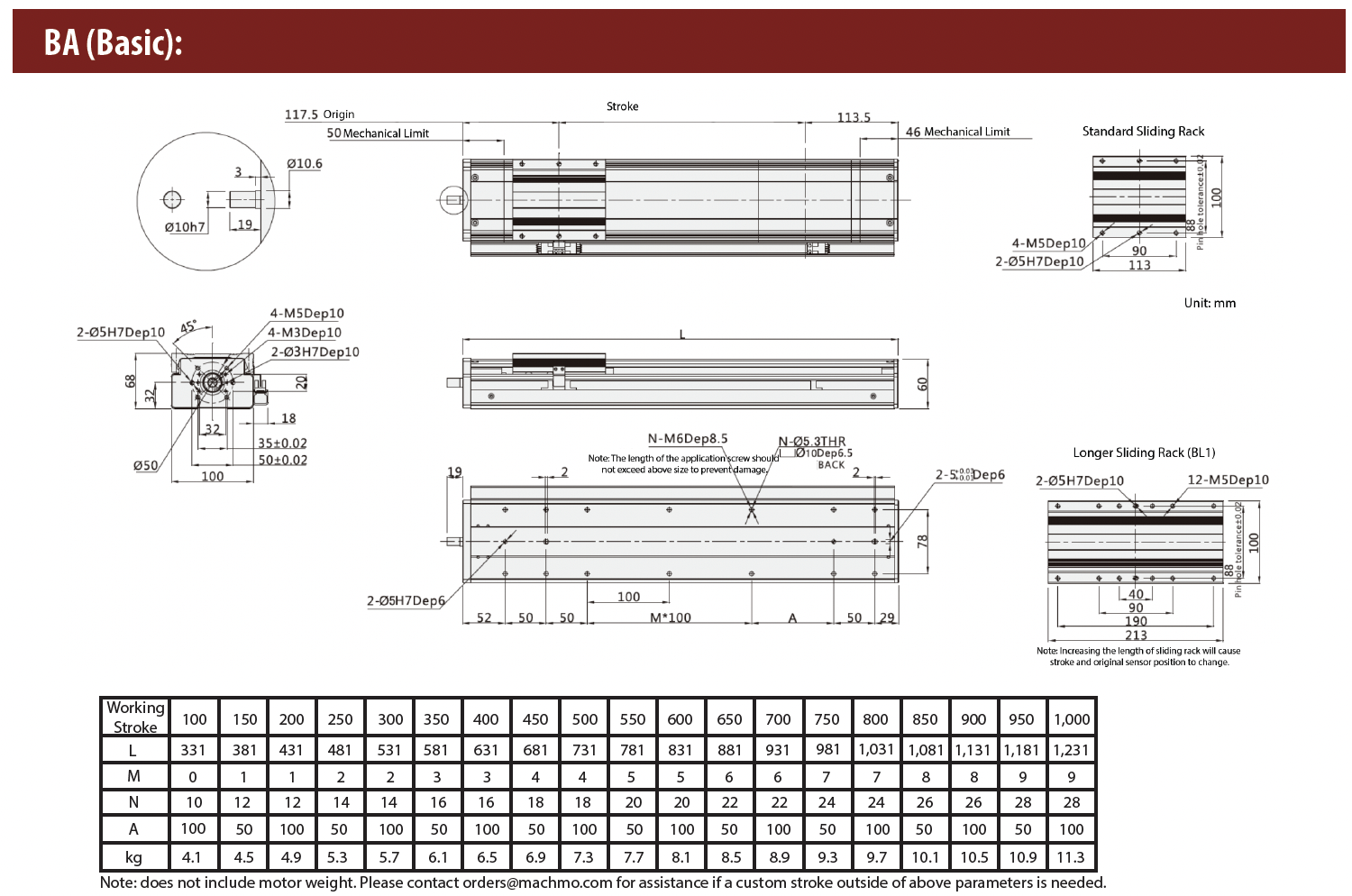

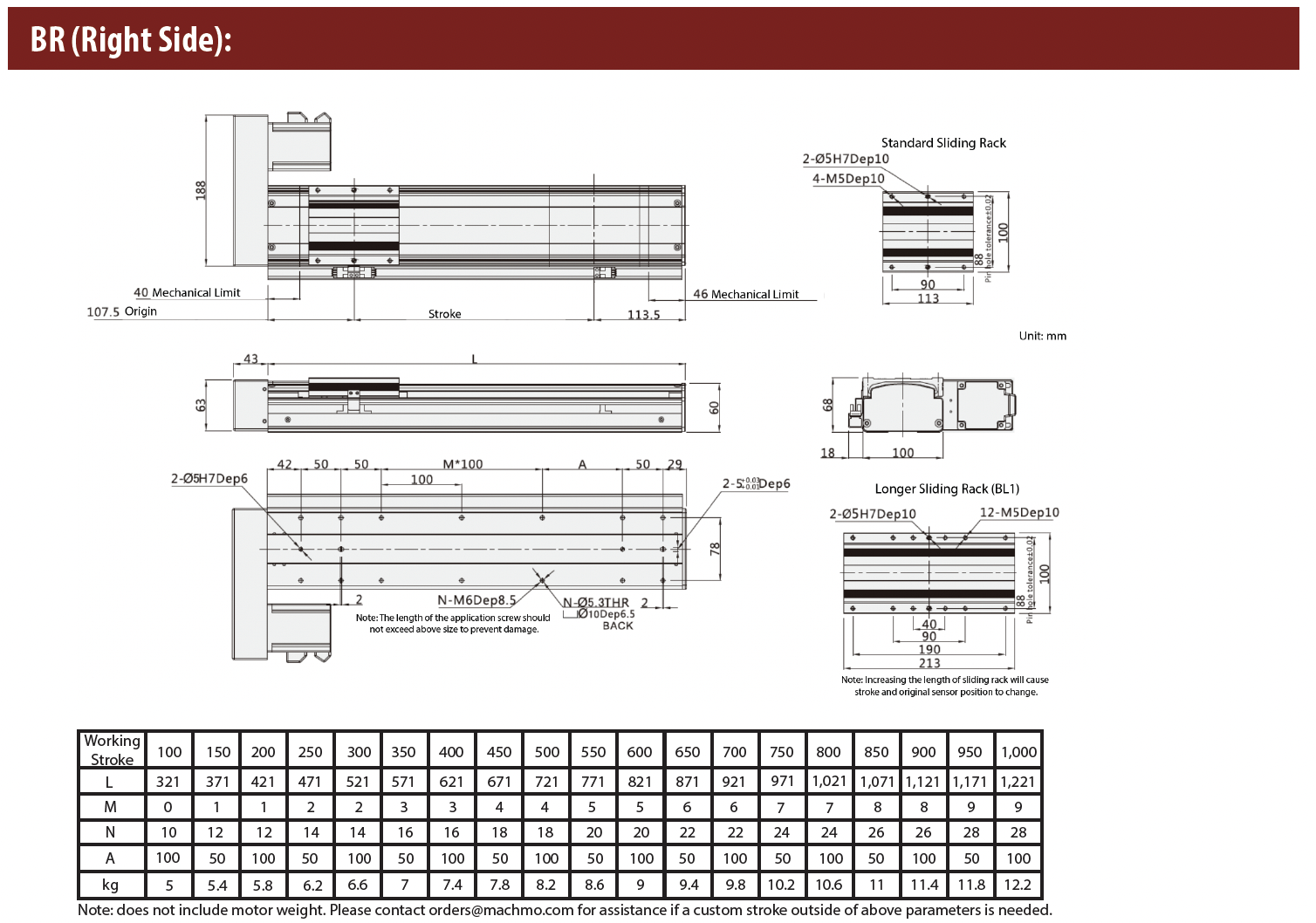

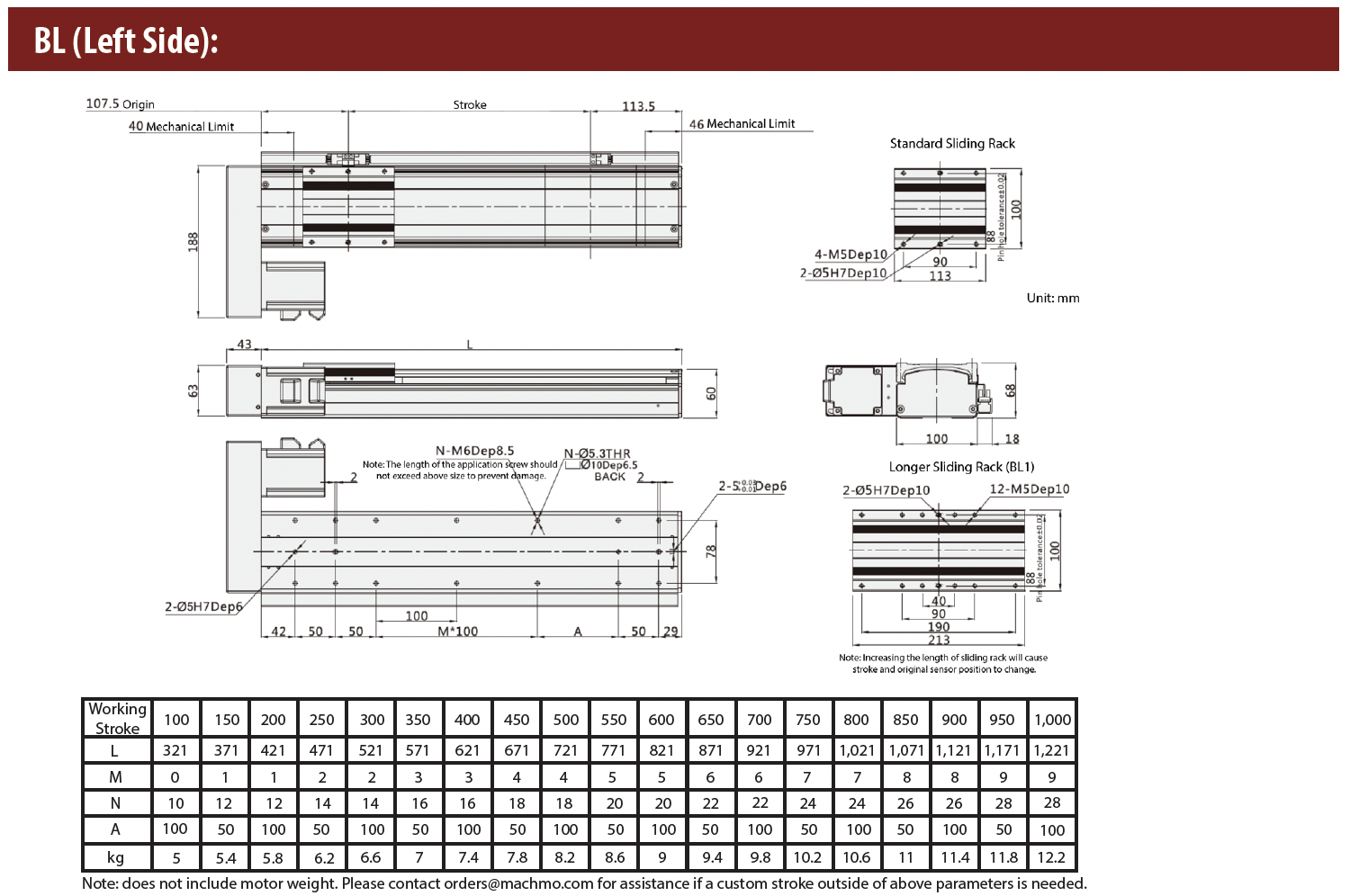

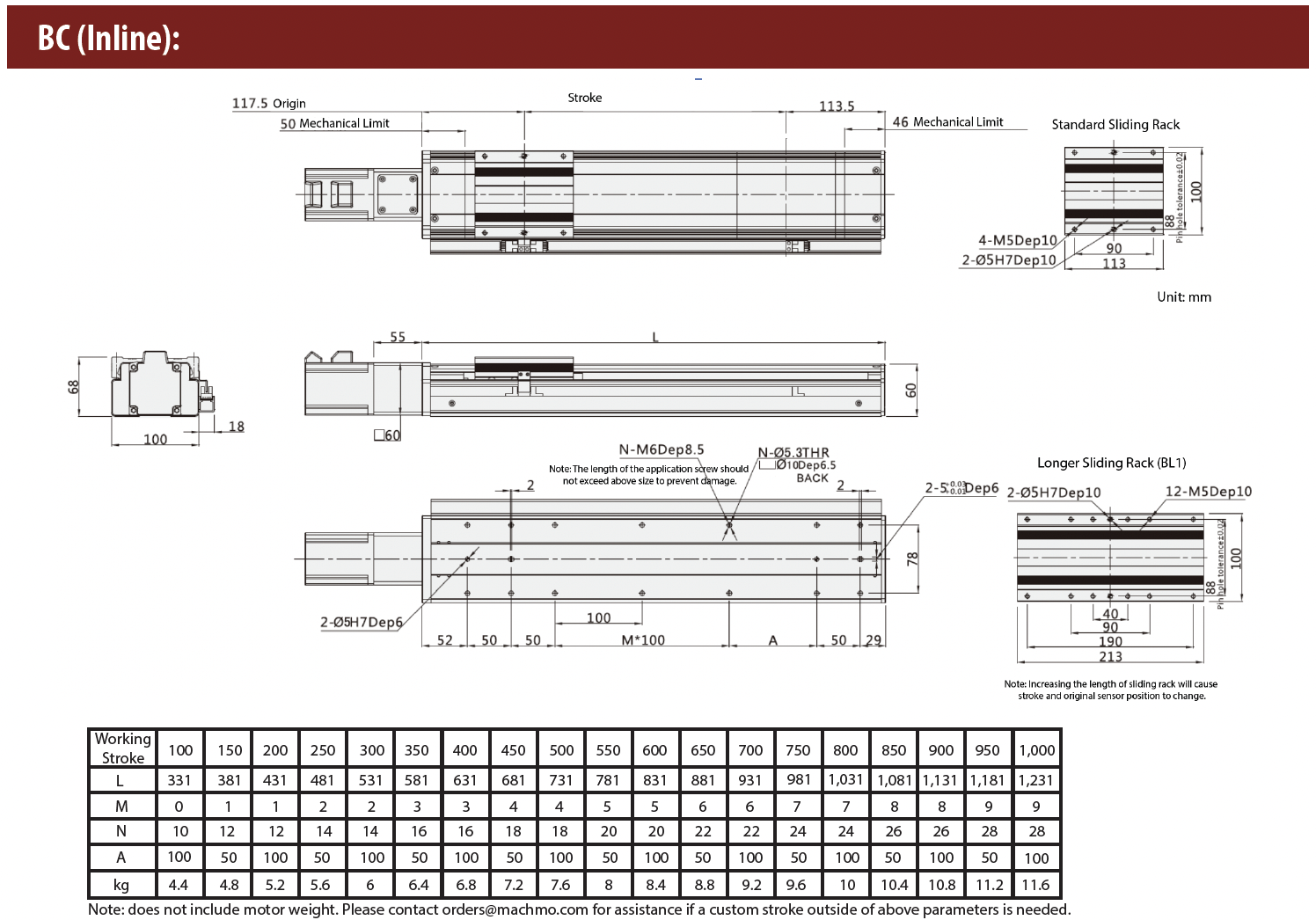

Dimensions

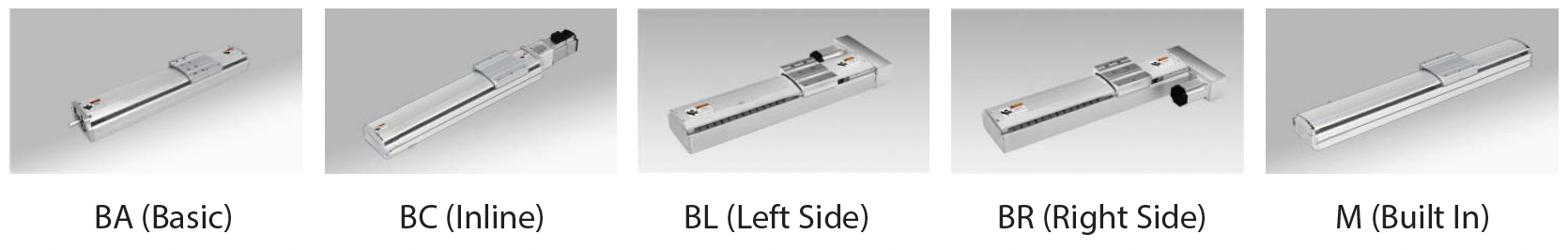

Motor Mount Location
Downloads
Catalog Download: MT-MF Ball Screw Drives Catalog.pdf
