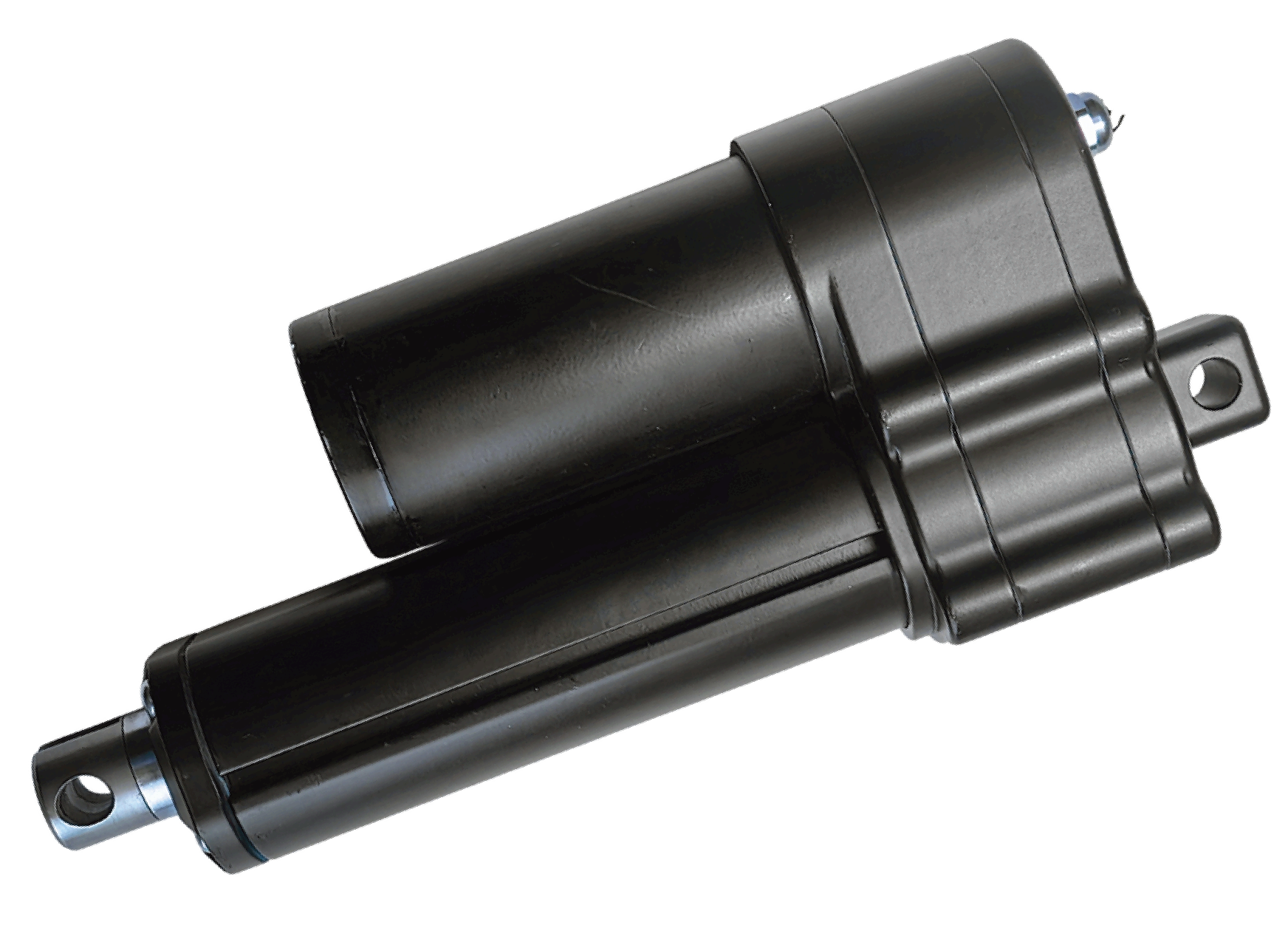

MLA-27

12 ~ 48VDC Motor
Up to 6,000N Dynamic Load
Limit Switches: Internal
Position Feedback Available:
- Endstop Signal
- Hall Sensor
- Potentiometer
- Reed Switches
Maximum Stroke: 1,000mm
Protection Level: IP66
Noise Level: ≤50 dB
Color: Black

Specifications

Code	Lead Screw	Max. Dynamic Load (N)	Max. Self-Locking Load (N)	Reduction Ratio	Pitch (mm)	Max. No Load Speed (mm/s)	Max. Full Load Speed (mm/s)	Max. Stroke - No Pot. (mm)	Max. Stroke -With Pot. (mm)
A	Acme Screw	4,000	6,000	30:1	4	6.5	4	800	265
B		3,000	5,000	20:1	4	10	6.5	1,000	265
C		1,500	3,000	10:1	4	20	12	1,000	265
D		2,500	3,500	30:1	7.5	13	7	1,000	500
E		1,500	2,500	20:1	7.5	18	11	1,000	500
F		600	1,000	10:1	7.5	32	23	1,000	500
G	Ball Screw	6,000	8,000	30:1	4	6.5	4.5	500	265
H		4,000	6,000	20:1	4	10	7	800	265
I		2,000	3,000	10:1	4	20	15	1,000	265
