General Environment Screw Module

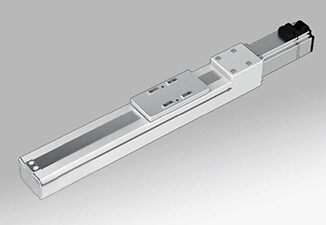

Compatible Motor Size (AC): 100W
Ball Screw Diameter: 8mm
Ball Screw Lead (mm): 2 / 12
Horizontal Max Payload (kg): 5 / 3
Vertical Max Payload (kg): 1.5 / 1
Repeatability: C7 ± 0.01mm; C5 ± 0.006
Max Stroke: 240mm

Compatible Motor Size (AC): 100W
Ball Screw Diameter: 12mm
Ball Screw Lead (mm): 5 / 10
Horizontal Max Payload (kg): 10 / 5
Vertical Max Payload (kg): 3 / 1.5
Repeatability: C7 ± 0.01mm; C5 ± 0.006
Max Stroke: 600mm

Compatible Motor Size (AC): 100W
Ball Screw Diameter: 12mm
Ball Screw Lead (mm): 5 / 10
Horizontal Max Payload (kg): 30 / 15
Vertical Max Payload (kg): 10 / 5
Repeatability: C7 ± 0.01mm; C5 ± 0.006
Max Stroke: 600mm

Compatible Motor Size (AC): 100W
Ball Screw Diameter: 16mm
Ball Screw Lead (mm): 5 / 10 / 16 / 20
Horizontal Max Payload (kg): 30 / 25 / 20 / 15
Vertical Max Payload (kg): 10 / 7 / 4 / 2
Repeatability: C7 ± 0.01mm; C5 ± 0.006
Max Stroke: 1,140mm

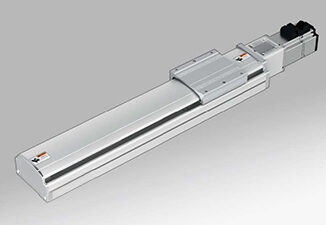

Compatible Motor Size (AC): 100W / 200W / 400W
Ball Screw Diameter: 16mm
Ball Screw Lead (mm): 5 / 10 / 16 / 20
Horizontal Max Payload (kg): 20 / 30 / 35
Vertical Max Payload (kg): 8 / 10 / 12
Repeatability: C7 ± 0.01mm; C5 ± 0.006
Max Stroke: 1,000mm

Compatible Motor Size (AC): 100W / 200W / 400W
Ball Screw Diameter: 16mm
Ball Screw Lead (mm): 5 / 10 / 16 / 20
Horizontal Max Payload (kg): 50 / 65 / 65
Vertical Max Payload (kg): 12 / 15 / 18
Repeatability: C7 ± 0.01mm; C5 ± 0.006
Max Stroke: 1,000mm

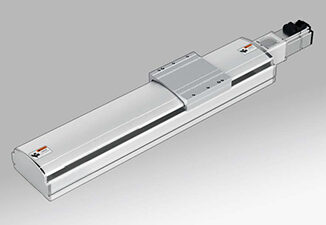

Compatible Motor Size (AC): 200W / 400W
Ball Screw Diameter: 16mm
Ball Screw Lead (mm): 5 / 10 / 16 / 20
Horizontal Max Payload (kg): 70 / 84
Vertical Max Payload (kg): 17 / 20
Repeatability: C7 ± 0.01mm; C5 ± 0.006
Max Stroke: 1,200mm

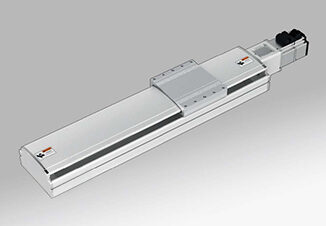

Compatible Motor Size (AC): 400W / 750W
Ball Screw Diameter: 20mm
Ball Screw Lead (mm): 5 / 10 / 20 / 40
Horizontal Max Payload (kg): 110 / 115
Vertical Max Payload (kg): 40 / 45
Repeatability: C7 ± 0.01mm; C5 ± 0.006
Max Stroke: 1,500mm

Compatible Motor Size (AC): 400W / 750W
Ball Screw Diameter: 20mm
Ball Screw Lead (mm): 5 / 10 / 20 / 40
Horizontal Max Payload (kg): 120 / 120
Vertical Max Payload (kg): 45 / 50
Repeatability: C7 ± 0.01mm; C5 ± 0.006
Max Stroke: 1,500mm

Compatible Motor Size (AC): 400W / 750W
Ball Screw Diameter: 20mm
Ball Screw Lead (mm): 5 / 10 / 20 / 40
Horizontal Max Payload (kg): 120 / 120
Vertical Max Payload (kg): 45 / 50
Repeatability: C7 ± 0.01mm; C5 ± 0.006
Max Stroke: 1,500mm

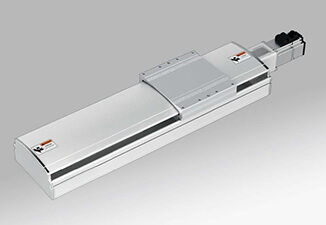

Compatible Motor Size (AC): 750W / 1,000W
Ball Screw Diameter: 32mm
Ball Screw Lead (mm): 5 / 10 / 20 / 32
Horizontal Max Payload (kg): 250 / 350
Vertical Max Payload (kg): 100 / 140
Repeatability: C7 ± 0.01mm; C5 ± 0.006
Max Stroke: 2,000mm
