In Stock

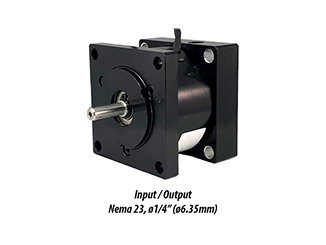

Type: NEMA 23 Front Brake
Voltage: 24VDC
Static Torque: 0.34Nm Min.
Input: ø1/4″ | ø6.35mm
Output: ø1/4″ | ø6.35mm

Type: NEMA 23 Front Brake
Voltage: 24VDC
Static Torque: 0.57Nm Min.
Input: ø1/4″ | ø6.35mm
Output: ø1/4″ | ø6.35mm

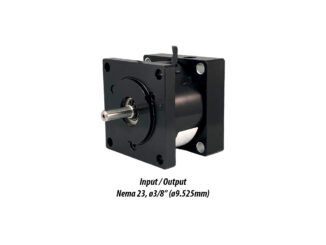

Type: NEMA 23 Front Brake
Voltage: 24VDC
Static Torque: 0.5Nm Min.
Input: ø3/8″ | ø9.252mm
Output: ø3/8″ | ø9.252mm

Type: NEMA 24 Front Brake
Voltage: 24VDC
Static Torque: 1.5Nm Min.
Input: ø12mm | ø0.47in
Output: ø12mm | ø0.47in

Type: NEMA 24 Front Brake
Voltage: 24VDC
Static Torque: 1.5Nm Min.
Input: ø14mm | ø0.55″
Output: ø14mm | ø0.55″

Type: NEMA 34 Front Brake
Voltage: 24VDC
Static Torque: 1.68Nm Min.
Input: ø1/2″ | ø12.7mm
Output: ø1/2″ | ø12.7mm

Type: NEMA 34 Front Brake
Voltage: 24VDC
Static Torque: 1.68Nm Min.
Input: ø14mm | ø0.55in
Output: ø14mm | ø0.55in

Rated Voltage: 24VDC
Max Load: 600N
Max Speed: 9mm/s
Stroke: 50mm
Limit Switches: Internal
Position Feedback: None

Rated Voltage: 24VDC
Max Load: 750N
Max Speed: 7mm/s
Stroke: 50mm
Limit Switches: Internal
Position Feedback: Hall Sensor

Rated Voltage: 24VDC
Max Load: 3,000N
Max Speed: 18mm/s
Stroke: 152mm
Limit Switches: Internal
Position Feedback: None
