General Environment Belt Module

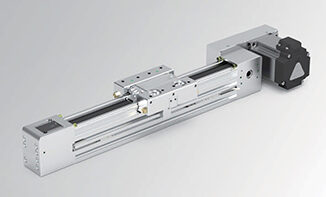

MEB4

Compatible Motor Size (AC): 400W / 750W / 86 steppers
Guide Rod Diameter: 6mm
Lead (mm): 40 / 80
Horizontal Max Payload (kg): 8
Vertical Max Payload (kg): 4
Repeatability: ± 0.05mm
Max Stroke: 4,000mm

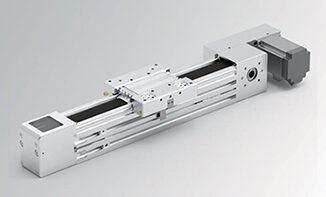

MEB6

Compatible Motor Size (AC): 400W / 750W / 86 steppers
Guide Rod Diameter: 8mm
Lead (mm): 70 / 140
Horizontal Max Payload (kg): 20
Vertical Max Payload (kg): 10
Repeatability: ± 0.05mm
Max Stroke: 4,000mm

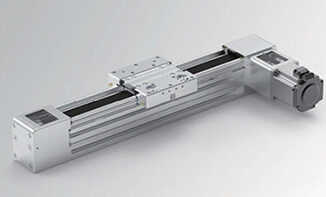

MEB8

Compatible Motor Size (AC): 400W / 750W / 86 steppers
Guide Rod Diameter: 10mm
Lead (mm): 100 / 200
Horizontal Max Payload (kg): 35
Vertical Max Payload (kg): 25
Repeatability: ± 0.05mm
Max Stroke: 4,000mm

MEB10

Compatible Motor Size (AC): 750W / 86 & 110 steppers
Guide Rod Diameter: 6mm
Lead (mm): 112 / 224
Horizontal Max Payload (kg): 45
Vertical Max Payload (kg): 30
Repeatability: ± 0.05mm
Max Stroke: 4,500mm

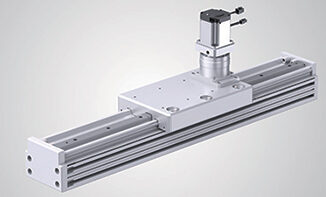

MEB16

Compatible Motor Size (AC): 750W / 86 & 110 steppers
Guide Rod Diameter: 10mm
Lead (mm): 104 / 208
Horizontal Max Payload (kg): 100
Vertical Max Payload (kg): 50
Repeatability: ± 0.05mm
Max Stroke: 4,500mm

MEB20

Compatible Motor Size (AC): 750W / 86 & 110 steppers
Guide Rod Diameter: 12mm
Lead (mm): 112 / 224
Horizontal Max Payload (kg): 150
Vertical Max Payload (kg): 70
Repeatability: ± 0.05mm
Max Stroke: 5,500mm

MEB8S2

Compatible Motor Size (AC): 400W / 750W / 86 steppers
Guide Rod Diameter: 10mm
Lead (mm): 100 / 200
Horizontal Max Payload (kg): 15
Vertical Max Payload (kg): 7
Repeatability: ± 0.05mm
Max Stroke: 4,500mm

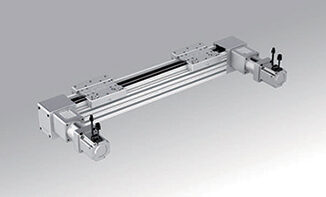

MEB10S2

Compatible Motor Size (AC): 400W / 750W / 86 steppers
Guide Rod Diameter: 10mm
Lead (mm): 112 / 224
Horizontal Max Payload (kg): 18
Vertical Max Payload (kg): N/A
Repeatability: ± 0.05mm
Max Stroke: 4,500mm

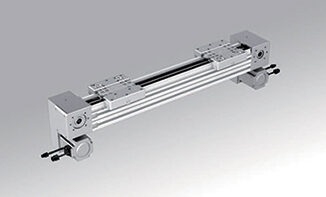

MEB16S2

Compatible Motor Size (AC): 400W / 750W / 86 steppers
Guide Rod Diameter: 12mm
Lead (mm): 104 / 208
Horizontal Max Payload (kg): 40
Vertical Max Payload (kg): N/A
Repeatability: ± 0.05mm
Max Stroke: 4,500mm

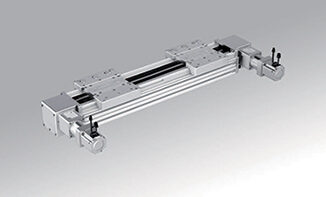

MEB20S2

Compatible Motor Size (AC): 400W / 750W / 86 stepper
Guide Rod Diameter: 12mm
Lead (mm): 112 / 224
Horizontal Max Payload (kg): 60
Vertical Max Payload (kg): N/A
Repeatability: ± 0.05mm
Max Stroke: 4,000mm

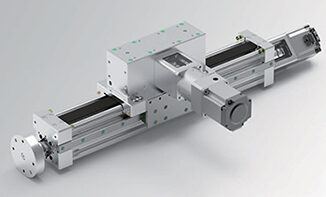

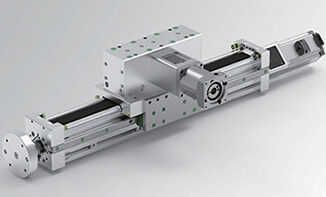

MEB6ZR

Compatible Motor Size (AC): 200W / 400W / 57
Guide Rod Diameter: 8mm
Lead (mm): 112
Horizontal Max Payload (kg): N/A
Vertical Max Payload (kg): 10
Repeatability: ± 0.05mm
Max Stroke: 1,500mm

MEB8ZR

Compatible Motor Size (AC): 400W / 750W
Guide Rod Diameter: 10mm
Lead (mm): 112
Horizontal Max Payload (kg): N/A
Vertical Max Payload (kg): 30
Repeatability: ± 0.05mm
Max Stroke: 1,500mm

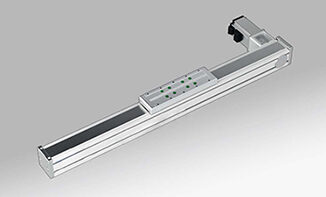

MLB6

Compatible Motor Size (AC): 400W
Synchronous Wheel Diameter: 41.38mm
Lead (mm): 130 / 65 / 43
Horizontal Max Payload (kg): 10 / 25 / 40
Vertical Max Payload (kg): 2 / 5 / 10
Repeatability: ± 0.05mm
Max Stroke: 5,700mm

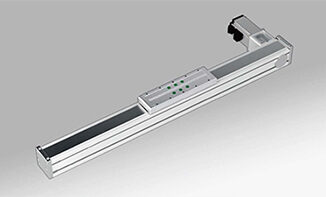

MLB6A

Compatible Motor Size (AC): 750W
Synchronous Wheel Diameter: 41.38mm
Lead (mm): 130 / 65 / 43
Horizontal Max Payload (kg): 5 / 20 / 35
Vertical Max Payload (kg): 1.5 / 4 / 8
Repeatability: ± 0.05mm
Max Stroke: 5,700mm

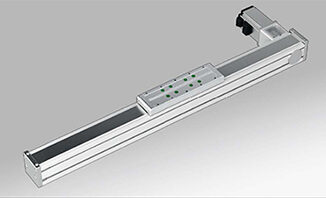

MLB8

Compatible Motor Size (AC): 750W
Synchronous Wheel Diameter: 47.75mm
Lead (mm): 150 / 75
Horizontal Max Payload (kg): 30 / 68
Vertical Max Payload (kg): 6 / 12
Repeatability: ± 0.05mm
Max Stroke: 5,700mm
