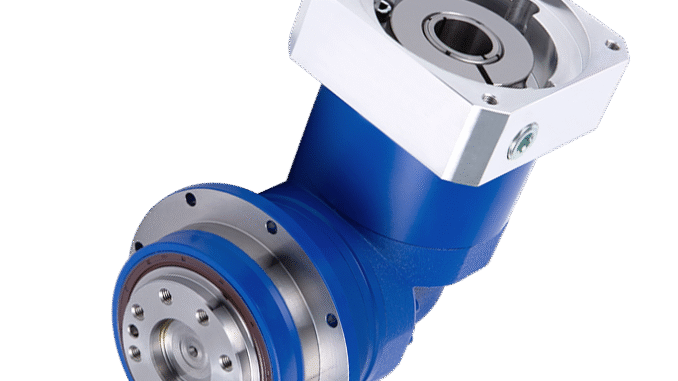

MKET Precision Planetary Reducers feature distinctive, flexible designs incorporating cylindrical crossed roller bearings designed for door drives (planetary, orthogonal shaft/hollow shaft).
Engineered for smooth operation while minimizing friction in applications requiring high torque and minimal backlash in a compact, flexible design.
Recommended Applications:
New energy lithium battery equipment, photovoltaic equipment, mobile robots, SCARA robots, parallel manipulators, printing machinery, laser cutting machines, packaging machinery, pharmaceutical machinery, pipe bending machines, spring machines, machine tools, non-standard automation equipment, automatic doors, unmanned distribution equipment, service/communication robots, industrial robots, conveyor belts, electric wheelchairs, medical beds, CT scanners.
Technical Parameters:
| Specification | Unit |
|---|---|
| Frame Size (mm) | 064, 090, 110, 140 |
| Rated Torque | 16 ~ 600Nm |
| Radial Load | 370 ~ 4,000N |
| Axial Load | 360 ~ 30,000N |
| Bearing Type | Tapered Roller Bearings |
| Weight | 1.6 ~ 50kg (4 ~ 111lbs) |
| Ratio | 4:1 ~ 100:1 |
| AD Flange / Sleeve | Yes |
| Internal Oil Seal | Yes |
Performance Data and Drawings:
MKET-064
MKET-090
MKET-110
MKET-140
MKET-200
MKET-255
Product Number Configuration
