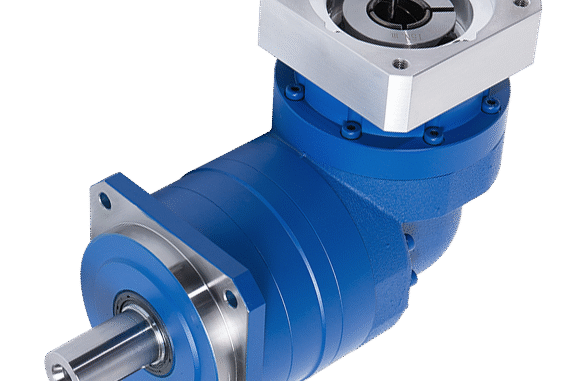

MKEL Precision Planetary Reducers are specifically engineered to meet the intricate demands of semiconductor fabrication processes, including the need for submicron accuracy with high torque transmission.
Delivering unparalleled precision, durability and efficiency in a compact design, MKEL Reducers are designed to be resistant to the harsh conditions of cleanroom environments.
Recommended Applications:
New energy lithium battery equipment, photovoltaic equipment, mobile robots, SCARA robots, parallel manipulators, printing machinery, laser cutting machines, packaging machinery, pharmaceutical machinery, pipe bending machines, spring machines, machine tools, non-standard automation equipment, automatic doors, unmanned distribution equipment, service/communication robots, industrial robots, conveyor belts, electric wheelchairs, medical beds, CT scanners.
Technical Parameters:
| Specification | Unit |
|---|---|
| Frame Size (mm) | 070, 090, 120, 155 |
| Rated Torque | 12 ~ 300Nm |
| Radial Load | 430 ~ 9,100N |
| Axial Load | 310 ~ 8,200N |
| Bearing Type | Ball Bearing |
| Weight | 1.9 ~ 20.4kg (4.2 ~ 45lbs) |
| Ratio | 3:1 ~ 100:1 |
| AD Flange / Sleeve | Yes |
| Internal Oil Seal | Yes |
Performance Data and Drawings:
MKEL-070
MKEL-090
MKEL-120
MKEL-155
Product Number Configuration
