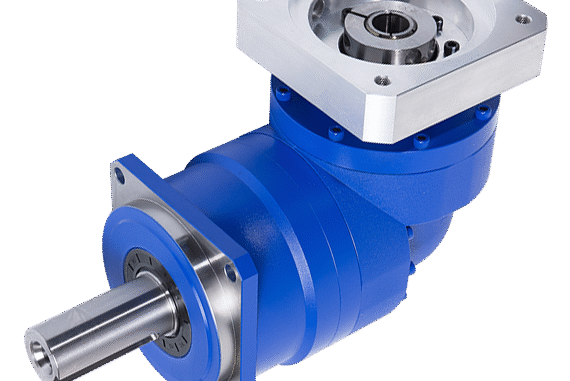

MKEB Precision Planetary Reducers feature a distinctive, flexible design that incorporates ball-bearing orthogonal axes offering unparalleled precision and durability in a compact form.
Engineered for applications demanding high torque, efficient power transmission and precise motion control, the use of ball bearings ensures smooth operation, minimizes friction, and contributes to the longevity of the motion control system. Recommended for applications across a spectrum of industries that require continuous and reliable performance.
Recommended Applications:
New energy lithium battery equipment, photovoltaic equipment, mobile robots, SCARA robots, parallel manipulators, printing machinery, laser cutting machines, packaging machinery, pharmaceutical machinery, pipe bending machines, spring machines, machine tools, non-standard automation equipment, automatic doors, unmanned distribution equipment, service/communication robots, industrial robots, conveyor belts, electric wheelchairs, medical beds, CT scanners.
Technical Parameters:
| Specification | Unit |
|---|---|
| Frame Size (mm) | 060, 090, 115, 140 |
| Rated Torque | 12 ~ 300Nm |
| Radial Load | 430 ~ 9,100N |
| Axial Load | 310 ~ 8,200N |
| Bearing Type | Ball Bearing |
| Weight | 1.8 ~ 19.6kg (4 ~ 43.2lbs) |
| Ratio | 3:1 ~ 100:1 |
| AD Flange / Sleeve | Yes |
| Internal Oil Seal | Yes |
Performance Data and Drawings:
MKEB-060
MKEB-090
MKEB-115
MKEB-140
Product Number Configuration
