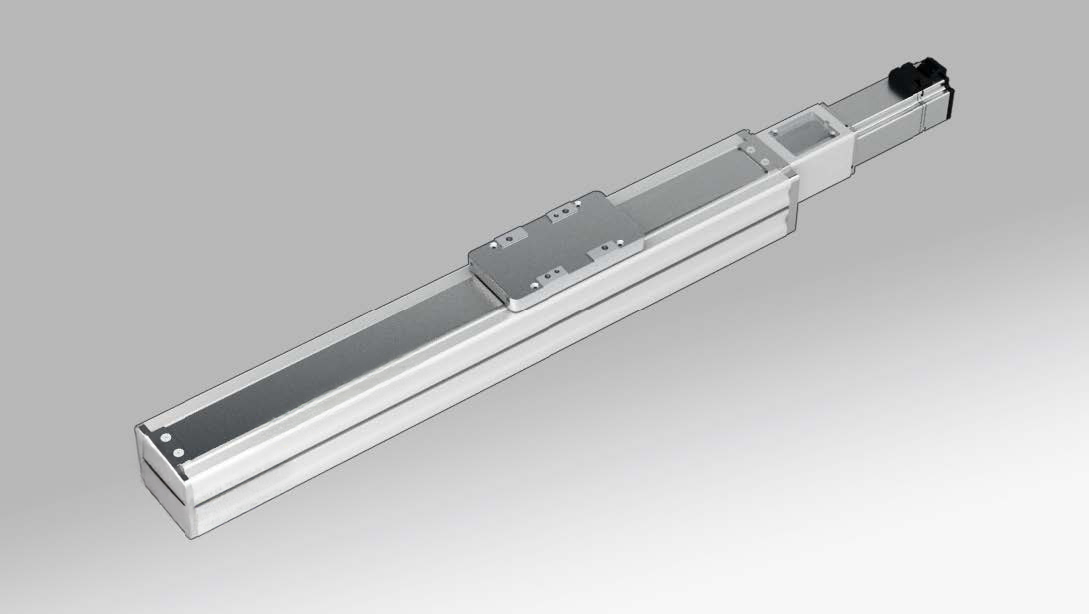

- Compatible Motor Size (AC): 100W
- Ball Screw Diameter: 12mm
- Ball Screw Lead (mm): 5 / 10
- Horizontal Max Payload (kg): 30 / 15
- Vertical Max Payload (kg): 10 / 5
- Repeatability: C7 ± 0.01mm; C5 ± 0.006
- Max Stroke: 800mm

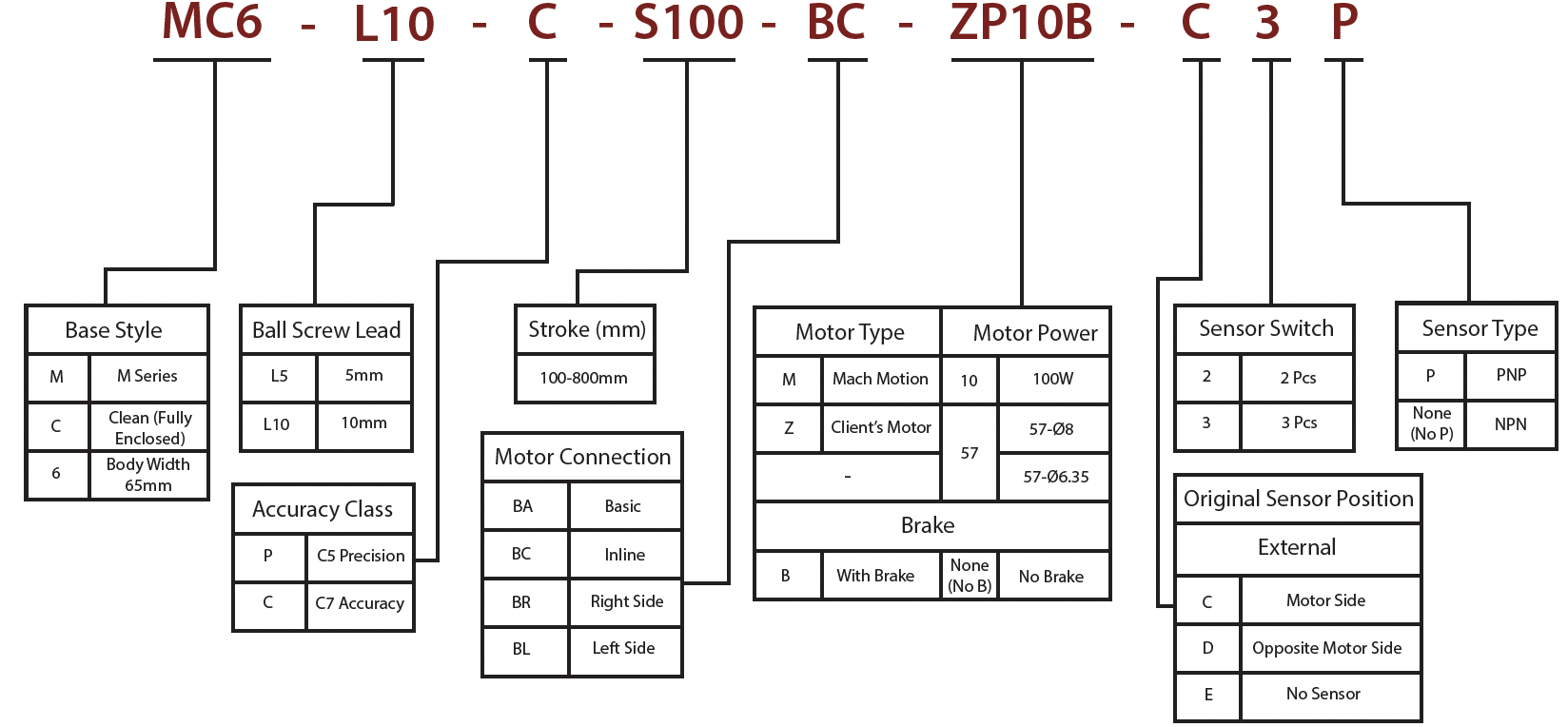

Part Number Configurator
Technical Specifications
| Motor Power AC (W) | 100W |
| Ball Screw Diameter mm) | C7 - 12mm, C5 - 12mm |
| Repeatability (mm) | C7 - ±0.01, C5 - ±0.006 |
| Ball Screw Lead (mm) | 5 / 10 |
| Max Speed (mm/sec) 3000 Motor Speed (rpm/min) | 250 / 500 |
| Horizontal Max. Payload (kg) | 30 / 15 |
| Vertical Max. Payload (kg) | 10 / 5 |
| Rated Thrust (N) | 330 / 165 |
| Range of Stroke (mm) | 100 - 800mm, 50mm intervals |
| Coupling (mm) Motor Side x Ball Screw Side | 8 x 8mm |
| Home Sensor | EE-SX674(NPN), EE-SX672P (PNP) |

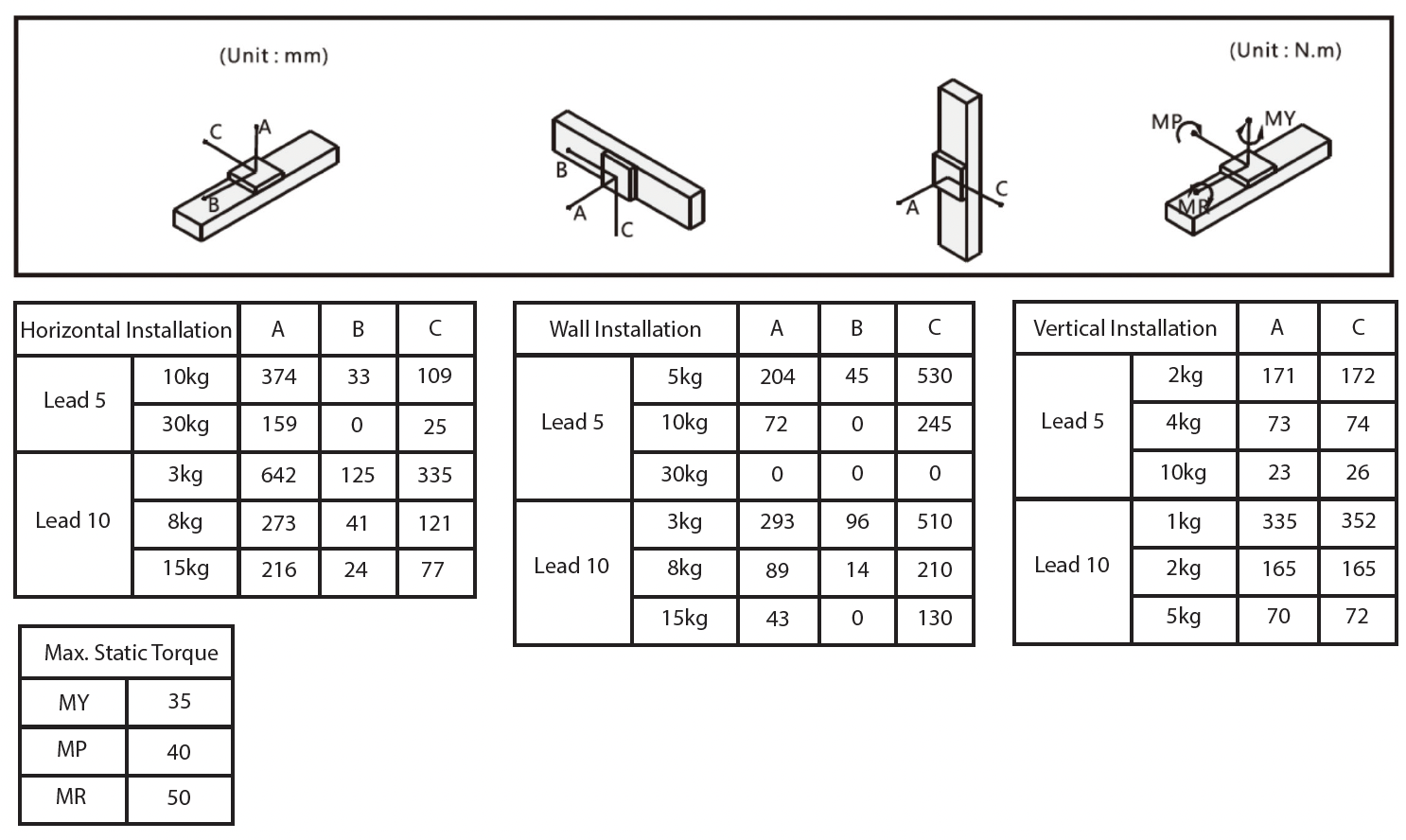

Maximum Static Torque

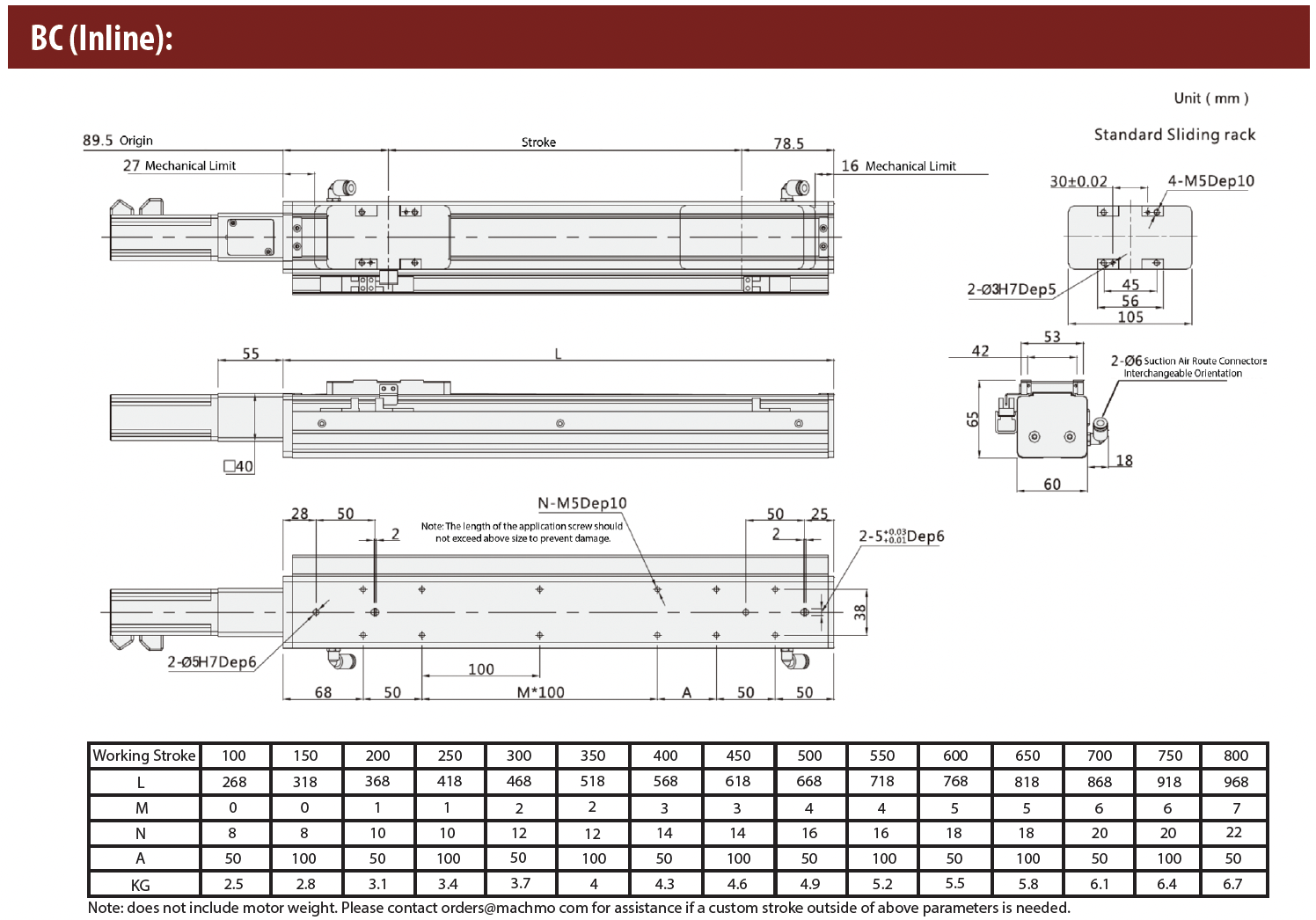

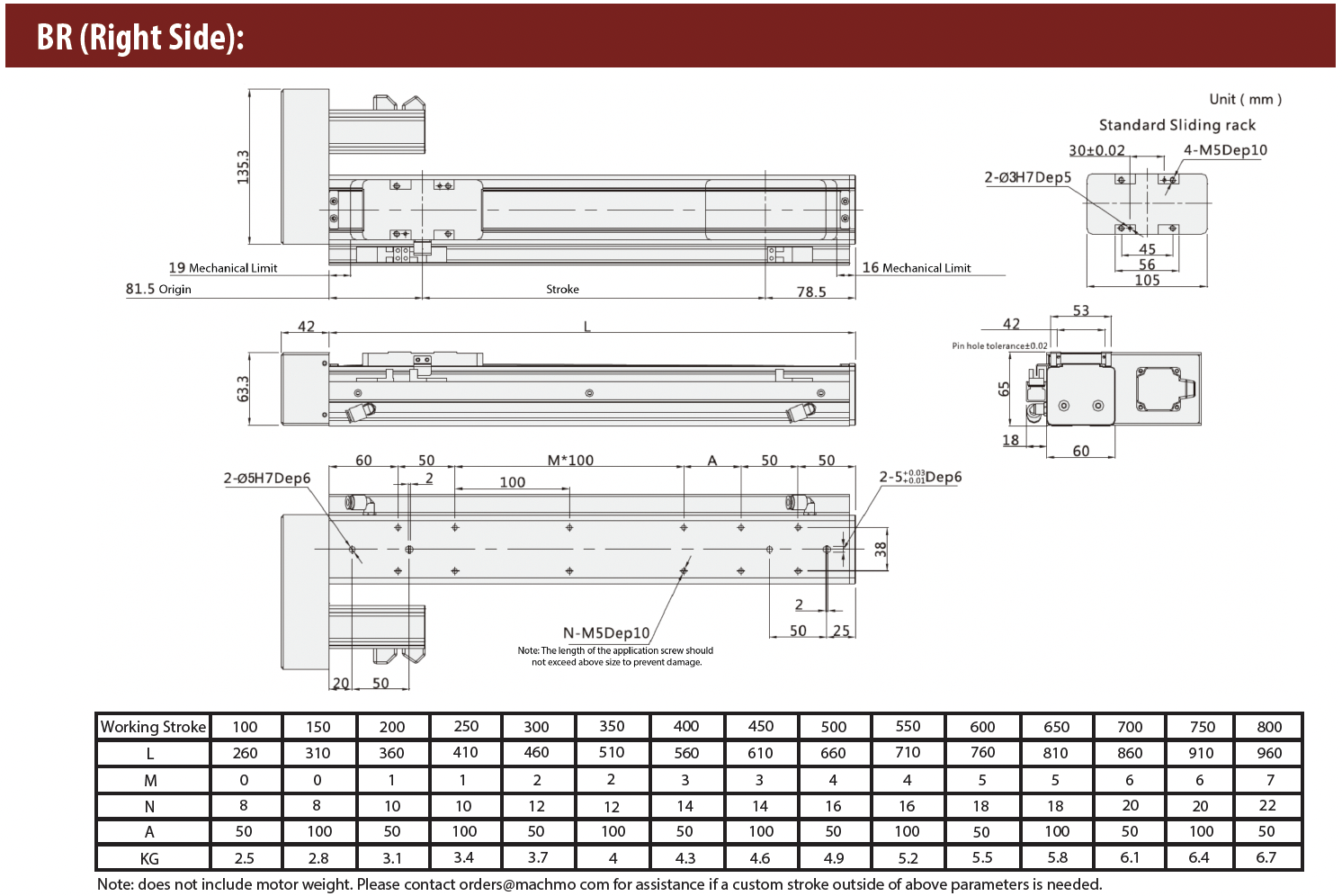

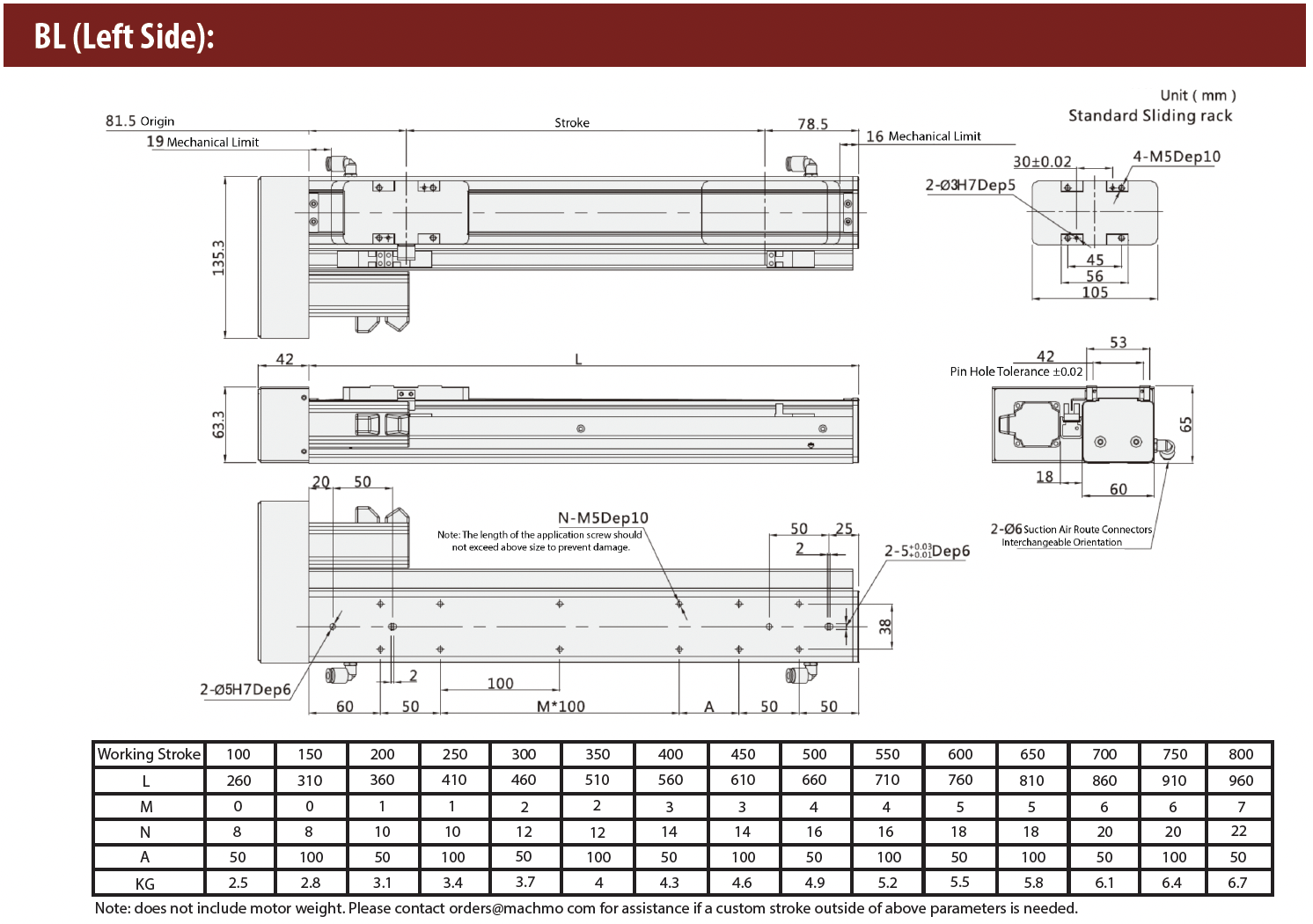

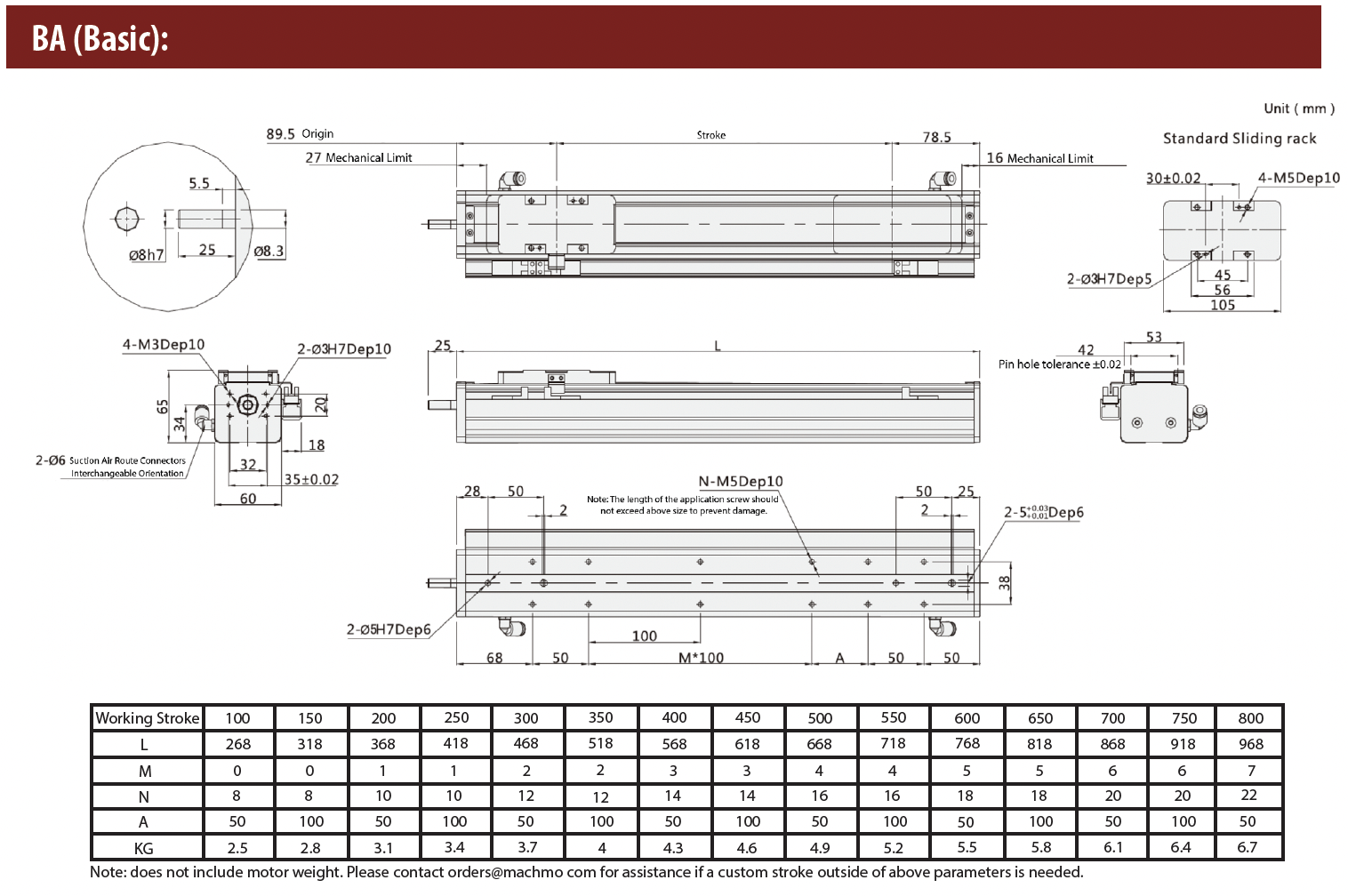

Dimensions

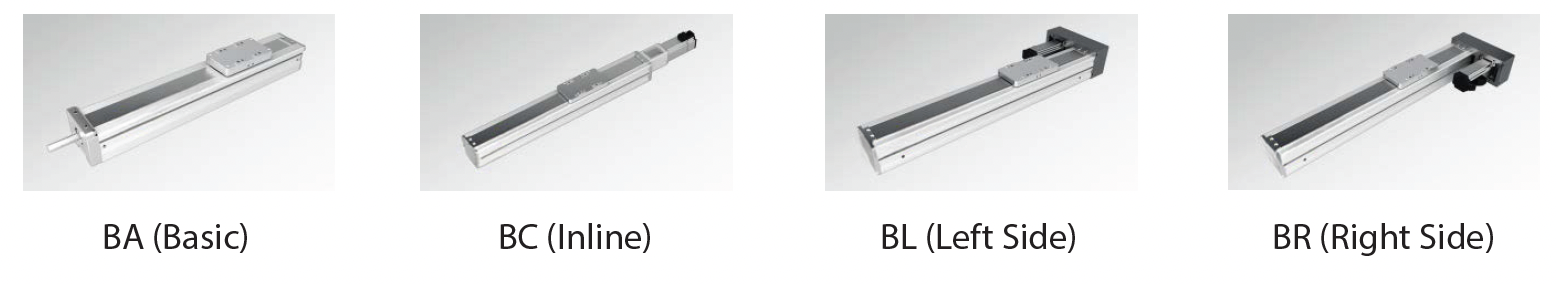

Motor Mount Location
Downloads
Catalog Download: MC Catalog 2025.pdf
