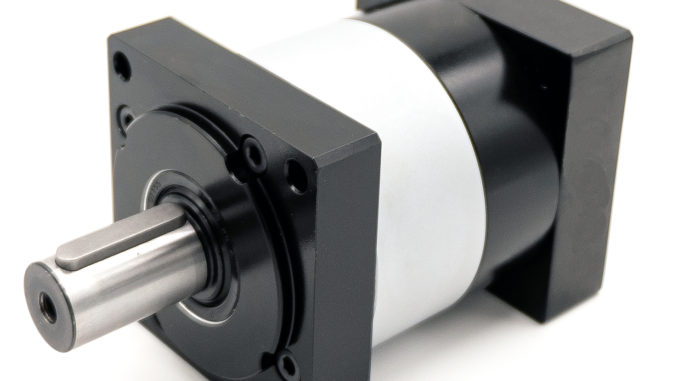

- Compatible with NEMA 23, 24 & 34 Frame
- Available in Premium and Standard Backlash
- Available in Single and Double Stage
- Available in Multiple Ratios
Custom shaft features and motor mount dimensions available. Contact us for more information. To purchase a sample, please visit ServoElements.com
Performance Data
| Specifications | Units | Stage | Measurement |
|---|---|---|---|
| Full Load Efficiency | % | 1 | 96 |
| 2 | 92 | ||
| Standard Backlash | arcmin | 1 | <12 |
| 2 | <15 | ||
| Precision Backlash | arcmin | 1 | <6 |
| 2 | <8 | ||
| Weight | kg | 1 | 3.2 |
| 2 | 4.5 | ||
| Noise | dB(A) | 64 | |
| Lifetime | hr | 20,000 | |
| Max Radial Load | N | 2450 | |
| Max Axial Load | N | 2200 | |
| Max Input Speed | min-1 | 8000 | |
| Torsional Stiffness | Nm/arcmin | 8 | |
| Operating Temperature | °C | -25 ~ 90 | |
| Degree of Protection | IP 64 | ||
| Lubrication | Life Lubrication | ||
| Mounting Direction | Any | ||
| Limited Tightening Clamp Torque | in-lbs / Nm | 70.30 / 7.94 | |
Torque Data
| Torque | Stages | Ratio | Output |
|---|---|---|---|
| Nominal Output Torque (Nm) | 1 | 3 | 102 |
| 4 | 138 | ||
| 5 | 130 | ||
| 7 | 90 | ||
| 9 | 80 | ||
| 10 | 60 | ||
| 2 | 12 | 140 | |
| 15 | 140 | ||
| 16 | 150 | ||
| 20 | 150 | ||
| 25 | 130 | ||
| 30 | 132 | ||
| 40 | 145 | ||
| 50 | 130 | ||
| 70 | 90 | ||
| 100 | 60 | ||
| Max Output Torque (Nm) | 2.5 Times Nominal Output Torque | ||
Drawings
Stage 1
Stage 2
Download
Stage 1 2D Drawing: MPS-90 Stage 1
Stage 2 2D Drawing: MPS-90 Stage 2
MPS Catalog Page: MPS Series.pdf
Gear Box Mounting Instructions: MPS Series.pdf
