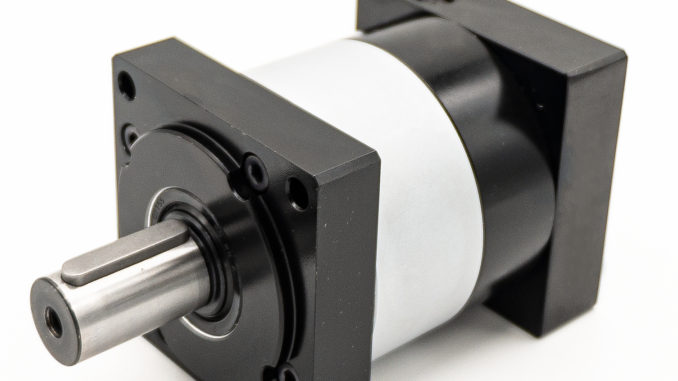

- Compatible with NEMA 17 Frame
- Available in Premium and Standard Backlash
- Available in Single and Double Stage
- Available in Multiple Ratios
Custom shaft features and motor mount dimensions available. Contact us for more information.
Performance Data
Specification | Units | Stage | Measurement |
---|---|---|---|
Full Load Efficiency | % | 1 | 96 |
2 | 92 | ||
Standard Backlash | Arcmin | 1 | <12 |
2 | <15 | ||
Precision Backlash | Arcmin | 1 | <6 |
2 | <8 | ||
Weight | kg | 1 | 0.5 |
2 | 0.9 | ||
Noise | dB (A) | 58 | |
Lifetime | hr | 20,000 | |
Max Radial Load | N | 300 | |
Max Axial Load | N | 110 | |
Nominal Input Speed | RPM | 4000 | |
Max Input Speed | RPM | 12000 | |
Torsional Stiffness | Nm/Arcmin | 0.9 | |
Operating Temperature | ÂșC | -25 ~ 90 | |
Degree of Protection | IP 64 | ||
Lubrication | Life Lubrication | ||
Mounting Direction | Any | ||
Limited Tightening Clamp Torque | in-lbs / Nm | 14.75 / 1.66 |
Torque Data
Specification | Stages | Ratio | Output |
---|---|---|---|
Nominal Output Torque (Nm) | 1 | 3 | 13 |
4 | 18 | ||
5 | 16 | ||
7 | 10 | ||
9 | 7 | ||
10 | 6 | ||
2 | 12 | 20 | |
15 | 20 | ||
16 | 26 | ||
20 | 26 | ||
25 | 16 | ||
30 | 18 | ||
40 | 24 | ||
50 | 16 | ||
70 | 10 | ||
100 | 6 | ||
Maximum Output Torque (Nm) | 2.5 Times Nominal Output Torque |
Drawings
Downloads
Catalog Selection: MPS Series.pdf
Gear Box Mounting Instructions: MPS Series
