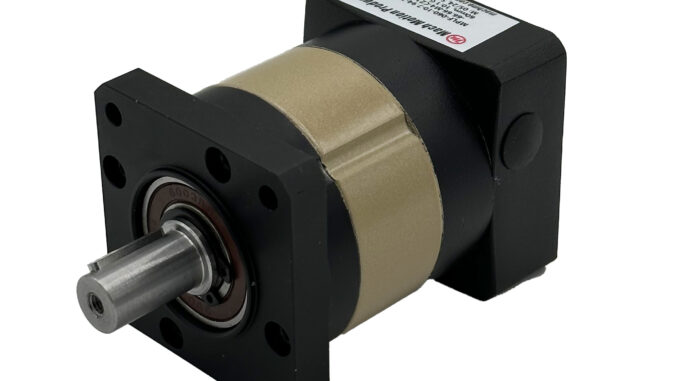

Inline Precision Planetary Gearbox- Available in 4:1 ~ 1000:1 Ratios
- Full Load Efficiency: 90 ~ 95%
- Backlash: ≤8 ~ 16 Arcmin
- NEMA Compatibility: Available on Request
Custom shaft features and motor mount dimensions available. Contact us for more information.
Performance Data
| Specification | Unit | Stage | Measurement |
|---|---|---|---|
| Full Load Efficiency | % | 1 | 95 |
| 2 | 92 | ||
| 3 | 90 | ||
| Precision Backlash | arcmin | 1 | <8 |
| 2 | <12 | ||
| 3 | <16 | ||
| Weight | kg | 1 | 6.8 |
| 2 | 8.8 | ||
| 3 | 10.8 | ||
| Max Radial Load | N | 3100 | |
| Max Axial Load | N | 1550 | |
| Rated Input Speed | RPM | ≤3000 | |
| Max Input Speed | RPM | ≤6000 | |
| Operating Temperature | °C | -10 ~ 90 | |
| Mounting Direction | Any | ||
Torque Data
| Torque | Stages | Ratio | Output |
|---|---|---|---|
| Rated Output Torque (Nm) | 1 | 4 | 280 |
| 5 | 280 | ||
| 7 | 198 | ||
| 10 | 95 | ||
| 2 | 16 | 280 | |
| 20 | 280 | ||
| 25 | 280 | ||
| 35 | 280 | ||
| 40 | 280 | ||
| 50 | 280 | ||
| 70 | 198 | ||
| 100 | 95 | ||
| 3 | 64 | 280 | |
| 80 | 280 | ||
| 100 | 280 | ||
| 125 | 280 | ||
| 140 | 280 | ||
| 175 | 280 | ||
| 245 | 280 | ||
| 350 | 280 | ||
| 400 | 280 | ||
| 500 | 280 | ||
| 700 | 198 | ||
| 1000 | 95 | ||
| Max Output Torque (Nm) | 2x Rated Output Torque | ||
Drawing
Unit: mm
Downloads
MPLF Series Catalog: MPLF Catalog.pdf
