- Motor Voltage: 12V / 24V

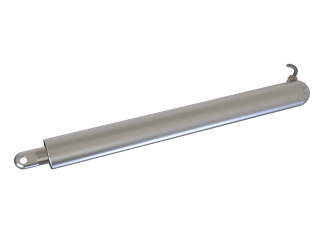

- ø36mm Actuator Body
- Max. Load: 2,000N
- Min. Installation Dimensions: Lmin = S+265
- Built-in Limit Switch
- Optional Hall Feedback
- Noise: ≤56dB, Protection: IP65
- Color Option: Silver or Black
Part Number Configurator
| Series | Stroke | Voltage | Code | Color | ||||
|---|---|---|---|---|---|---|---|---|
| ML36 | - | S600 | - | 24 | - | A | - | B |
Performance
| Code | A | B | C |
|---|---|---|---|
| Push Rated Load (N / lbf) | 2,000 / 449.50 | 1,000 / 225 | 750 / 168.5 |
| Pull Rated Load (N / lbf) | 1,800 / 404.50 | 900 / 202.50 | 675 / 151.75 |
| No Load Speed (mm/s) +/- 10% | 9.0 | 7.5 | 15.0 |
| Full Load Speed (mm/s) +/- 10% | 6.5 | 5.5 | 10.0 |
| 12VDC No Load Current (A) | 1.0 | 0.6 | 0.6 |
| 12VDC Full Load Current (A) | 4.0 | 3.0 | 3.0 |
| 24VDC No Load Current (A) | 0.6 | 0.3 | 0.3 |
| 24VDC Full Load Current (A) | 2.5 | 1.5 | 1.5 |
Dimensions
Unit: mm
Downloads
Catalog Download: ML Series Actuator Catalog.pdf
