- Motor Voltage: 12V / 24V

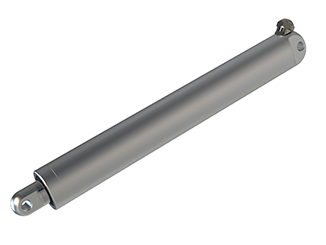

- ø28mm Actuator Body
- Max. Load: 500N
- Min. Installation Dimensions: Lmin = S+175
- Current Overload Protection
- Optional Hall Feedback
- Planetary Gearbox
- Noise: ≤55dB, Protection: IP66
- Material: Silver – Aluminum Alloy
Part Number Configurator
| Series | Stroke | Voltage | Code | Color | ||||
|---|---|---|---|---|---|---|---|---|
| ML28 | - | S500 | - | 24 | - | A | - | S |
Performance
| Code | A | B |
|---|---|---|
| Push Rated Load (N / lbf) | 300 / 67.5 | 500 / 112.50 |
| Pull Rated Load (N / lbf) | 270 / 60.75 | 450 / 101.25 |
| No Load Speed (mm/s) +/- 10% | 10.0 | 7.0 |
| Full Load Speed (mm/s) +/- 10% | 8.0 | 4.5 |
| 12VDC No Load Current (A) | 0.28 | 0.25 |
| 12VDC Full Load Current (A) | 1.5 | 1.5 |
| 24VDC No Load Current (A) | 0.15 | 0.18 |
| 24VDC Full Load Current (A) | 0.7 | 0.8 |
Dimensions
Unit: mm
Downloads
Catalog Download: ML Series Catalog 2025.pdf
