- Motor Voltage: 12V / 24V

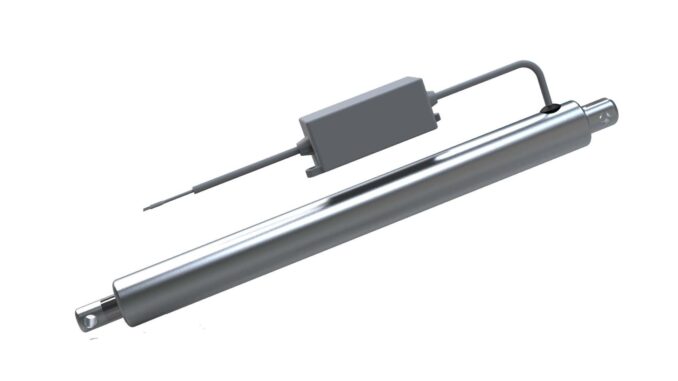

- ø20mm Actuator Body
- Max. Load: 120N
- Min. Installation Dimensions: Lmin = S+125
- Current Overload Protection
- Stainless Steel Shaft
- Planetary Gearbox
- Operating Temp: -25ºC ~ 65ºC
- Color: Silver or Black
Part Number Configurator
| Series | Stroke | Voltage | Code | Color | ||||
|---|---|---|---|---|---|---|---|---|
| ML20 | - | S300 | - | 24 | - | A | - | B |
Performance
| Code | A | B |
|---|---|---|
| Push Rated Load (N / lbf) | 30 / 6.75 | 120 / 27 |
| Pull Rated Load (N / lbf) | 27 / 6 | 107 / 24.25 |
| No Load Speed (mm/s) +/- 10% | 16.5 | 8.5 |
| Full Load Speed (mm/s) +/- 10% | 14.0 | 6.5 |
| 12VDC No Load Current (A) | 0.15 | 0.2 |
| 12VDC Full Load Current (A) | 0.4 | 0.5 |
| 24VDC No Load Current (A) | 0.1 | 0.15 |
| 24VDC Full Load Current (A) | 0.2 | 0.25 |
Dimensions
Unit: mm
Downloads
Catalog Download: ML Series Actuator Catalog.pdf
