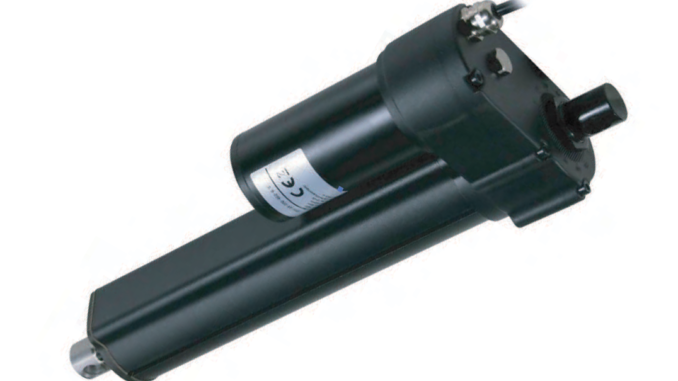

MLA-36

12 ~ 48VDC Motor
Up to 12,000N Dynamic Load
Overload Protection: Clutch or Electronic
Limit Switches: Internal
Position Feedback Available:
- Endstop Signal
- Hall Sensor
- Potentiometer
- Reed Switches
Maximum Stroke: 1,000mm
Protection Level: IP67
Noise Level: ≤65 dB
Color: Black

Specifications

Code	Lead Screw	Duty Cycle	Max. Dynamic Load (N)	Max. Self Locking Load (N)	Pitch (mm)	No Load Speed (mm/s) +/-10%	Full Load Speed (mm/s) +/-10%	Max. Stroke (mm) without Pot.	Max. Stroke (mm) with Pot.
A	Ball Screw	20%	12,000	15,000	5	8.5	7	500	300
B		30%	7,500	10,000	5	17	14	700	300
C			4,500	6,000	5	28	25	1,000	300
D			3,500	5,000	10	33.5	28.5	1,000	600
E			2,000	3,500	10	55.5	49	1,000	600
F	ACME Screw	20%	9,000	12,000	4	6.7	6	500	240
G		25%	6,000	9,000	4	13.3	11	700	240
H			3,000	5,000	8	26.7	24	1,000	480
I			2,000	4,000	8	44.5	38	1,000	480
J			4,000	6,000	12	20	18	1,000	720
K			1,200	2,000	12	66.7	56	1,000	720
