MLA-10 linear actuators are a great solution for medical or industrial settings, offering high speeds and a lower current with a high IP rating.
- Motor Voltage: 12V / 24V
- Load thrust and pull up to 3,000N
- Color: Black
- IP Rating: IP67 (normal) or higher
- Noise Level ≤55 dB
- Electrical Limit Switch included
- Stroke Length: 50-400mm
- Hall Sensor Available
Specifications
| Power Supply (VDC) | Stroke Length (mm) | Spindle Pitch (mm) | Max. Load Push (N) | Self-Lock Load (N) | Max. No Load Speed (mm/s) | Max. Full Load Speed (mm/s) | Current at Full Load (A) |
|---|---|---|---|---|---|---|---|
| 12VDC | 50 ~ 400 | 4 | 2,000 | 1,500 | 7 | 4.5 | ≤6 |
| 24VDC | 50 ~ 250 | 4 | 3,000 | 3,000 | 7.4 | 4.8 | ≤5 |
| 24VDC | 50 ~ 400 | 7.5 | 2,000 | 1,500 | 13.2 | 8.3 | ≤5 |
| 24VDC | 50 ~ 400 | 10 | 1,000 | 600 | 18.2 | 11 | ≤4 |

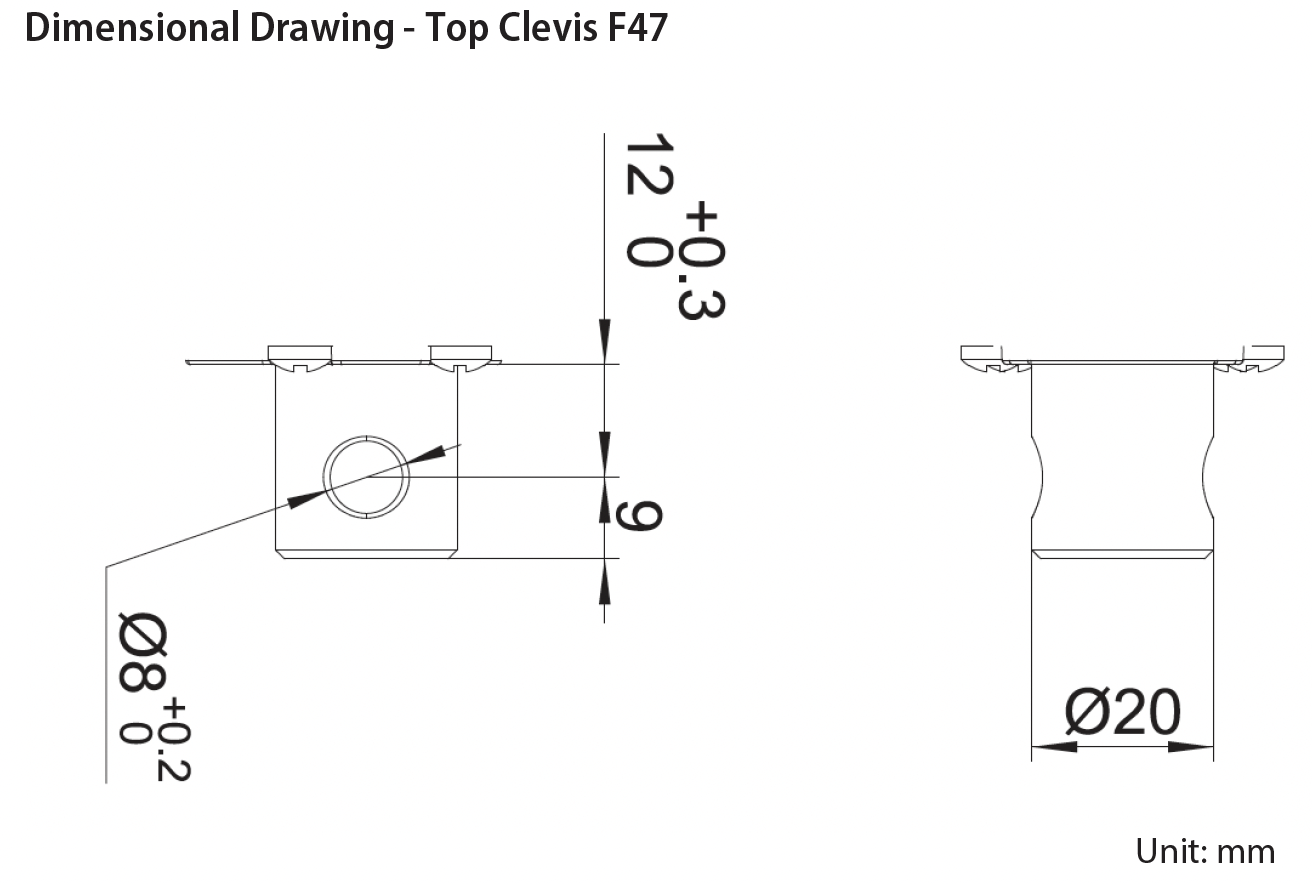

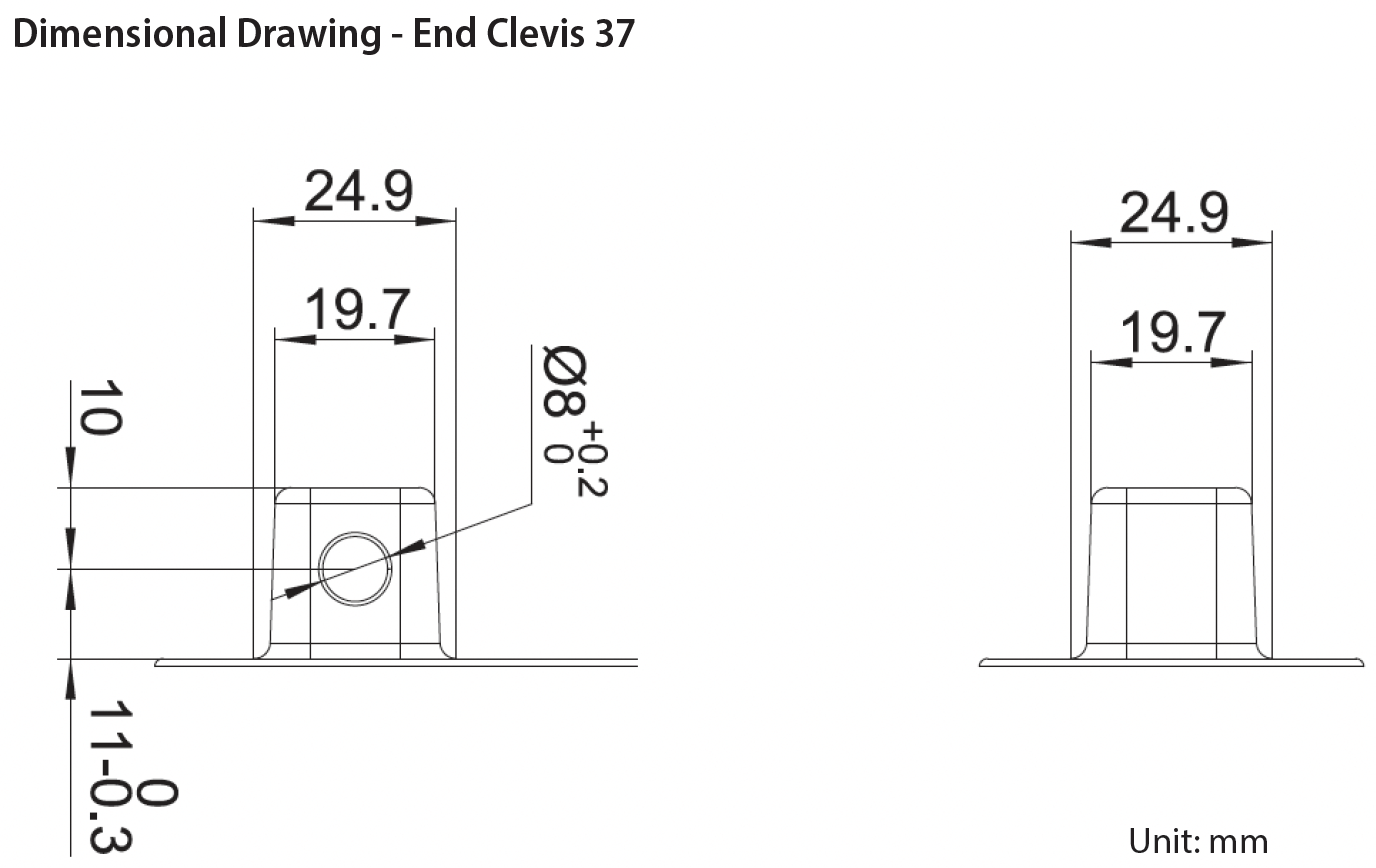

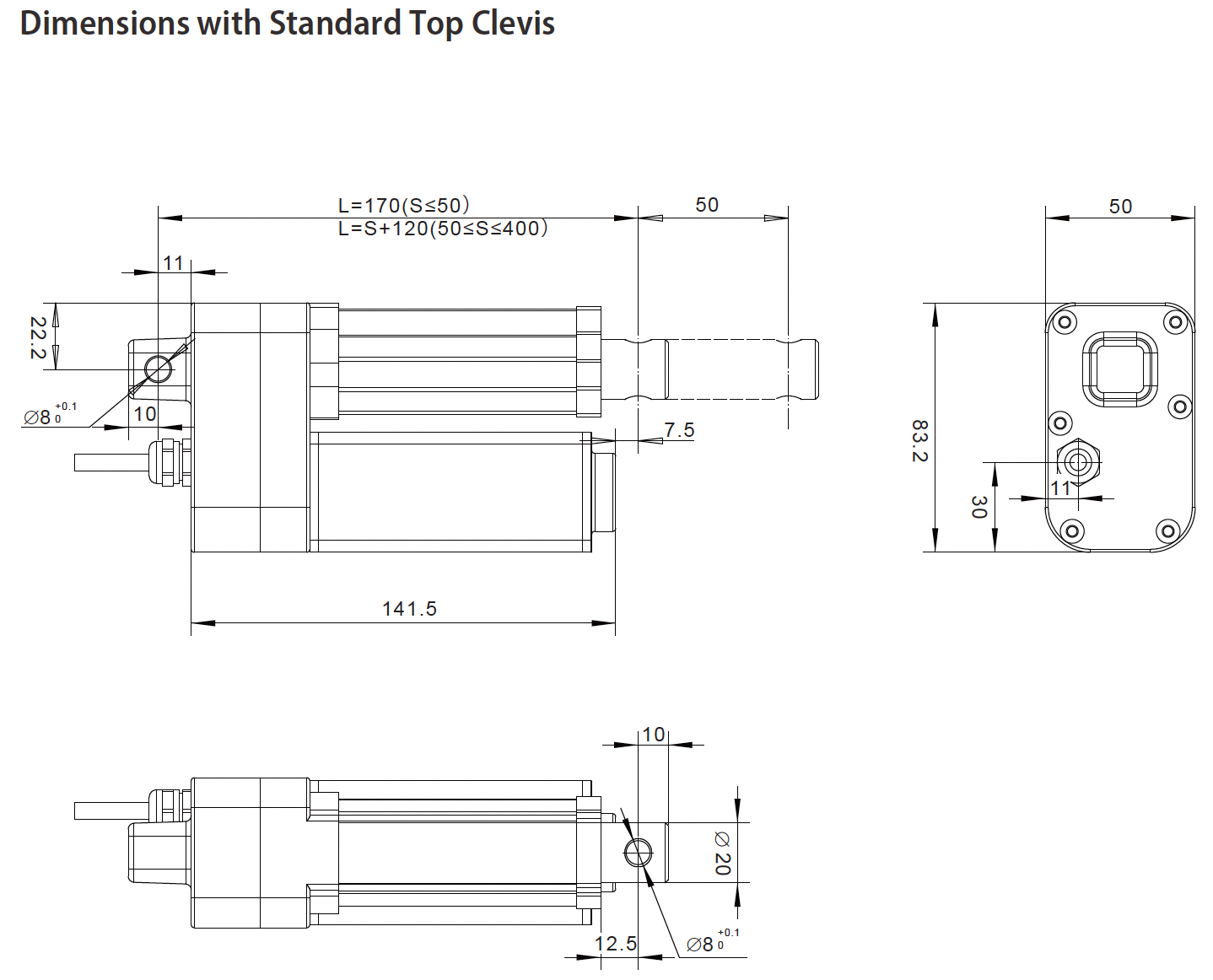

Dimensions

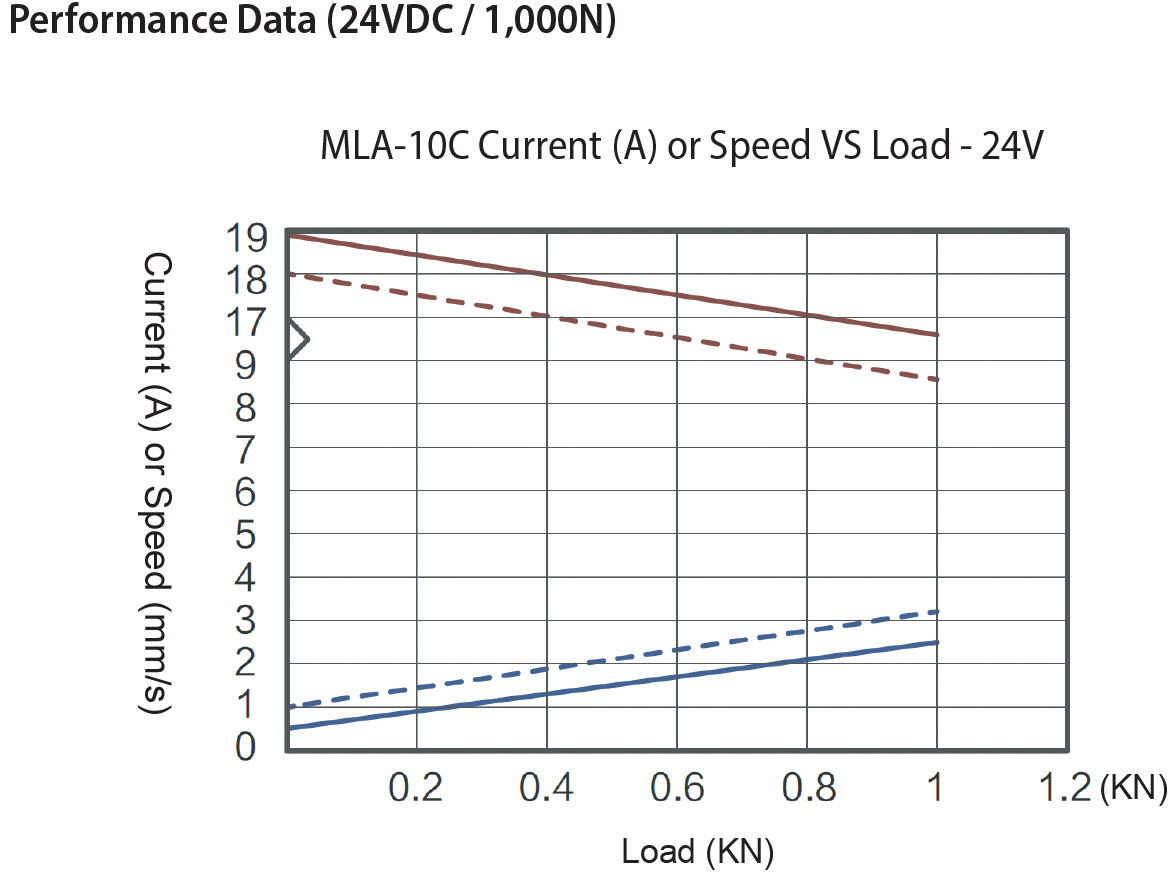

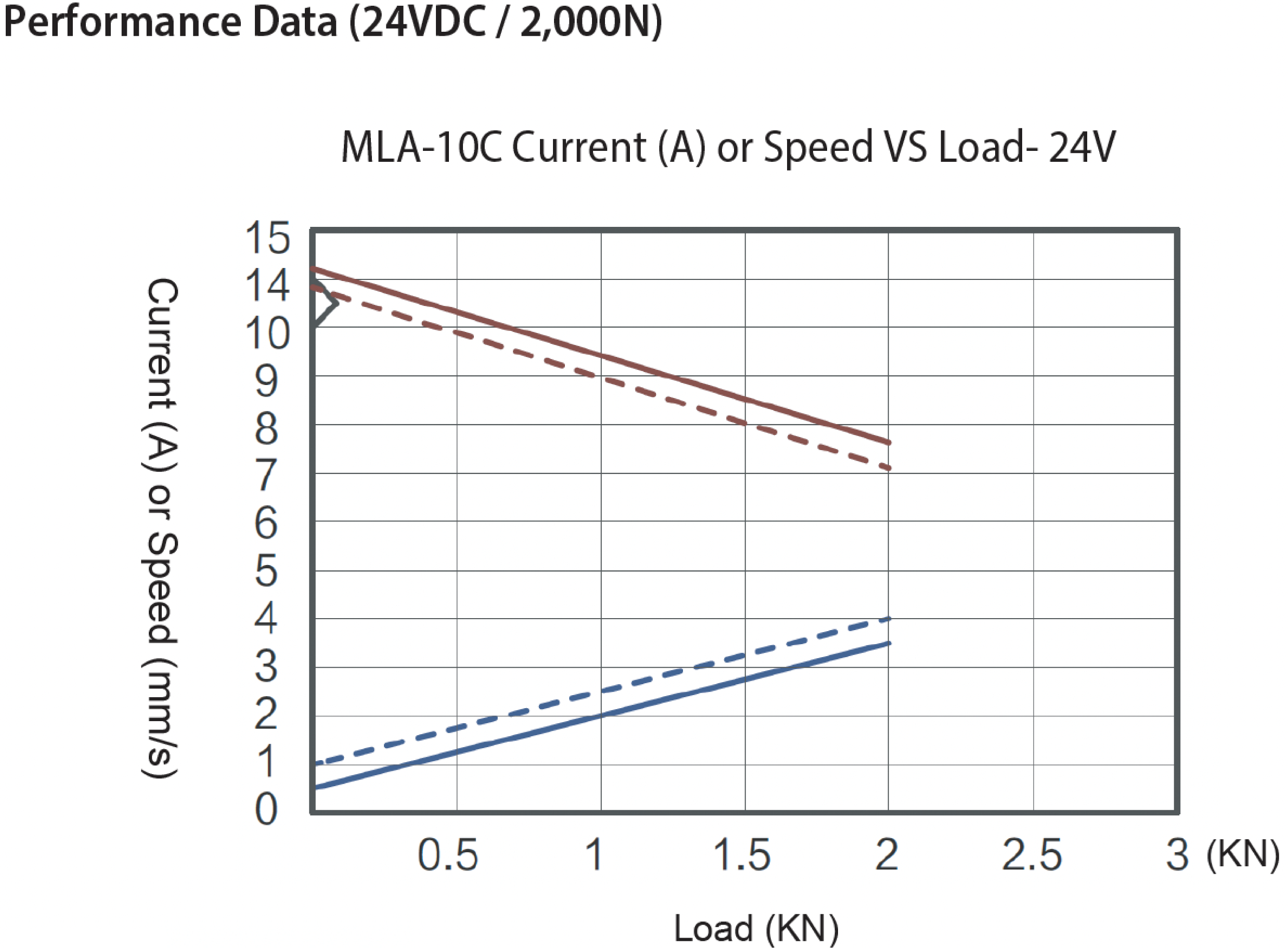

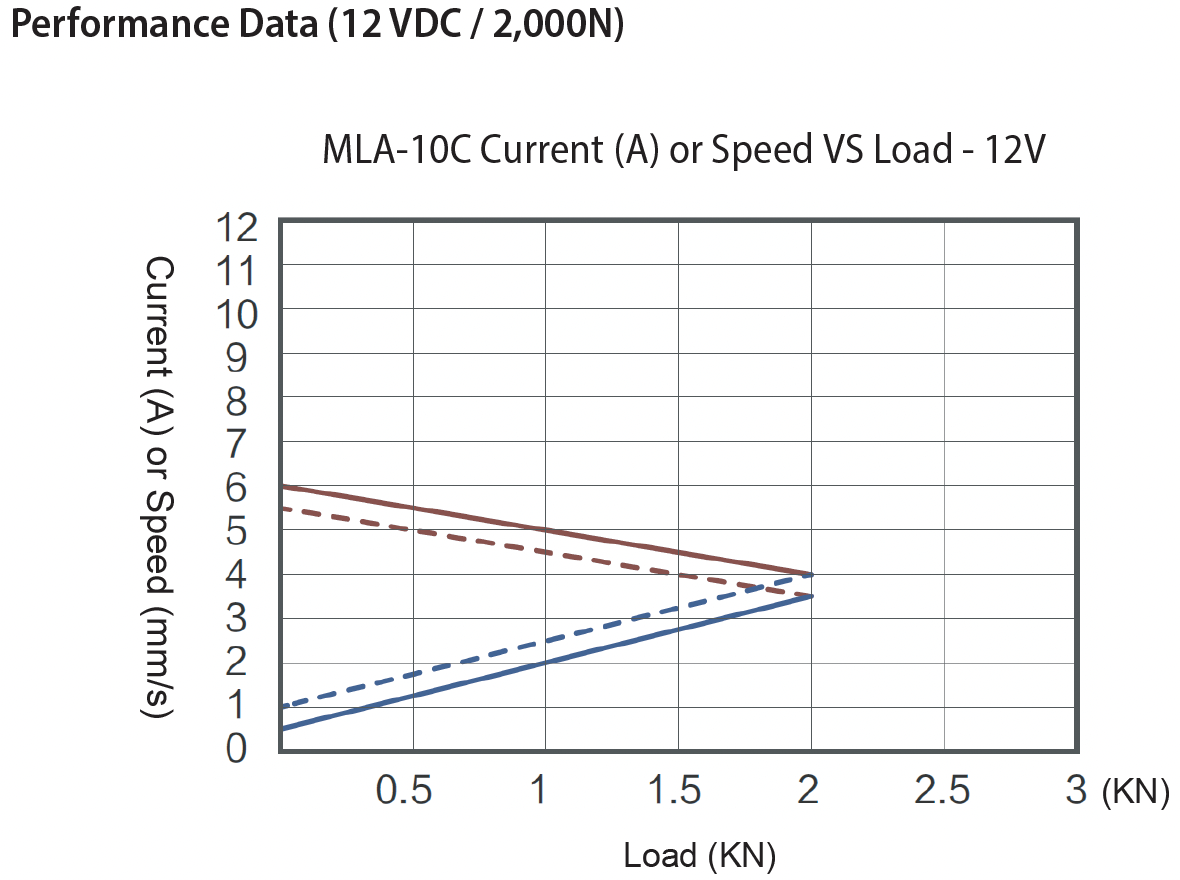

Performance
