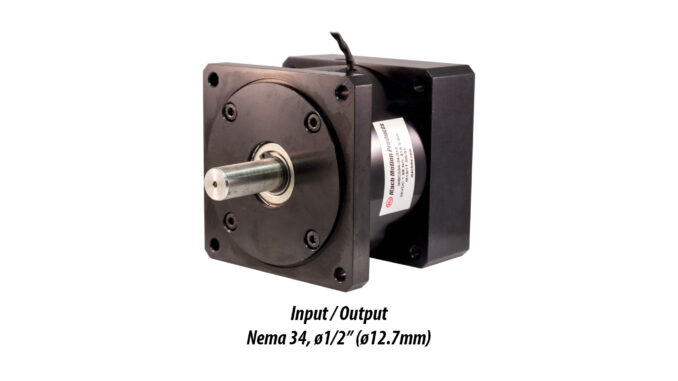

MBC034-24-012
NEMA 34 Front Brake, ø1/2″ Input, ø1/2″ Output, 24VDC, 1.68 Nm Static Torque. For Stepper or Servo Motors.
$358.62 USD /ea
10 items in Stock
Call (360) 601-0666 or email orders@machmo.com to place an order!
Performance Data
| Rated Voltage | 24VDC |
| Static Torque | 1.68Nm | 14.87in-lb |
| Rated Current | 0.41A |
| Power | 9.8W |
| Resistance | 58 Ohms |
| Start Voltage | 15 VDC Max |
| Hi-Pot | 500 VAC / 1 S, 2MA |
| Type | Power Off Brake |
| Frame Size | NEMA 34 |
| Input Shaft Diameter | ø12.7mm | ø0.5in |
| Output Shaft Diameter | ø12.7mm | ø0.5in |
| Static Radial Load Rating | 3.72KN |
| Basic Dynamic Load Rating | 765KN |
