MBC024-24-002

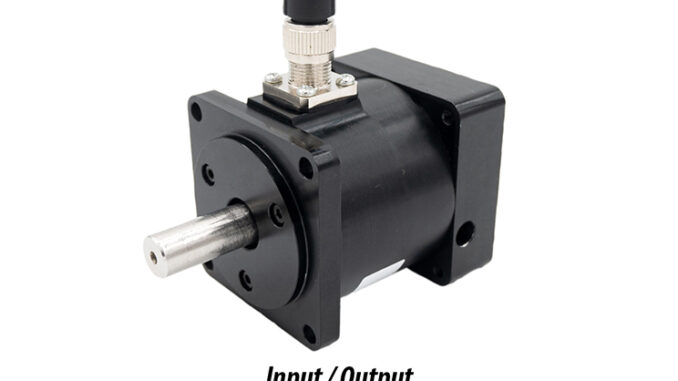

NEMA 24 Front Brake, ø14mm Input, ø14mm Output, 24VDC, 1.5Nm Static Torque. For Stepper or Servo Motors. Includes 1m Cable with Flying Leads.
This brake fits:
- AMCI SV400E2 Servo Motors
- Mach Motion SV060AS Servo Motors
- Mach Motion ST24 Stepper Motors
- Any NEMA 24 / 60 Frame Motor with a ø14mm Shaft
Wiring Diagram:
- ( + ) Brown
- ( – ) Blue, the brake is released
$405.00 USD /ea
58 items in Stock
Call (360) 601-0666 or email orders@machmo.com to place an order!
Performance Data
| Rated Voltage | 24VDC |
| Static Torque | 1.5Nm | 13.28in-lb |
| Rated Current | 0.46A |
| Power | 13.3W |
| Resistance | 39 Ohms |
| Start Voltage | 22 VDC Max |
| Hi-Pot | 500 VAC / 1 S, 2MA |
| Type | Power Off Brake |
| Frame Size | NEMA 24 |
| Input Shaft Diameter | ø14mm | ø0.55in |
| Output Shaft Diameter | ø14mm | ø0.55in |
| Static Radial Load Rating | 2.4KN |
| Basic Dynamic Load Rating | 5.1KN |
