MZF series

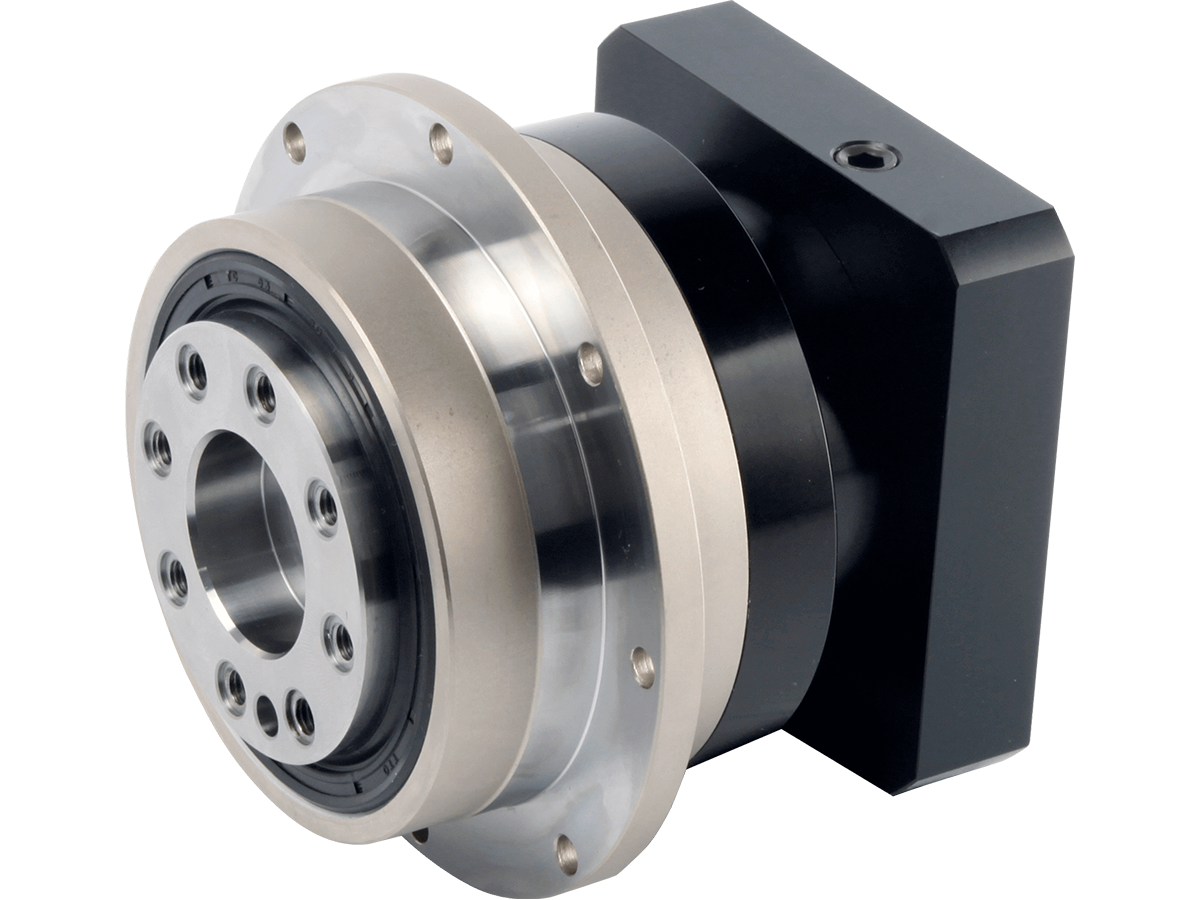

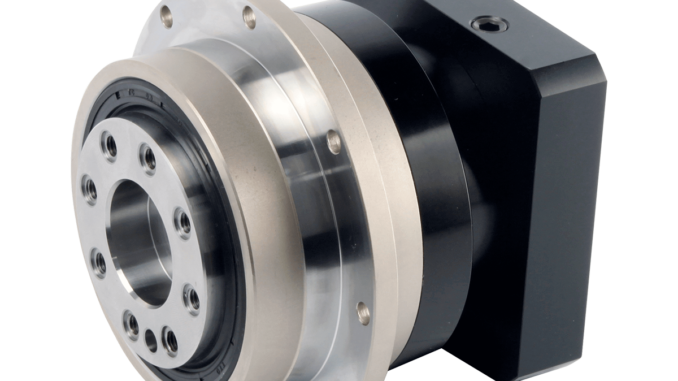

High output torque solid one piece square housing that provides performance and efficiency with torque and sturdiness. The helical toothed and one piece carrier design provides maximum radial load capacity as well as system reliability and stiffness.

• Four frame size : 60, 90, 120, 140
• Gear ratios from 1:3 to 1:100
• Available in single and double stage

Performance Data

MZF-60, 90, 120, 140

Specifications	Units	Stages	60	90	120	140
Full Load Efficiency	%	1	≥95
		2	≥92
Standard Backlash	arcmin	1	≤5
		2	≤8
Precision Backlash	arcmin	1	≤3
		2	≤5
Noise	dB(A)		≤60	≤60	≤65	≤67
Lifetime	Hours		20,000
Max Radial Load	N		125	235	430	1300
Max Axial Load	N		2,110	2,310	4,800	6,200
Nominal Input Speed	rpm		5,000	4,000	4,000	3,000
Max Input Speed	rpm		10,000	8,000	8,000	6,000
Torsional stiffness	Nm/archmin		13	31	82	151
Weight	kg	1	1.35	4.25	9.15	14.6
		2	1.7	7	13	19.2
Operating Temperature	ºC		-25 ~ 90
Degree of Protection			IP 65
Lubrication			Synthetic Lubrication
Mounting Direction			Any

Torque Data

MZF-60, 90, 120, 140

Model/ Size	Stages	Ratio	60	90	120	140
Nominal Output Torque (Nm)	1	4	48	130	270	560
		5	60	160	330	650
		7	50	140	300	550
		10	40	100	230	450
	2	20	48	130	270	560
		25	60	160	330	650
		35	50	140	300	550
		40	48	130	270	560
		50	60	160	330	650
		70	50	140	300	550
		100	40	100	230	450
Max Output Torque (Nm)	2.5 Times Nominal Output Torque
Model/ Size	Stages	Ratio	60	90	90	90
Mass Moments of Inertia (Kg-cm²)	1	4	0.14	0.48	2.74	7.54
		5	0.13	0.47	2.71	7.42
		7	0.13	0.45	2.62	7.14
		10	0.13	0.44	2.57	7.03
	2	20	0.13	0.47	2.71	7.42
		25	0.13	0.47	2.71	7.42
		35	0.13	0.47	2.62	7.14
		40, 50	0.13	0.44	2.57	7.03
		70,100	0.13	0.13	0.44	2.57

Drawings

Downloads

Catalog Selection: MZF Series.pdf
MZF-60 3D Models: MZF-60 3D.zip
MZF-90 3D Models: MZF-90 3D.zip
Gear Box Mounting Instructions: MPS Series.pdf
