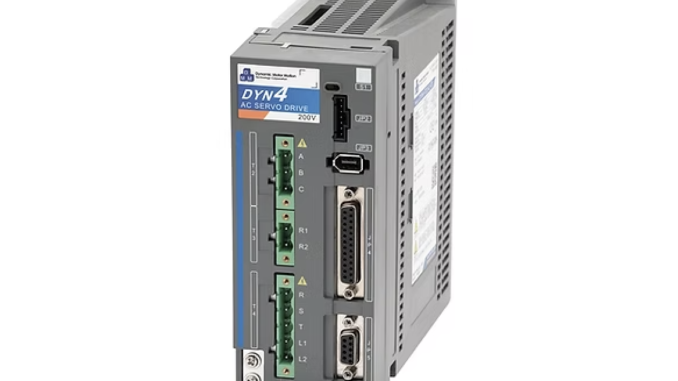

Versatile, high-performance AC Servo drive for all motion control. Combining the latest DMM Servo control technology with 16-bit high resolution feedback and brand new monitor functions, the DYN4 AC Servo Drive achieves ultimate accessible performance.
For global applications, the DYN4 Drive supports 110~240VAC input on the same unit. Built-in position and speed control profiling allows control even without a motion controller. Industry standard pulse/analog/serial interface, easy auto PC set up and tuning makes the DYN4 AC Servo Drive perfect for any application.
To purchase samples, visit ServoElements.com.
Product Features:
- 30 kHz position Servo loop with real time tuning
- Standard 16-bit encoder, Single or Multi-turn option
- Single/Three-Phase 110~240VAC ± 10% 50/60Hz input
- Position, Velocity, Torque Servo modes
- 50W to 2.0kW Motor size
- Modbus RTU TS485 Option
- CAN Option
- Simple DMMDRV software commissioning
Recommended Applications:
-
- Machine Tool / CNC
- Medical / Pharmaceutical
- Automated Testing Cells
- Laboratory Automation
- Printing / Packaging
Product Interface:
DYN4 System Selection:
| DYN4 Frame Size | DYN4-L01 | DYN4-H01 | DYN4-T01 |
|---|---|---|---|
| DHT Servo Motor | 86L-DHT, 57N-DHT | 86M-DHT, 86N-DHT, | A15-DHT |
| 86H-DHT |
|||
| DST Servo Motor | 405-DST, 410-DST, | 880-DST, 11A-DST | 115-DST, 120-DST |
| 620-DXT, 640-DXT | |||
| DXT Servo Motor | 405-DXT, 410-DXT, | 880-DXT, 86M-DXT, | 115-DST, 120-DST |
| 620-DXT, 640-DXT | 185-DXT, 11A-DXT |
Specifications
Part Number Configuration
Dimensional Drawing
Cable Selection
Downloads
DYN4 Drive 3D Drawing – 3D Step File
DYN4 Drive System Catalog – PDF File
DYN4 Drive Operation Manual– PDF File
DYN4 MODBUS RTU Specification Manual – PDF File
DYN4 CAN Protocol Specification Manual – PDF File
