General purpose, high reliability AC servo motor series with 50W~2kW capacity. Metric flange and shaft sizes. Suitable for small to medium capacity applications.
The DST series AC servo motors are a high-performance and cost-effective solution for any precision motion control applications. They feature high torque-to-size ratio and efficient heat dissipation, making them ideal for CNC machines, robotics, and automation. With integrated ABS encoders for accurate positioning, these servo motors offer smooth operation, fast response times, and reliable performance.
To purchase samples, visit ServoElements.com.
Product Features:
- Low cogging for smooth operation
- Standard 16-bit absolute encoder (65,536ppr)
- 200V and 60V voltage class
- IP65 protection class
- 50W to 2.0kW Motor size
- Optional 32-bit Multi-Turn Absolute Encoder
- Standard metric flange and shaft sizes (40mm, 60mm, 80mm, 130mm)
Recommended Applications:
- Machine Tool / CNC
- Y X table
- Medical Applications
- Lighting / Camera Automation
- Printing / Textile Automation
- Battery Powered EV / Transport
- Roller / Conveyor

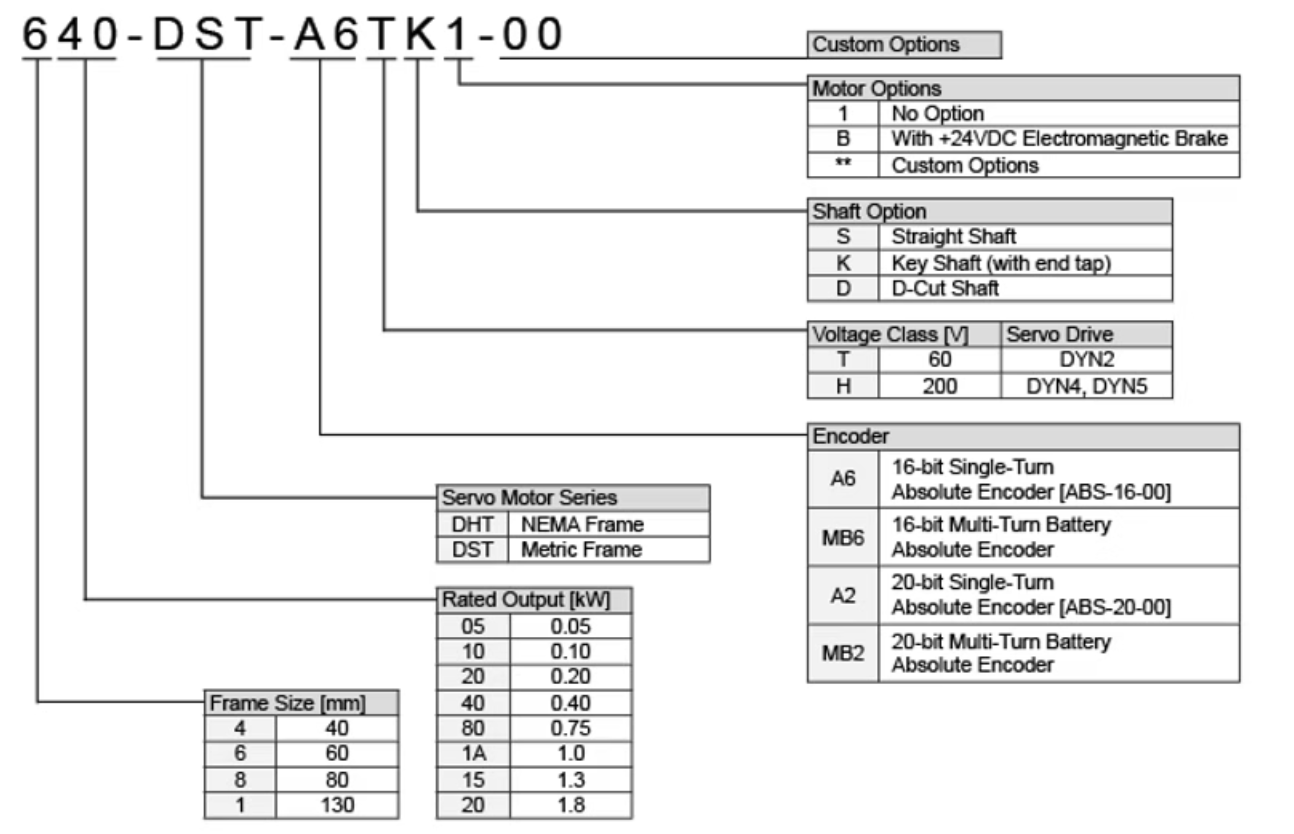

Product Number Configuration:
Performance Data & Servo Drive Pairing:
| Specification | Unit | 405-DST | 410-DST | 620-DST | 640-DST | 880-DST | 11A-DST | 115-DST | 120-DST |
|---|---|---|---|---|---|---|---|---|---|
| Power | W | 50 | 100 | 200 | 400 | 750 | 1,000 | 1,300 | 1,800 |
| Voltage Option | V | 60 / 200 | 60 / 200 | 60 / 200 | 60 / 200 | 200 | 200 | 200 | 200 |
| Rated Torque | Nm | 0.16 | 0.318 | 0.64 | 1.27 | 2.37 | 4.4 | 8.27 | 11.5 |
| Peak Torque | Nm | 0.48 | 0.955 | 1.91 | 3.82 | 7.16 | 12.0 | 23.3 | 28.7 |
| Rated Speed | RPM | 3,000 | 3,000 | 3,000 | 3,000 | 3,000 | 1,500 | 1,500 | 1,500 |
| Peak Speed | RPM | 5,000 | 5,000 | 5,000 | 5,000 | 5,000 | 3,000 | 3,000 | 3,000 |
| Rotor Inertia (Brake) | kg-cm^2 | 0.036 (0.044) | 0.063 (0.076) | 0.232 (0.278) | 0.426 (0.511) | 2.0 (2.3) | 8.5 (10.2) | 18.9 (21.74) | 23.8 (27.37) |
| Flange Size | mm | 40 | 40 | 60 | 60 | 80 | 130 | 130 | 130 |
| Shaft Diameter | mm | 8 | 8 | 14 | 14 | 19 | 19 | 22 | 22 |
| DMM Servo Drive Pair | 60V: DYN2-T1 | 60V: DYN2-T1 | 60V: DYN2-TL | DYN4-H01, | DYN4-T01, | ||||
| 200V: DYN4-L01, DYN5-L01 | 200V: DYN4-L01, DYN5-L01 | DYN5-L01 | DYN5-T01 | ||||||
405/410 DST
620/640 DST
880 DST
11A/115/120 DST
