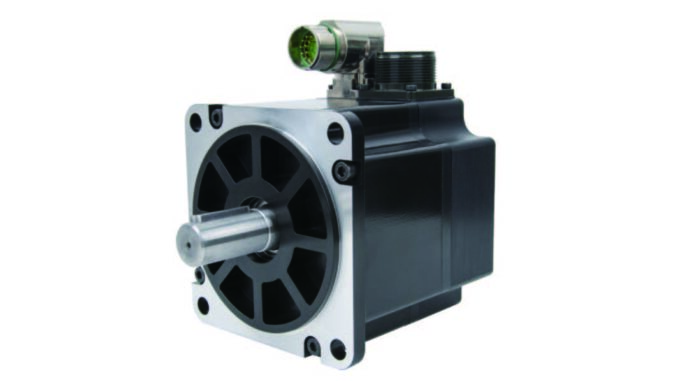

SVP is a new series of Low Voltage Servo Motors from Mach Motion Products. SVP motors were developed as a result of years of research using specialized electromagnetic design software. SVP motors feature compact size, higher efficiency, lower cogging, and better performance dynamics. SVP motors can integrate electromagnetic brakes, magnetic incremental and absolute encoders with various communication protocols. SVP motors can be used in a variety of robotic applications and battery powered systems.
Performance Data
| Specification | Unit | SVP110A(B)A13H-001 |
|---|---|---|
| Voltage | VDC | 48 |
| Rated Power (Pw) | W | 1320 |
| Rated Speed (Nn) | RPM | 3000 |
| Rated torque (Tn) | Nm | 4.2 |
| Rated Current (In) | A | 31 |
| Peak Torque (Tm) | Nm | 12.6 |
| Peak Current (Im) | A | 103 |
| Resistance L-L (RI) | ohms | 0.0345 |
| Inductance L-L (HI) | mH | 0.177 |
| Voltage Constant (Ke) | Vrms/Krpm | 8.62 |
| Torque Constant (Kt) | Nm/Arms | 0.135 |
| Poles | 10 | |
| Optical Encoder | PPR | 2500 |
| Brake Torque | Nm | 12.0 |
| Length | mm | 109 (133.5 w/ brake) |
| Weight (Wm) | Kg | 3.65 (4.3 w/ brake) |
Drawing
SVP110AA13H-001
SVP110BA13H-001
Speed Torque Curves
SVP110A(B)A13H-001
Downloads
Low Voltage BLDC Catalog: Low-Voltage-BLDC-Catalog-2024.pdf
