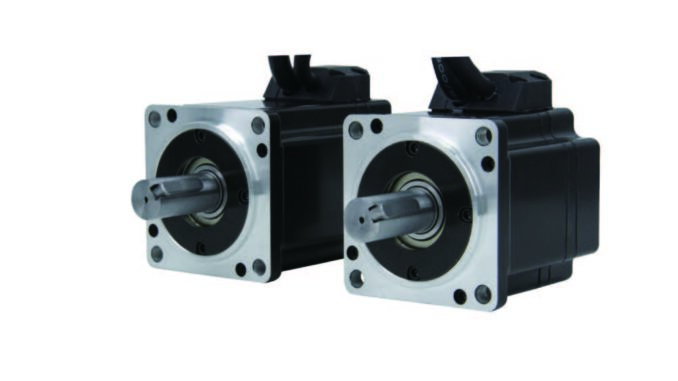

SVP060 – 48V

SVP is a new series of Low Voltage Servo Motors from Mach Motion Products. SVP motors were developed as a result of years of research using specialized electromagnetic design software. SVP motors feature compact size, higher efficiency, lower cogging, and better performance dynamics.

SVP motors can integrate electromagnetic brakes, magnetic incremental and absolute encoders with various communication protocols. SVP motors can be used in a variety of robotic applications and battery powered systems. Contact us for more information.

• Typical Lead Time: 6-8 Weeks



  Performance Data




  Specification	Unit	SV060A(B)M200-002	SVP060A(B)M400-002
  Voltage	VDC	48	48
  Rated Power (Pw)	W	200	400
  Rated Speed (Nn)	RPM	3000	3000
  Rated Torque (Tn)	Nm	0.64	1.27
  Rated Current (In)	A	6.5	12
  Peak Torque (Tm)	Nm	1.92	3.81
  Peak Current (Im)	A	19.5	36
  Resistance L-L (RI)	ohms	0.297	0.14
  Inductance L-L (HI)	mH	0.78	0.45
  Voltage Constant (Ke)	Vrms/Krpm	5.9	6.4
  Torque Constant (Kt)	Nm/Arms	0.09	0.11
  Rotor Inertia (Jm)	Kg.mm^2	11.9	21.8
  Poles		10	10
  IP Class		54	54
  Magnetic Encoder	PPR	4096	4096
  Brake Torque	Nm	1.3	1.3
  Length	mm	64.5 (81.5 w/ brake)	84.5 (101.5 w/ brake)
  Weight (Wm)	Kg	0.7 (0.96 w/ brake)	1.0 (1.30 w/ brake)




  Drawing

SVP060AM200(400)-002

SVP060BM200(400)-002
