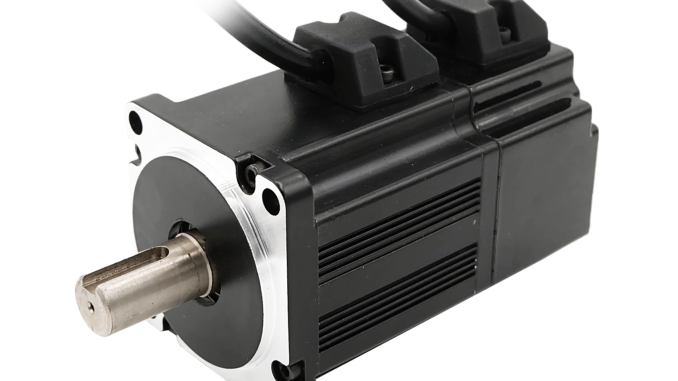

- 60 mm Frame Size Brushless Servo Motor
- 8 Pole, 3 Phase Motor
- 18 Slot Distribution Winding
- Skewed Stator Designed for Low Cogging
- 2,500 PPR Incremental Encoder
- Insulation Class F
Custom windings, shaft features, connectors, and motor face dimensions available. Contact us for more information. To purchase a sample, please visit ServoElements.com
Performance Data
| Specification | Unit | SV060AS-01 | SV060AS-02 | SV060AS-03 |
|---|---|---|---|---|
| Supply Voltage | VDC | 36 | 48 | |
| Rated Speed at Continuous Torque | RPM | 4000 | 3000 | |
| Torque Constant (Kt) | Nm/A | 0.0573 | 0.0745 | |
| Voltage Constant (Ke) | V/krpm | 4.2 | 5.8 | |
| Rated Continuous Torque | Nm | 0.30 | 0.53 | 1.30 |
| Rated Continuous Stall Current | A | 5.74 | 9.84 | 18.41 |
| Rated Continuous Output Power | W | 124 | 223 | 410 |
| Motor Constant | Nm√ W | 0.0740 | 0.0998 | 0.1408 |
| Terminal Resistance | Ω | 0.60 | 0.33 | 0.28 |
| Inductance | mH | 0.64 | 0.35 | 0.33 |
| Rated Peak Current | A | 22.11 | 30.78 | 56.89 |
| Rated Peak Torque | Nm | 1.20 | 1.69 | 4.05 |
| Coulomb Friction Torque | Nm | 0.010 | 0.017 | 0.025 |
| Rotor Inertia | kg.m² | 1.00E-06 | 1.50E-04 | 2.66E-03 |
| Motor Length | mm | 101 | 113 | 141 |
| Motor Weight | Kg | 0.85 | 1.08 | 1.54 |
| Feedback Device | 2500 p/rev Incremental Encoder | |||
| Insulation Class | F | |||
Drawing
Speed Torque Curves
Downloads
2D Dimensional Drawing: SV060AS-XXX.pdf
3D STEP File : SV060AS.zip
