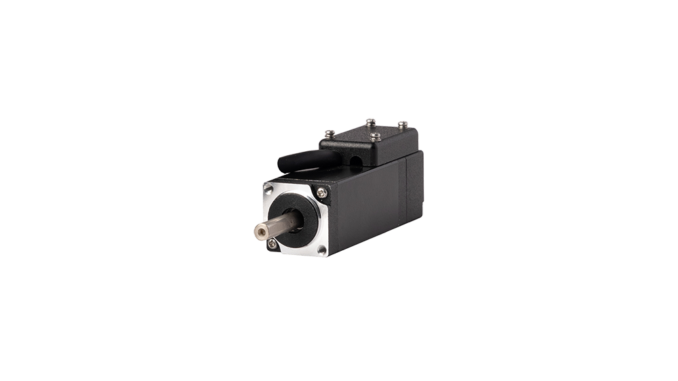

- 15mm Frame Size Brushless Servo Motor
- 4 Pole, 24 ~ 48VDC
- Compact, Coreless Design
- Skewed Stator Designed for Low Cogging
- Increased Control Accuracy
- Feedback: 17 Bit Absolute Encoder
- Protection Class: IP50
Custom windings, shaft features, connectors, and motor face dimensions available. Contact us for more information.
Performance Data
| Specification | Unit | SV015AS100 | SV015AS101 |
|---|---|---|---|
| Supply Voltage | VDC | 48 | 24 |
| Rated Speed at Continuous Torque | RPM | 3000 | |
| Torque Constant (Kt) | Nm/A | 0.011 | 0.2 |
| Voltage Constant (Ke) | V/krpm | 0.54 | 2.5 |
| Rated Torque | Nm | 0.016 | 0.024 |
| Rated Continuous Output Power | W | 5 | 8 |
| Terminal Resistance | Ω | 2.18 | 12 |
| Inductance | mH | 0.15 | 0.36 |
| Rated Peak Current | A | 4.5 | 3.6 |
| Rated Peak Torque | Nm | 0.048 | 0.072 |
| Rotor Inertia | g.cm² | 0.7 | 1.43 |
| Motor Length | mm | 60 | 63 |
| Motor Weight | Kg | 100g | 120g |
| Feedback Device | 17 Bit Absolute Encoder | ||
| Protection Class | IP50 | ||
Drawing
Speed Torque Curves
Downloads
2D Dimensional Drawing: SV015AS Catalog.pdf
