When selecting a gearbox for your Macron Actuator application, know that you can save money and increase your performance by using a Mach Motion Products Gearbox! Our full line of in-stock gearboxes, specifically designed for Macron Actuators can be found at ServoElements.com.
Our gearboxes can be modified to fit the motor of your choice, or select one of our many Servo or Stepper motor options that fit our gearboxes without modification.

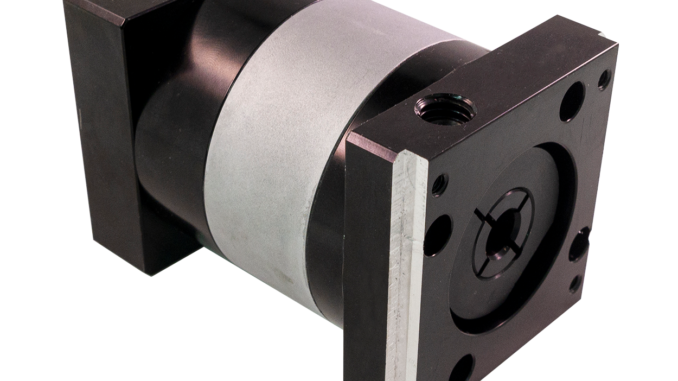

60mm Gearbox Comparison
| Series | MPS-60-XXX-06-LMA | MPG-062-XXX |
|---|---|---|
| Available Ratios | 3:1, 5:1, 7:1, 10,:1 | 3:1, 5:1, 7:1, 10,:1 |
| Output Torque | 19 Nm (All Ratios) | 14 Nm (3:1, 10:1) | 26 Nm (5:1, 7:1) |
| Max Input Speed | 10,000 RPM | 6,000 RPM |
| Output Backlash | ≤ 6 Arcmin | < 10 Arcmin |
| Efficiency | ≥ 96% | 92% |
| Noise Level | ≤ 60 dB | < 66 dB |
| Estimated Cost Savings by using Mach | 40% from list pricing | |
90mm Gearbox Comparison
| Series | MPS-90-XXX-06-LMA | MPG-084-XXX |
|---|---|---|
| Available Ratios | 3:1, 5:1, 7:1, 10,:1 | 3:1, 5:1, 7:1, 10,:1 |
| Output Torque | 59 Nm (All Ratios) | 40 Nm (3:1, 10:1) | 50 Nm (5:1, 7:1) |
| Max Input Speed | 8,000 RPM | 6,000 RPM |
| Output Backlash | ≤ 6 Arcmin | < 10 Arcmin |
| Efficiency | ≥ 96% | 92% |
| Noise Level | ≤ 64 dB | < 68 dB |
| Estimated Cost Savings by using Mach | 30% from list pricing | |
