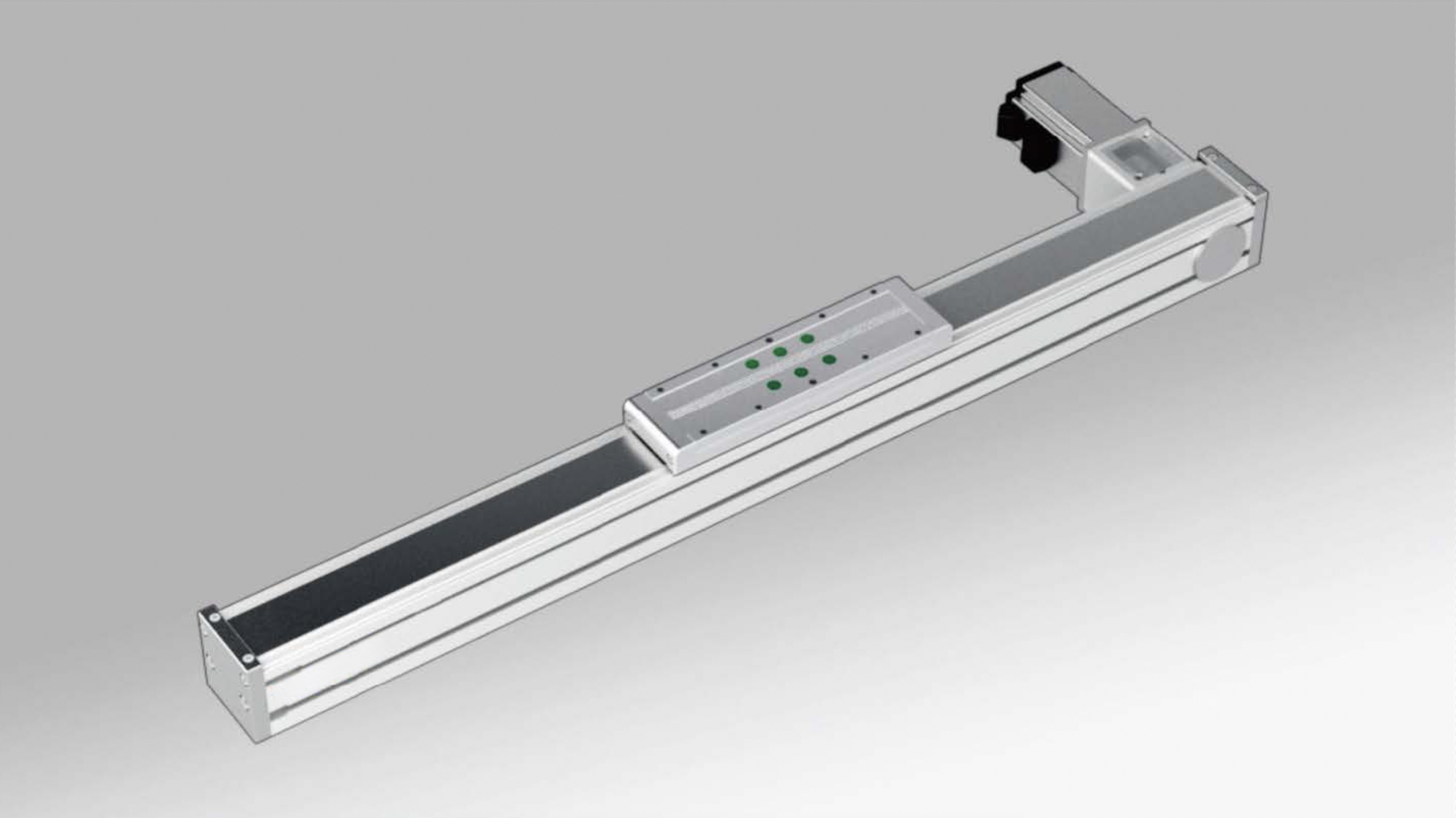

- Compatible Motor Size (AC): 750W
- Synchronous Wheel Diameter: 47.75mm
- Lead (mm): 150 / 75
- Horizontal Max Payload (kg): 25 / 60
- Vertical Max Payload (kg): 5 / 10
- Repeatability: ± 0.05mm
- Max Stroke: 5,700mm
Part Number Configurator
Technical Specifications
| Motor Power (W) | 750W | ||
| Drive Type | Timing Belt | ||
| Repeatability (mm) | ±0.05 | ||
| Reduction Ratio | None | 2:1 | |
| Lead (mm) | 150 | 75 | |
| Max. Speed (mm/sec) | 5,000 | 3,750 | |
| Maximum Payload (kg) | Horizontal | 25* | 60* |
| Vertical | 5* | 10* | |
| Rated Thrust (N) | 90 | 170 | |
| Linear Guide (mm) | 20x15.5 | ||
| Synchronous Wheel Diameter (mm) | 47.75 | ||
| Synchronous Belt Width (mm) | 35 | ||
| Synchronous Belt Tension (N) | 754 | ||
| Sensor | Electro-optical | Outside | EE-SX672 (NPN) EE-SX672P (PNP) |
| Outside Guide | EE-SX674 (NPN) EE-SX674P (PNP) |
||
| Magnetic | DS1-HN-020 | ||
*Notes:
1. When operating horizontally, it is recommended to keep Accelerated Velocity under 5m/sec^2; recommended Maximum Payload for operating vertically is 2m/sec^2.
2. Allowable Tension of Synchronous Belt is standard for PU (polyurethane) + high-tensile steel wire belt.

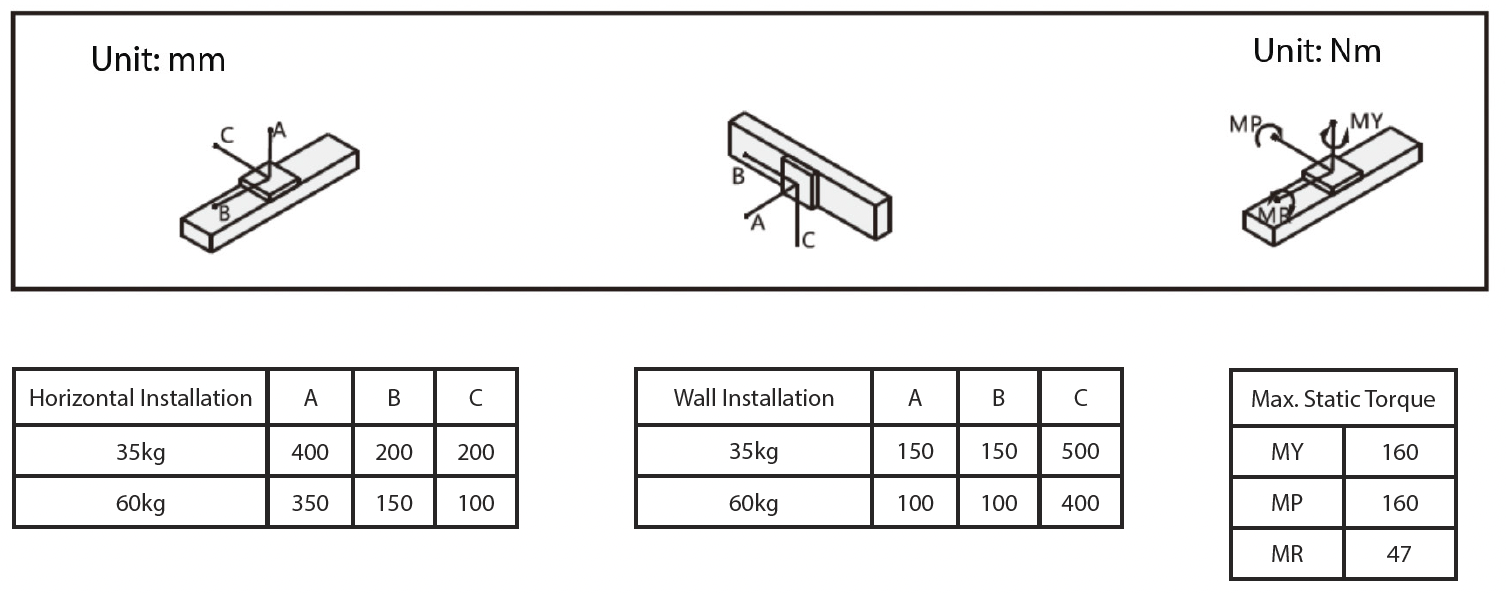

Maximum Static Torque
Maximum Static Torque

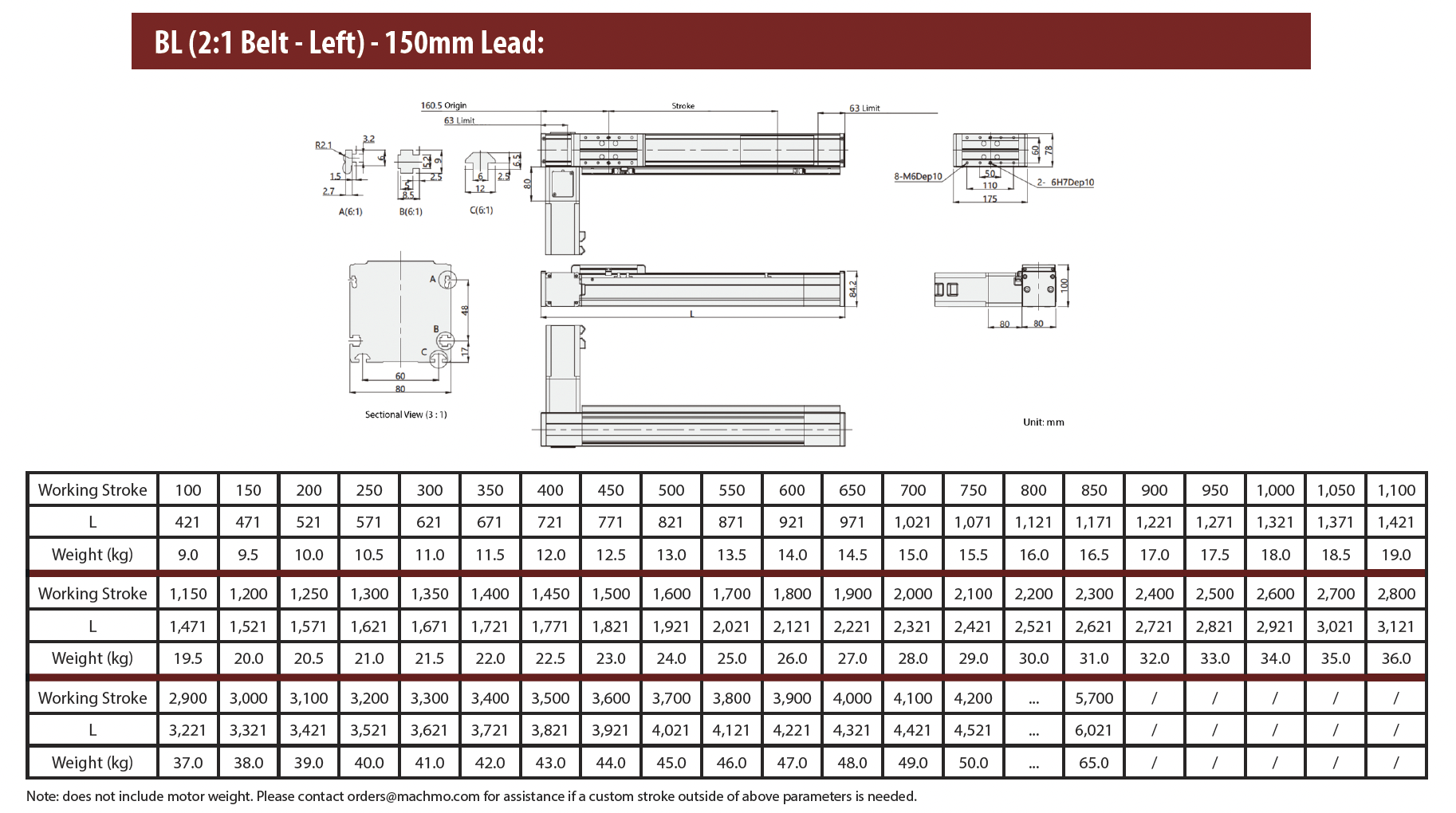

Dimensions

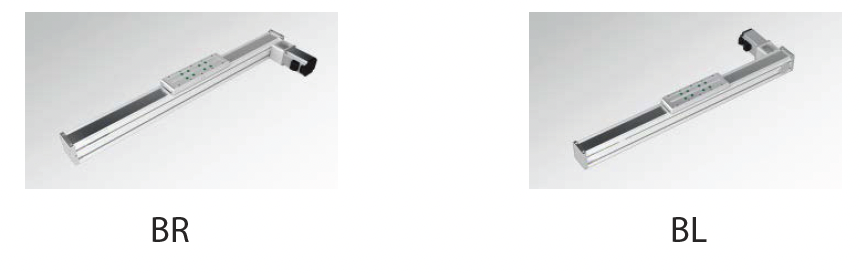

Motor Mount Location
Downloads
Catalog Download: MLB-MGB Belt Actuator Catalog.pdf
