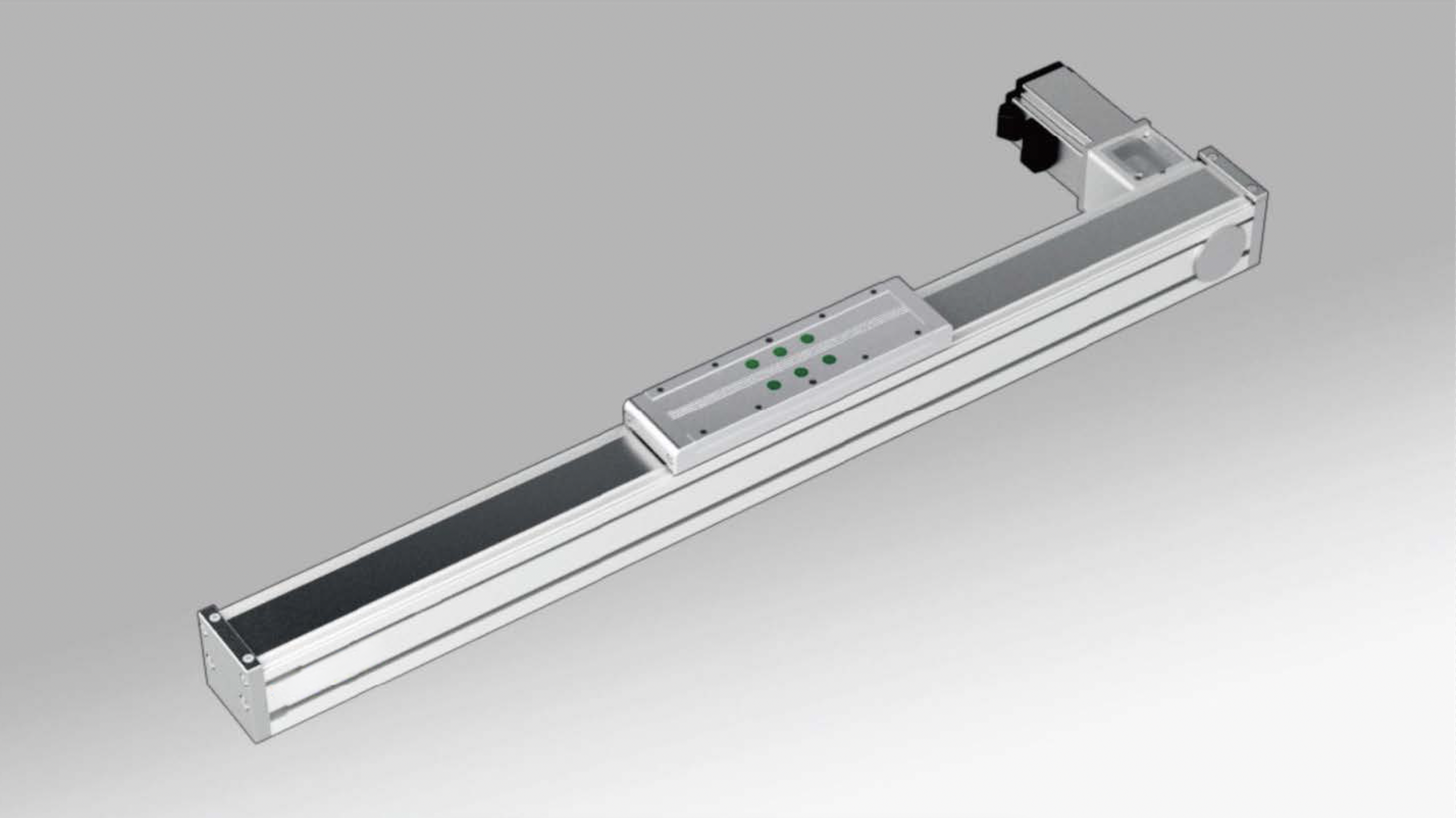

- Compatible Motor Size (AC): 400W
- Synchronous Wheel Diameter: 41.38mm
- Lead (mm): 130 / 65 / 43
- Horizontal Max Payload (kg): 5 / 20 / 35
- Vertical Max Payload (kg): 1.5 / 4 / 8
- Repeatability: ± 0.05mm
- Max Stroke: 5,700mm

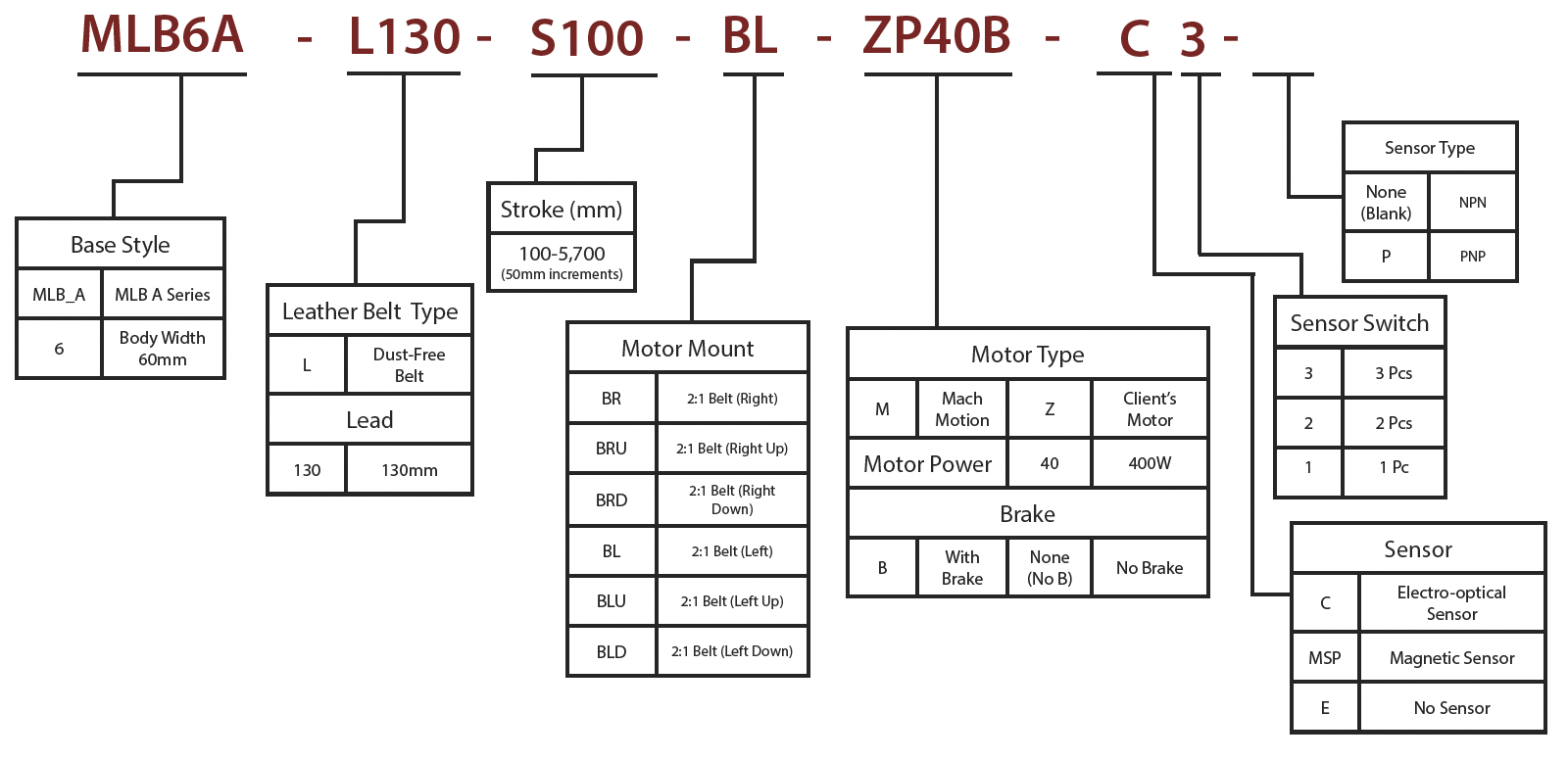

Part Number Configurator
Technical Specifications
| Motor Power (W) | 400W | |||
| Drive Type | Timing Belt | |||
| Repeatability (mm) | ±0.05 | |||
| Reduction Ratio | None | 2:1 | 3:1 | |
| Lead (mm) | 130 | 65 | 43 | |
| Max. Speed (mm/sec) | 5,000 | 3,250 | 2,150 | |
| Maximum Payload (kg) | Horizontal | 5* | 20* | 35* |
| Vertical | 1.5* | 4* | 18* | |
| Rated Thrust (N) | 62 | 111 | 167 | |
| Linear Guide (mm) | 15x9.5 | |||
| Synchronous Wheel Diameter (mm) | 41.38 | |||
| Synchronous Belt Width (mm) | 25 | |||
| Synchronous Belt Tension (N) | 540 | |||
| Sensor | Electro-optical | Outside | EE-SX672 (NPN) | EE-SX672P (PNP) |
| Outside Guide | EE-SX674 (NPN) | EE-SX674P (PNP) | ||
| Magnetic | DS1-HN-020 | |||
*Notes:
1. When operating horizontally, it is recommended to keep Accelerated Velocity under 5m/sec^2; recommended Maximum Payload for operating vertically is 2m/sec^2.
2. Allowable Tension of Synchronous Belt is standard for PU (polyurethane) + high-tensile steel wire belt.

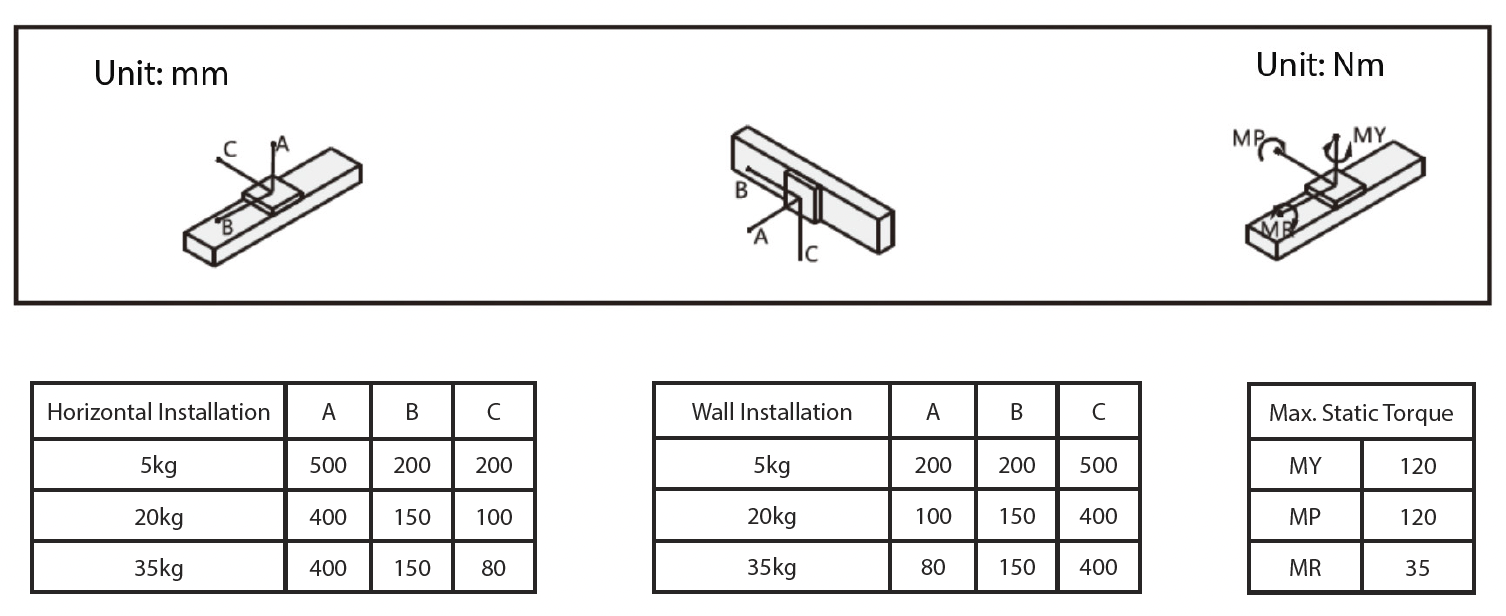

Maximum Static Torque
Maximum Static Torque

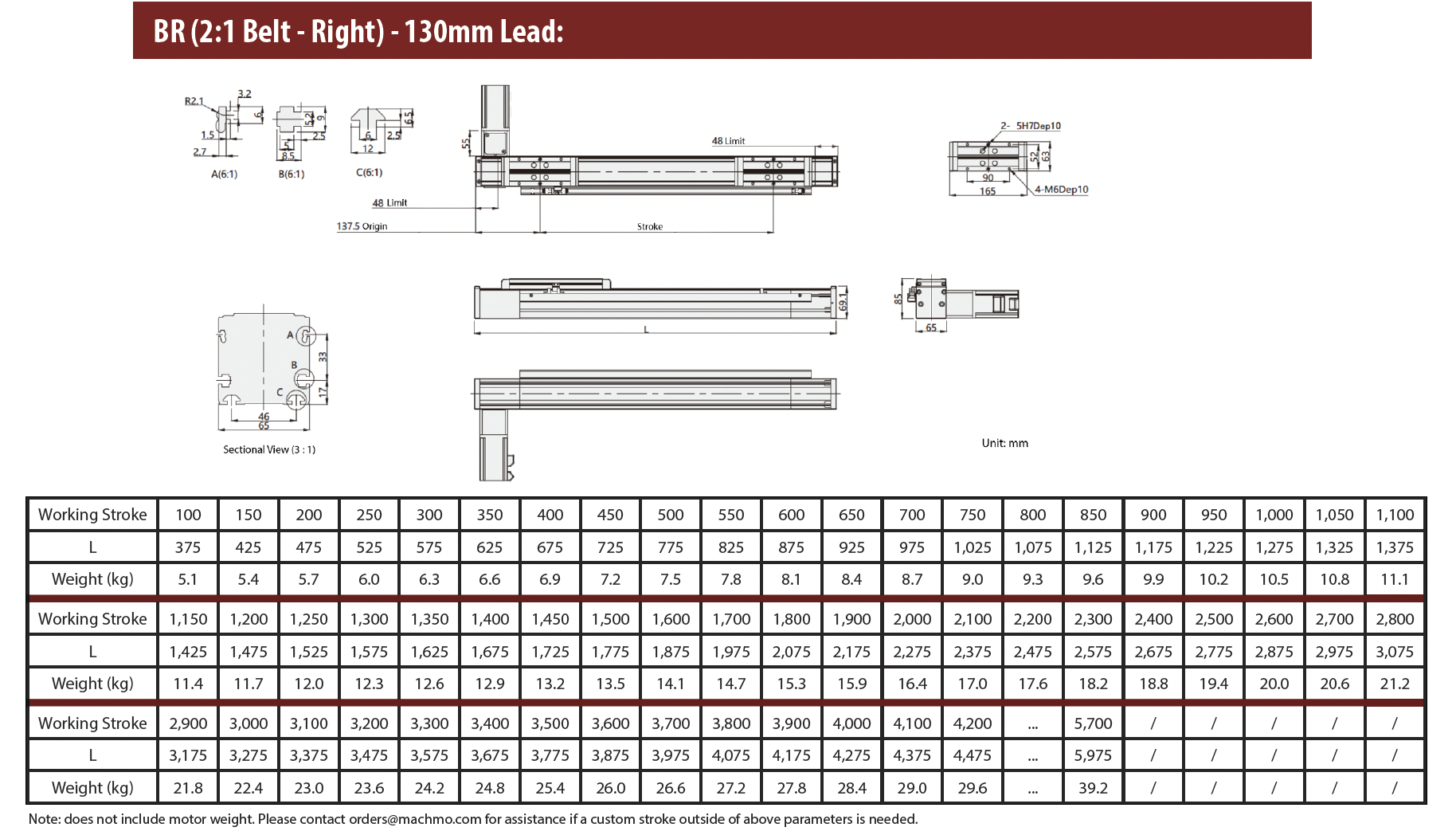

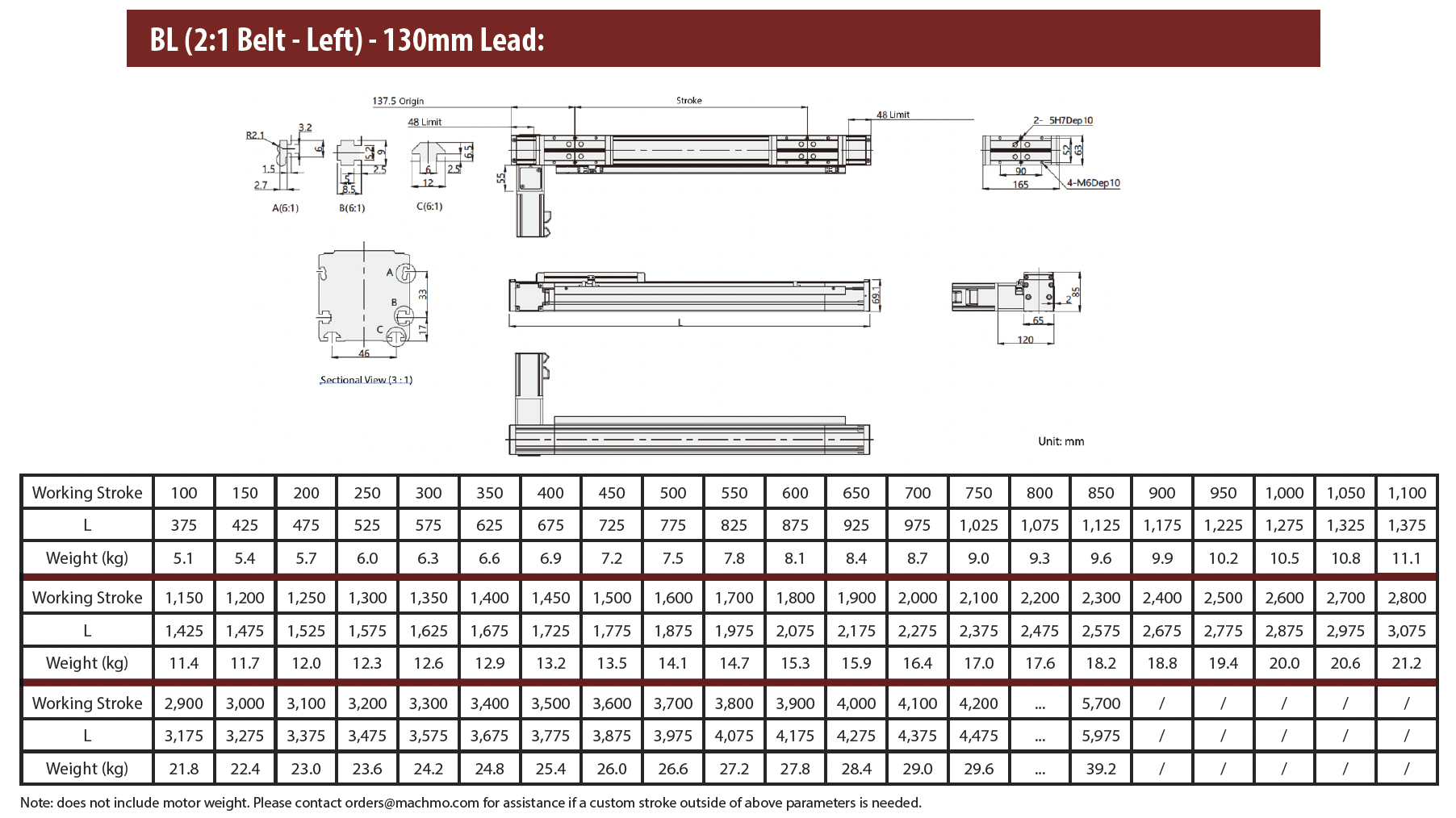

Dimensions

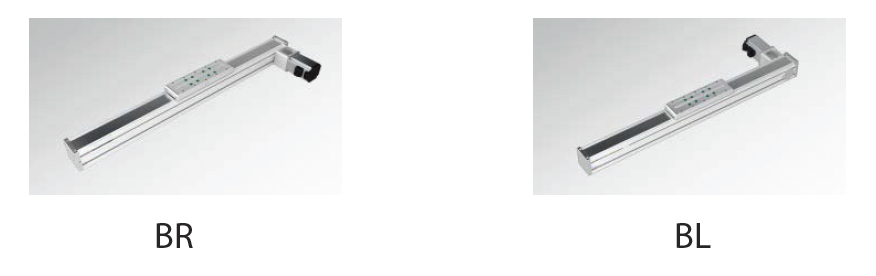

Motor Mount Location
Downloads
Catalog Download: MLB-MGB Belt Actuator Catalog.pdf
